TLR3A Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

RES 820 UOHM 1% 2W 2512

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Resistance	Number of Terminations [custom]	Tolerance	Composition	Features	Temperature Coefficient	Supplier Device Package	Package / Case
KOA Speer Electronics, Inc. TLR3AWDTEL820F	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 (6432 Metric)	2 W	-65 ░C	170 °C	AEC-Q200	0.82 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	150 ppm/°C	2512

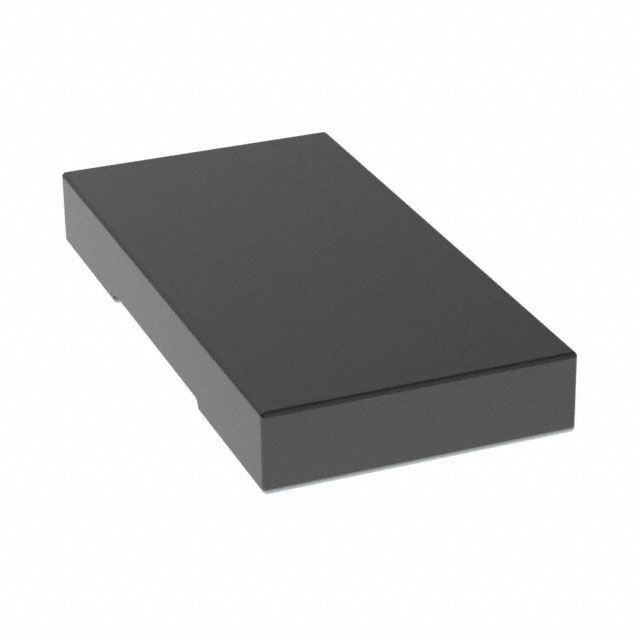

KOA Speer Electronics, Inc. TLR3ADTE3L00F	0.034 in	0.87 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 2512 (6432 Metric)	1 W	-65 ░C	170 °C	AEC-Q200	3 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	200 ppm/°C	2512	6332 Metric
KOA Speer Electronics, Inc. TLR3AWDTE3L00F	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 2512 (6432 Metric)	2 W	-65 ░C	170 °C	AEC-Q200	3 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	150 ppm/°C	2512	6332 Metric
KOA Speer Electronics, Inc. TLR3APDTE4L00F50	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 2512 (6432 Metric)	5 W	-65 ░C	170 °C	AEC-Q200	4 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	50 ppm/░C	2512	6332 Metric
KOA Speer Electronics, Inc. TLR3AWDTE5L00F75	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 2512 (6432 Metric)	2 W	-65 ░C	155 C	AEC-Q200	5 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	75 ppm/°C	2512	6332 Metric

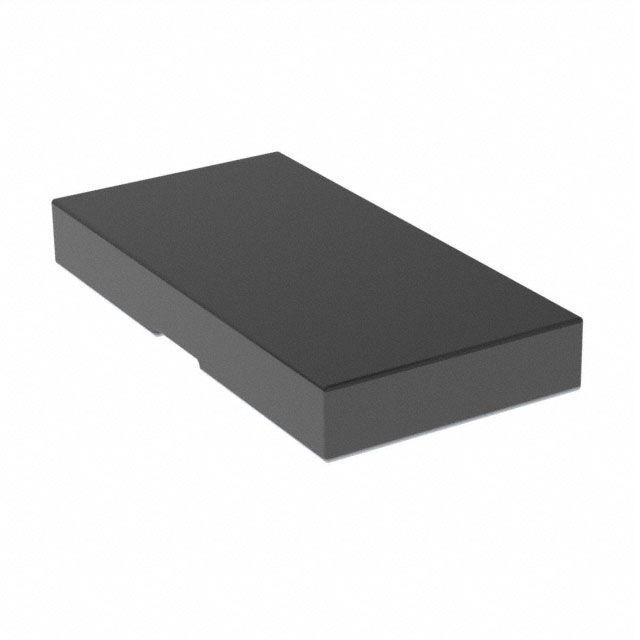

KOA Speer Electronics, Inc. TLR3APDTEL750F75	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 (6432 Metric)	5 W	-65 ░C	170 °C	AEC-Q200	750 µOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	75 ppm/°C	2512
KOA Speer Electronics, Inc. TLR3AWDTE6L00F	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 2512 (6432 Metric)	2 W	-65 ░C	170 °C	AEC-Q200	6 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	150 ppm/°C	2512	6332 Metric

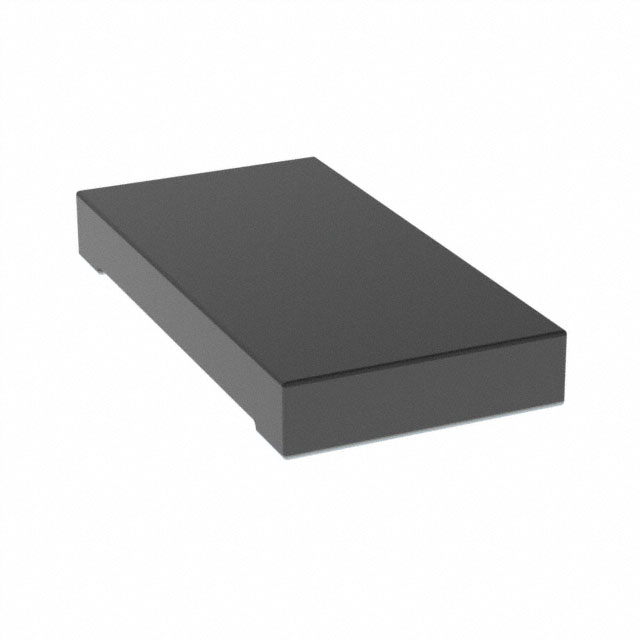

KOA Speer Electronics, Inc. TLR3APDTE9L00F50	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 (6432 Metric)	3 W	-65 ░C	170 °C	AEC-Q200	9 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	50 ppm/░C	2512

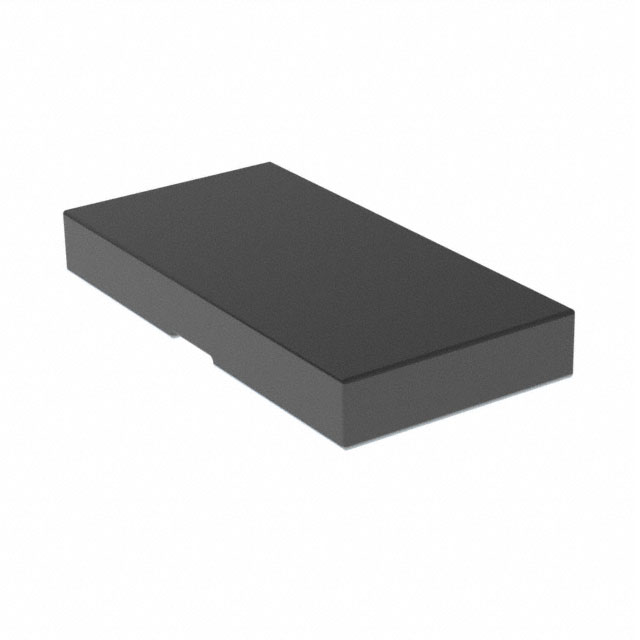

KOA Speer Electronics, Inc. TLR3AWDTEL500F75	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 (6432 Metric)	2 W	-65 ░C	155 C	AEC-Q200	0.5 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	75 ppm/°C	2512
KOA Speer Electronics, Inc. TLR3APDTE10L0F50	0.033 in	0.85 mm	6.35 mm	0.125 "	3.18 mm	0.25 in	2512 2512 (6432 Metric)	3 W	-65 ░C	170 °C	AEC-Q200	10 mOhms	2	1 %	Metal Element	Automotive AEC-Q200 Current Sense	50 ppm/░C	2512	6332 Metric
