SSB2-24 Series
Manufacturer: New Energy
Beta
⌘K

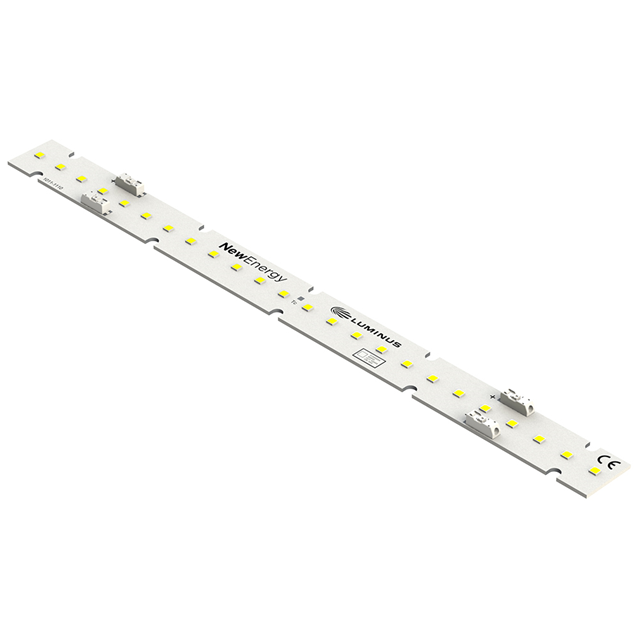

LED MOD SSB2 WHT LNR STRP 5000K
| Part | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Height [z] | Temperature - Test | CCT (K) | Configuration | Lens Type | Size / Dimension [x] | Size / Dimension [y] | Current - Test | Color | Type | CRI (Color Rendering Index) | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | 159 lm/W | 31.8 V | 480 mA | 6 mm | 25 °C | 5000 K | Linear Light Strip | Flat | 279.5 mm | 22 mm | 180 mA | Cool White | LED Module | 90 | 912 lm |
New Energy | 159 lm/W | 31.8 V | 480 mA | 6 mm | 25 °C | 4000 K | Linear Light Strip | Flat | 279.5 mm | 22 mm | 180 mA | Neutral White | LED Module | 90 | 912 lm |
