2390138 Series

Catalog

BOARD CONNECTOR, 1 ROW(S), MALE, SURFACE MOUNT TERMINAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Connector Type	Material Flammability Rating	Contact Finish - Mating	Voltage Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions Loaded	Mounting Type	Style	Current Rating (Amps)	Contact Finish Thickness - Mating	Fastening Type	Features	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Insulation Color	Shrouding	Termination	Contact Finish Thickness - Post	Contact Finish - Post	Number of Positions
TE Connectivity Raychem Cable Protection 3-2390138-4	-40 °C	105 ░C	Male Pin	Header	UL94 V-0	Gold	50 VAC	Rectangular	1.25 mm	0.049 in	Copper Alloy	All	Surface Mount	Board to Cable/Wire	1 A	Flash	Latch Holder	Solder Retention	4.05 mm	0.159 in	Liquid Crystal Polymer (LCP)	1	Natural	Shrouded - 4 Wall	Solder	Flash	Gold	14

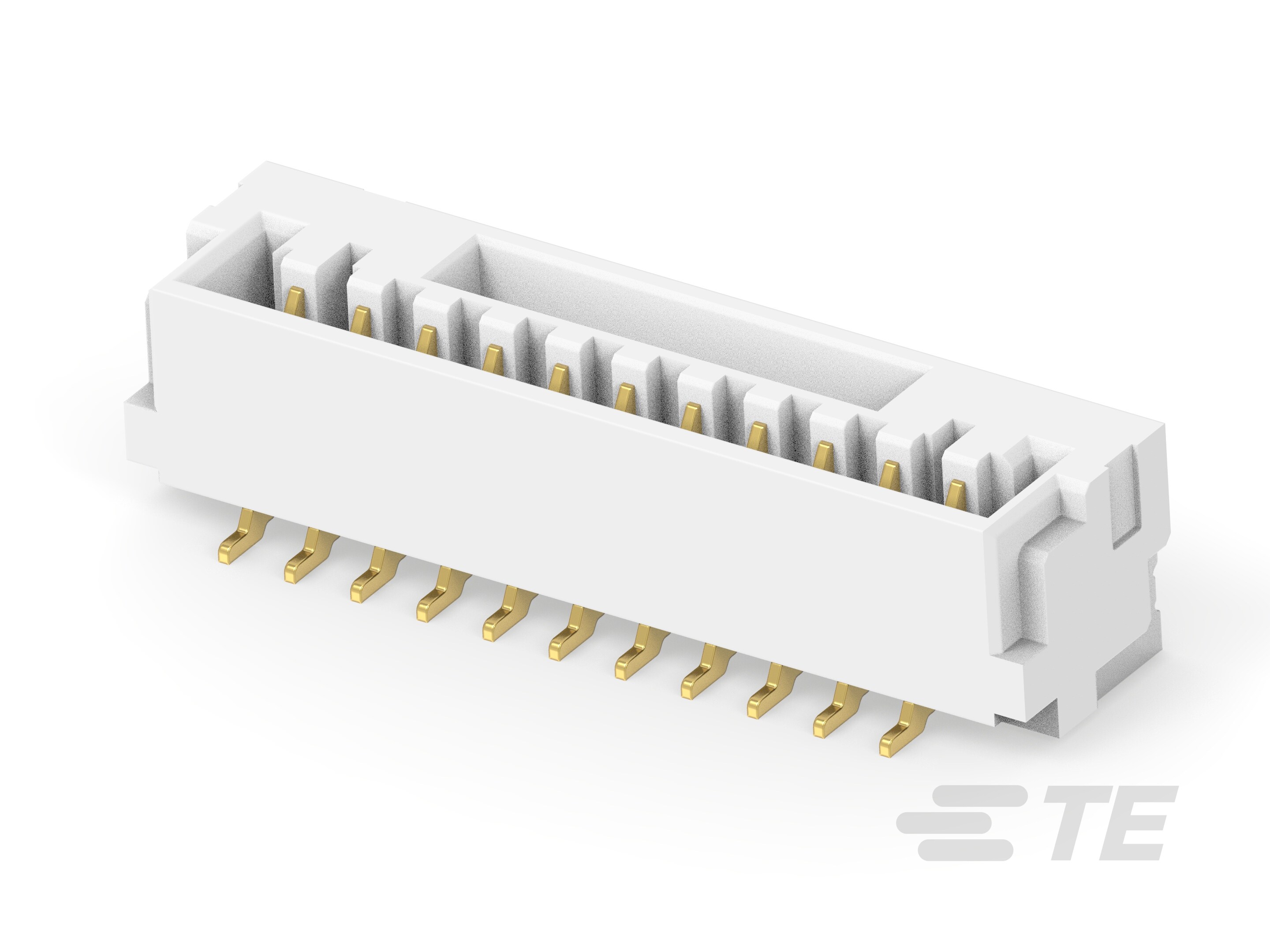

TE Connectivity Raychem Cable Protection 3-2390138-1	-40 °C	105 ░C	Male Pin	Header	UL94 V-0	Gold	50 VAC	Rectangular	1.25 mm	0.049 in	Copper Alloy	All	Surface Mount	Board to Cable/Wire	1 A	Flash	Latch Holder	Solder Retention	4.05 mm	0.159 in	Liquid Crystal Polymer (LCP)	1	Natural	Shrouded - 4 Wall	Solder	Flash	Gold	11
TE Connectivity Raychem Cable Protection 7-2390138-4	-40 °C	105 ░C	Male Pin	Header	UL94 V-0	Gold	50 VAC	Rectangular	1.25 mm	0.049 in	Copper Alloy	All	Surface Mount	Board to Cable/Wire	1 A	Flash	Latch Holder	Solder Retention	4.05 mm	0.159 in	Liquid Crystal Polymer (LCP)	1	Black	Shrouded - 4 Wall	Solder	Flash	Gold	14
