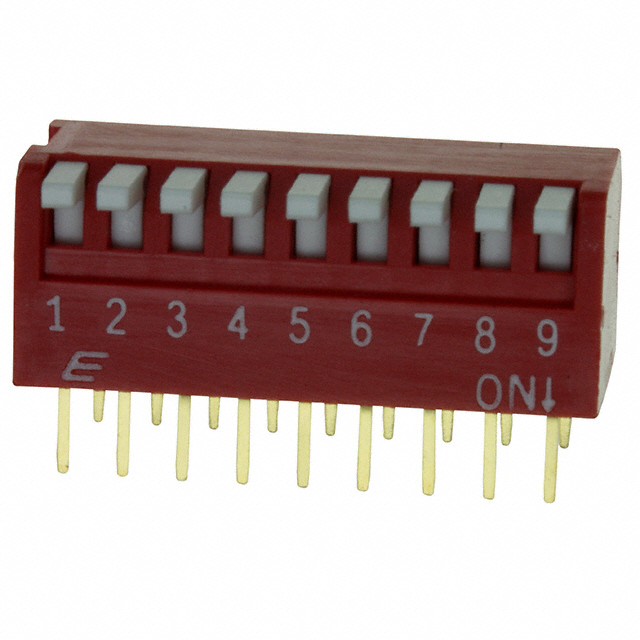

KAP1109 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Electrical Life | Mechanical Life | Length | Length | Body Material | Termination Style | Height Above Board | Height Above Board | Pitch | Pitch | Contact Material | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Positions | Voltage Rating | Mounting Type | Circuit | Washable | Current Rating (Amps) | Actuator Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 2000 Steps | 2000 Cycles | 24.41 mm | 0.961 in | Polybutylene Terephthalate (PBT) Glass Filled | PC Pin | 10.2 mm | 0.402 in | 2.54 mm | 0.1 " | Phosphor Bronze | Piano | 85 °C | -40 C | Gold | 9 | 24 VDC | Right Angle Through Hole | SPST | 25 mA | Raised |
