9058C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

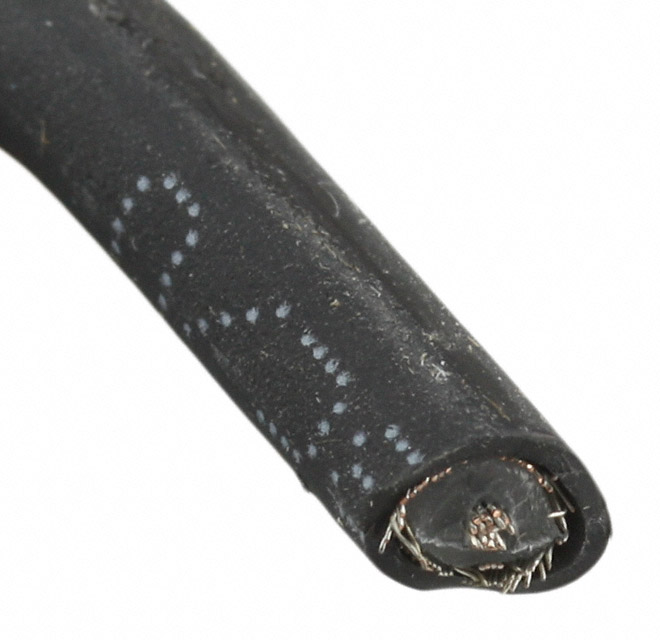

CABLE COAXIAL RG-58C 20AWG 1000'
| Part | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shield Material | Shield Coverage | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Shield Type | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Usage | Wire Gauge | Wire Gauge | Impedance | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 66 | Copper Tinned | 2.95 mm | 0.116 in | -20 ░C | 60 °C | Solid Polyethylene (PE) | Copper Tinned | 95 % | 304.8 m | 1000 ft | 19 | 33 AWG | Black | Braid | RG-58C | 0.195 " | 4.95 mm | Non Contaminating Poly-Vinyl Chloride (PVC) | Network | 0.48 mm² | 20 AWG | 50 Ohms | Coaxial |
 ALPHA WIRE | 304.8 m | 1000 ft | 19 | 33 AWG | Black | Braid | RG-58C | 0.195 " | 4.95 mm | Non Contaminating Poly-Vinyl Chloride (PVC) | Network | 0.48 mm² | 20 AWG | 50 Ohms | Coaxial |
