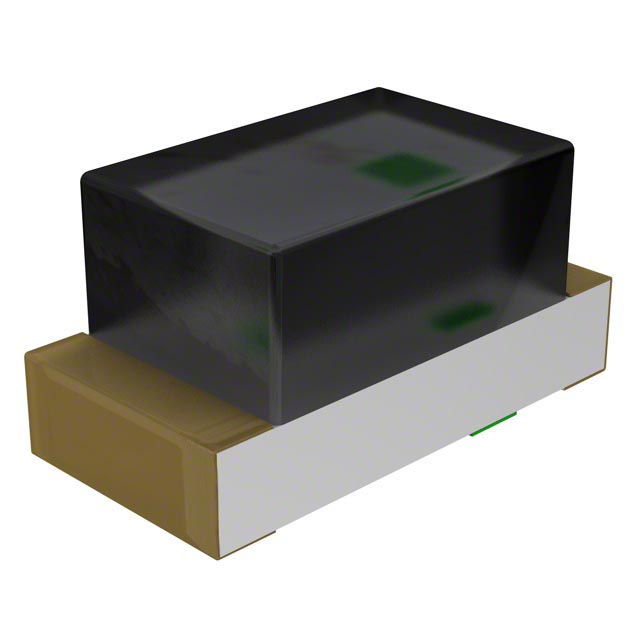

PT19-21 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K
NO PHOTOTRANSISTOR CHIP SILICON 940NM 2-PIN SMD
| Part | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Power - Max [Max] | Current - Dark (Id) (Max) [Max] | Package / Case | Package / Case | Mounting Type | Wavelength | Voltage - Collector Emitter Breakdown (Max) [Max] | Current - Collector (Ic) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | Top View | 85 °C | -25 °C | 75 mW | 100 nA | 1608 Metric | 0603 | Surface Mount | 940 nm | 30 V | 20 mA |
 Everlight Electronics Co Ltd | Top View | 85 °C | -25 °C | 75 mW | 100 nA | 1608 Metric | 0603 | Surface Mount | 940 nm | 30 V | 20 mA |
