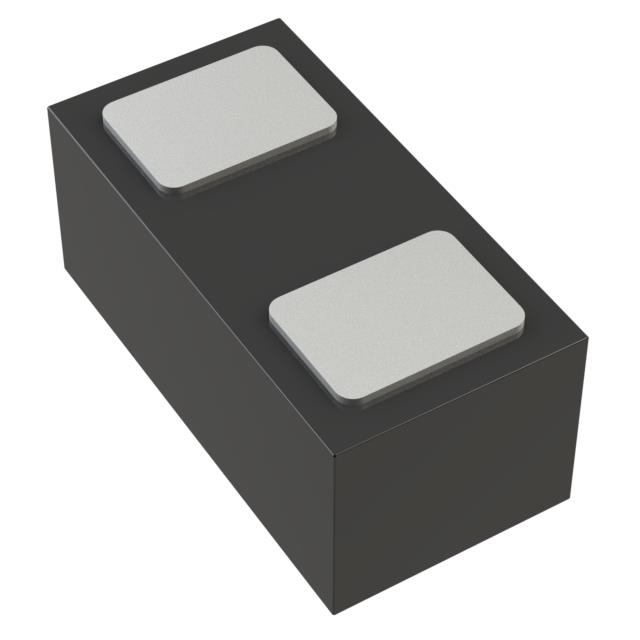

UCLAMP3311 Series
Manufacturer: Semtech Corporation
Beta
⌘K
ESD PROTECTION DEVICE, TVS, 18 V, SLP1006P2, 2 PINS, 3.3 V, 90 W
| Part | Power Line Protection | Package / Case | Voltage - Reverse Standoff (Typ) | Mounting Type | Bidirectional Channels [custom] | Power - Peak Pulse | Capacitance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Type | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Voltage - Clamping (Max) @ Ipp [Max] | Supplier Device Package | Qualification | Grade | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 0402 (1006 Metric) | 3.3 V | Surface Mount | 1 | 90 W | 12 pF | -40 °C | 85 °C | General Purpose | Zener | 5 A | 3.5 V | 18 V | |||||
 Semtech Corporation | 0402 (1006 Metric) | 3.3 V | Surface Mount | 1 | 40 W | 1 MHz 5 pF | -40 °C | 85 °C | General Purpose | Zener | 5 A | 3.5 V | 8 V | SLP1006P2T | ||||
 Semtech Corporation | 0402 (1006 Metric) | 3.3 V | Surface Mount | 1 | 90 W | 12 pF | -40 °C | 85 °C | Ethernet | Zener | 5 A | 3.5 V | 18 V | AEC-Q100 | Automotive | |||
 Semtech Corporation | 0201 | 3.3 V | Surface Mount | 1 | 30 W | 6 pF | -40 °C | 85 °C | General Purpose | Zener | 4 A | 3.65 V | 7.5 V | SLP0603P2X3 | 0603 Metric |
