33458 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

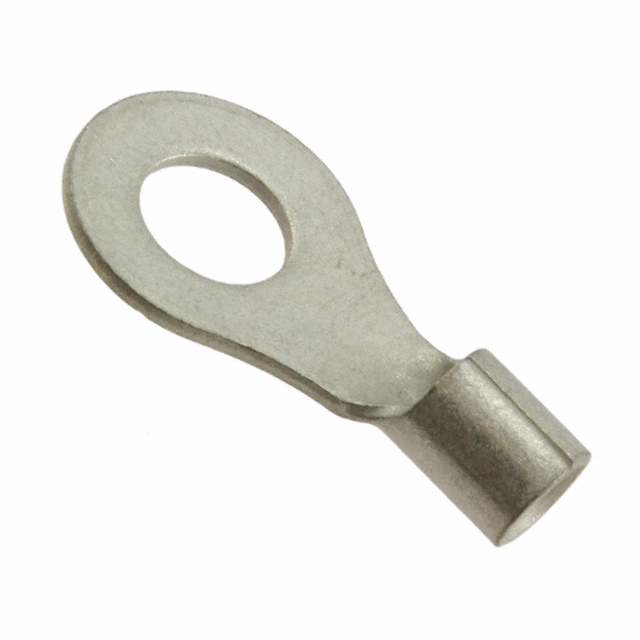

CONN RING CIRC 10-12AWG #1/4
| Part | Features | Insulation | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Terminal Type | Termination | Stud/Tab Size | Mounting Type | Thickness | Thickness | Contact Material | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brazed Seam Serrated Termination | Non-Insulated | 13.49 mm | 0.531 " | Circular | Crimp | 0.25 Stud | Free Hanging (In-Line) | 0.99 mm | 0.039 in | Copper | Tin | 12 AWG | 10 AWG | 25.5 mm | 1.004 " |
