L722RA Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

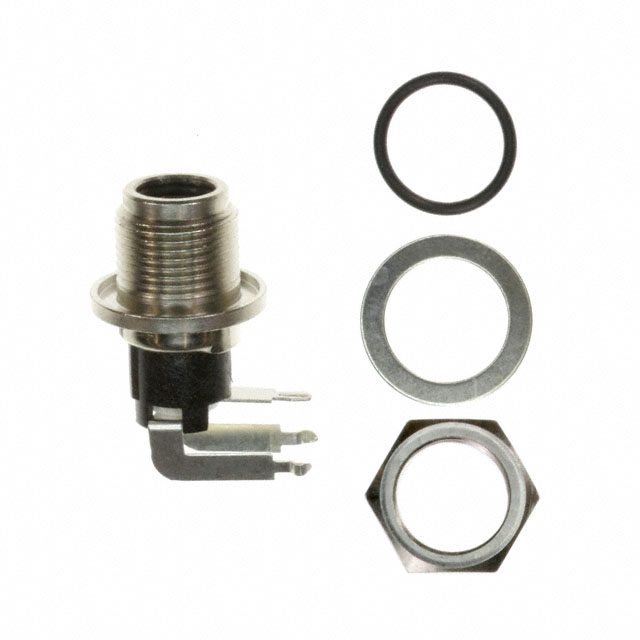

CONN PWR JACK 2X5.5MM SOLDER
| Part | Contact Material - Plating [custom] | Shielding | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Body Color | Ingress Protection | Contact Material | Mounting Type | Features | Connector Type | Gender | Termination | Mounting Feature | Housing Material | Current Rating (Amps) | Voltage - Rated | Actual Diameter | Actual Diameter | Thread Size | Number of Positions/Contacts | Includes | Body Material | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Silver | Unshielded | 0.079 in 0.217 " | 2 mm 5.5 mm | Black Silver | IP68 | Copper Alloy | Panel Mount Right Angle Through Hole | Mounting Hardware Thread Lock | Jack | Male | Solder | Bulkhead - Front Side Nut | Thermoplastic | 5 A | 30 V | 0.079 " | 2 mm | 7/16"-32 | 2 Conductors 3 Conductors | 1 Connector 1 Nut 1 O-Ring 1 Washer | Copper Alloy | Normally Closed Single Switch |
