7838A Series
Manufacturer: Belden Inc.
Beta
⌘K

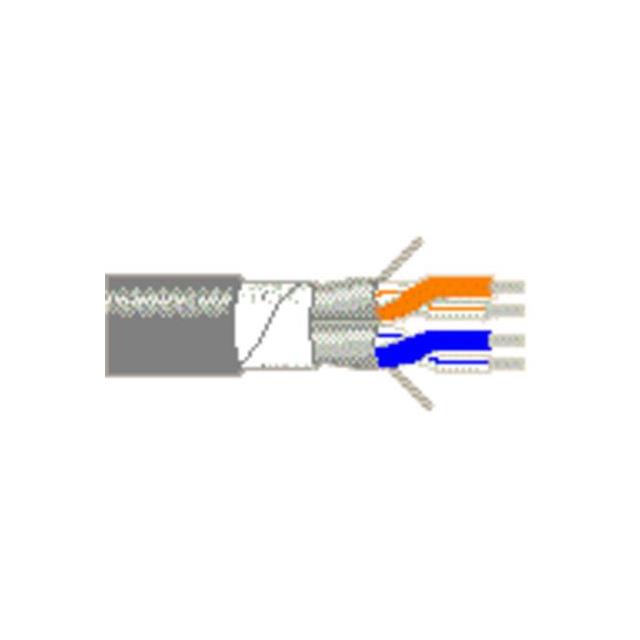

2 FS PR #22 PP/FPE PVC PARA
| Part | Shield Coverage | Shield Material | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Voltage | Jacket Color | Cable Type | Jacket (Insulation) Material | Features | Shield Type | Usage | Wire Gauge | Conductor Material | Number of Conductors | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum Polyester | Solid | 0.202 in | 5.13 mm | Foam Polyethylene (FPE) | 300 VDC | Chrome | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire | Foil | Network | 22 AWG | Copper Tinned | 4 | ||||
 Belden Inc. | 100 % | Aluminum Polyester | Solid | 0.202 in | 5.13 mm | Foam Polyethylene (FPE) | 300 VDC | Chrome | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire | Foil | Network | 22 AWG | Copper Tinned | 4 | 2000 ft | 609.6 m | ||
Belden Inc. | 100 % | Aluminum Polyester | Solid | 0.202 in | 5.13 mm | Foam Polyethylene (FPE) | 300 VDC | Chrome | Multi-Pair | Poly-Vinyl Chloride (PVC) | Drain Wire | Foil | Network | 22 AWG | Copper Tinned | 4 | 304.8 m | 1000 ft |
