RES20 Series

Catalog

ROTARY ENCODER OPTICAL 25PPR

Part	Pulses per Revolution	Encoder Type	Actuator Type	Mounting Type	Output Type	Termination Style	Orientation

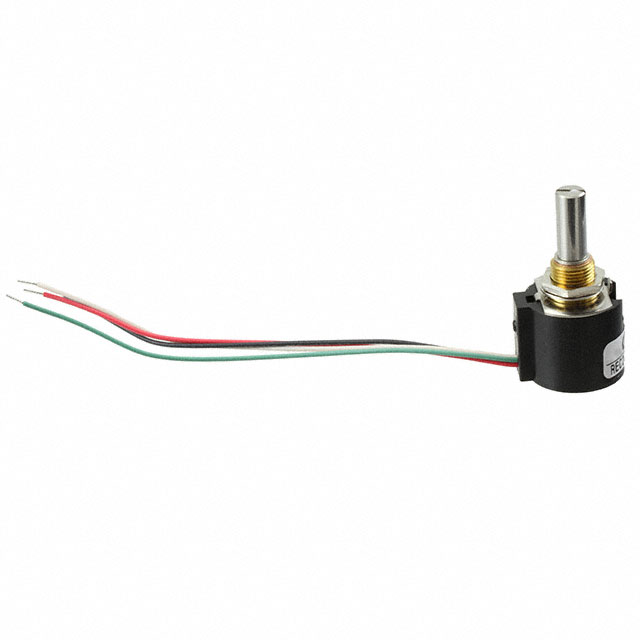

Nidec Components Corporation RES20B-25-201-1	25	Optical	Shaft	Panel Mount	Quadrature (Incremental)	Wire Leads	User Selectable

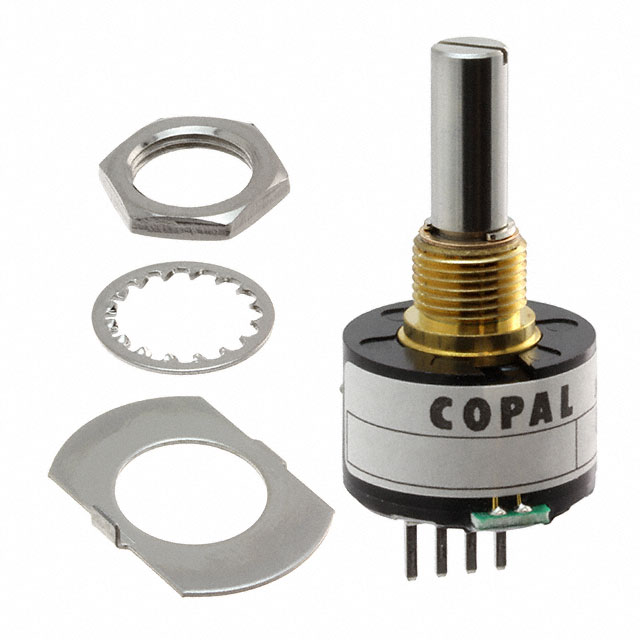

Nidec Components Corporation RES20-50-200	50	Optical	Shaft	Panel PCB Through Hole	Quadrature (Incremental)	PC Pin	User Selectable
Nidec Components Corporation RES20-50-200-Z	50	Optical	Shaft	Panel Mount	Quadrature (Incremental)	PC Pin	User Selectable
Nidec Components Corporation RES20D-25-201-1	25	Optical	Shaft	Chassis Mount	Quadrature with Index (Incremental)	Connector	User Selectable
Nidec Components Corporation RES20-100-200	100	Optical	Shaft	Panel Mount	Quadrature (Incremental)	Wire Leads	User Selectable
