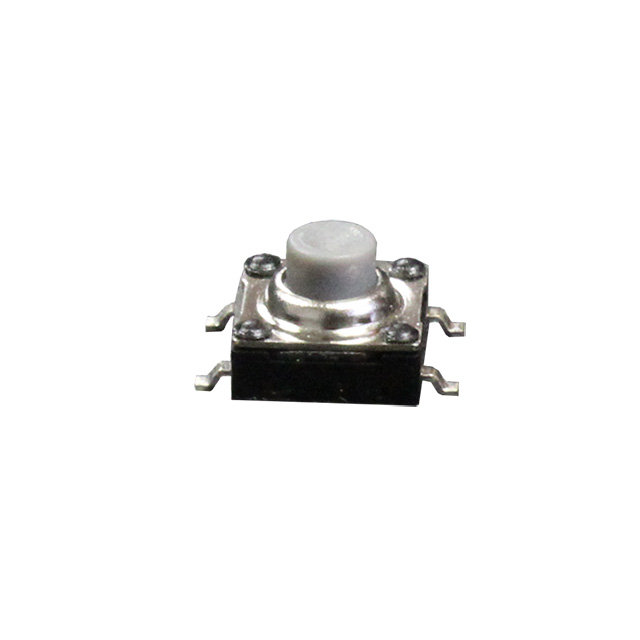

STS5.0 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 48V

Part	Actuator Material	Switch Travel	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Switch Function	Circuit	Illumination	Operating Force	Outline [y]	Outline [x]	Contact Rating @ Voltage	Mounting Type	Actuator Height off PCB, Vertical [z]	Termination Style	Actuator Type

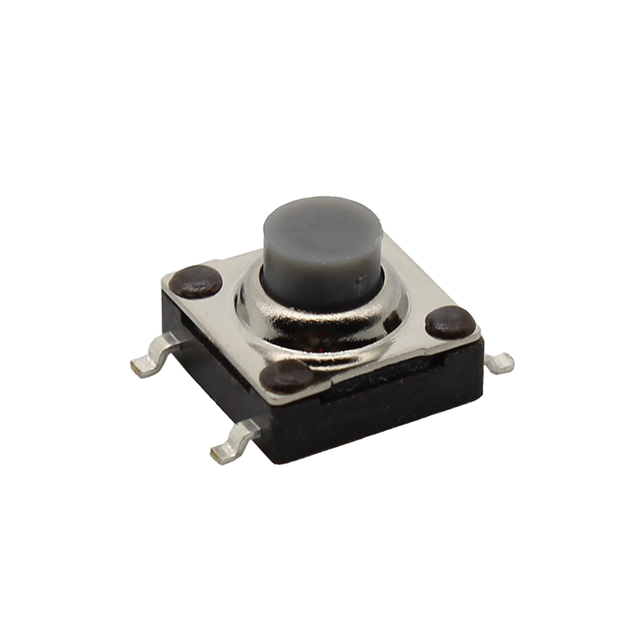

CIT Relay and Switch STS5.0LF200QG	Polyamide (PA6T) Nylon 6T	0.45 mm	Top Actuated	85 °C	-40 C	IP67 - Dust Tight Waterproof	Off-Mom	SPST-NO	Non-Illuminated	0.2 kgf	7.2 mm	7.2 mm	0.05 A 48 VDC	Surface Mount	5 mm	Gull Wing	Standard
CIT Relay and Switch STS5.0LF260QG	Polyamide (PA6T) Nylon 6T	0.45 mm	Top Actuated	85 °C	-40 C	IP67 - Dust Tight Waterproof	Off-Mom	SPST-NO	Non-Illuminated	260 gf	7.2 mm	7.2 mm	0.05 A 48 VDC	Surface Mount	5 mm	Gull Wing	Standard
