1060875 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

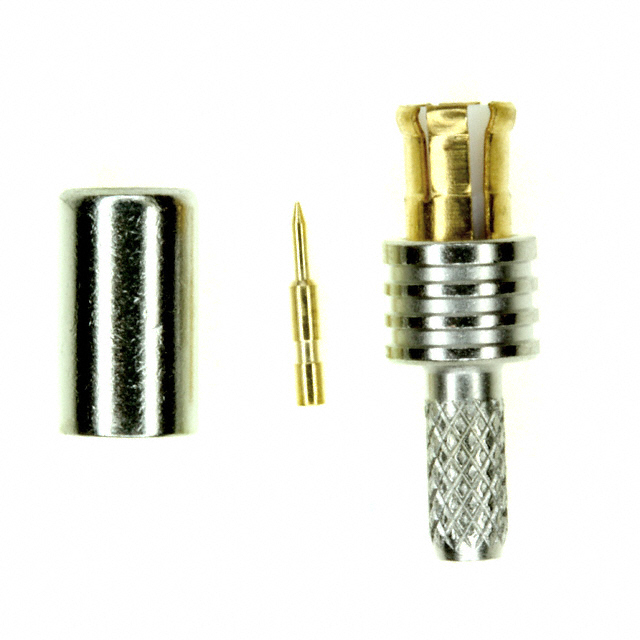

CONN MCX PLUG STR 50 OHM CRIMP
| Part | Dielectric Material | Body Material | Includes | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Insertion Loss | Body Finish | Center Contact Plating | Voltage Rating | Frequency - Max [Max] | Mounting Type | Number of Ports | Connector Type | Center Contact Material | Shield Termination | Housing Color | Contact Termination | Cable Group | Connector Style | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | 1 Connector 1 Contact 1 Ferrule | -65 ░C | 165 °C | 500 | 0.1 dB | Nickel | Gold | 335 V | 6000 MHz | Free Hanging (In-Line) | 1 | Plug Male Pin | Brass | Crimp | Silver | Crimp | RD-316 | MCX | Snap-On | 50 Ohms |
