LXM2 Series

Manufacturer: Lumileds

Catalog

SINGLE COLOR LEDS LUXEON REBEL COLOR, RED-ORANGE 610-620NM

Part	Thermal Resistance of Package	Temperature - Test	Color	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Mounting Type	Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Current - Max [Max]	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Wavelength

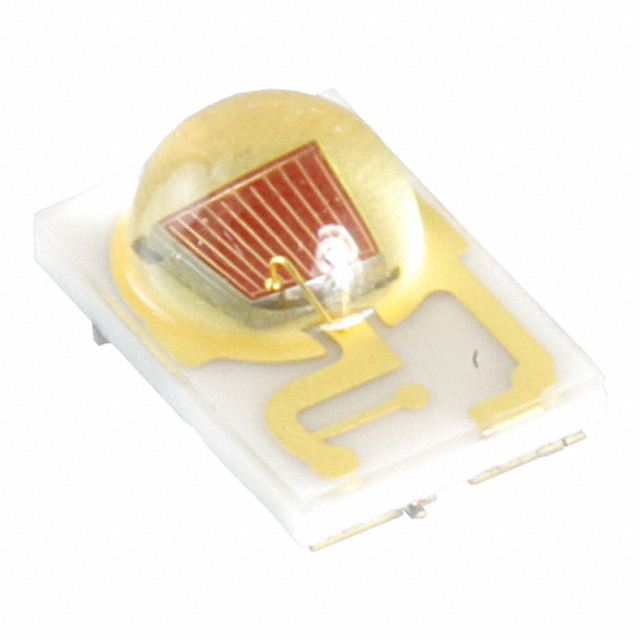

Lumileds LXM2-PH01-0060	8 °C/W	25 °C	Red-Orange	SMD	2.1 V	67 lm	Surface Mount	350 mA	0.177 in	4.49 mm	3.05 mm	0.12 in	1812 (4532 Metric)	700 mA	91 lm/W	2.1 mm	0.083 in	125 °	617 nm
Lumileds LXM2-PD01-0060		25 °C	Red		2.1 V	62 lm	Surface Mount	350 mA	0.177 in	4.49 mm	3.05 mm	0.12 in	1812 (4532 Metric)	700 mA	84 lm/W	2.1 mm	0.083 in	125 °	633 nm

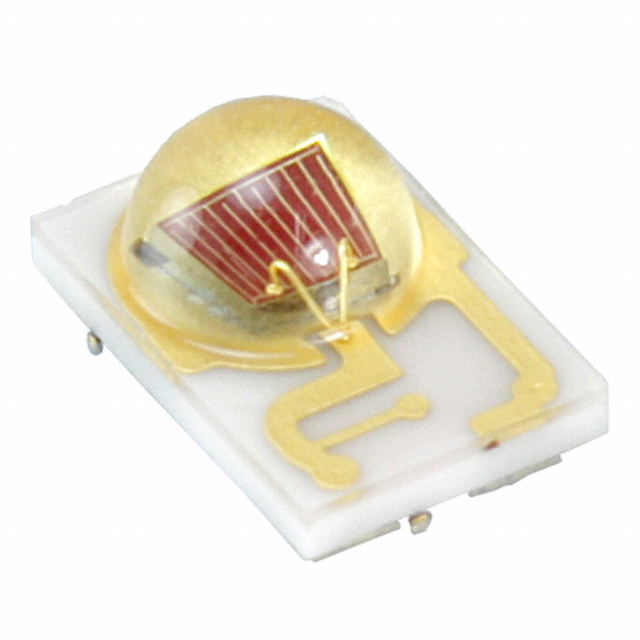

Lumileds LXM2-PD01-0040	8 °C/W	25 °C	Red	SMD	2.1 V	48 lm	Surface Mount	350 mA	0.177 in	4.49 mm	3.05 mm	0.12 in	1812 (4532 Metric)	700 mA	65 lm/W	2.1 mm	0.083 in	125 °	627 nm
Lumileds LXM2-PD01-0050	8 °C/W	25 °C	Red	SMD	2.1 V	53 lm	Surface Mount	350 mA	0.177 in	4.49 mm	3.05 mm	0.12 in	1812 (4532 Metric)	700 mA	72 lm/W	2.1 mm	0.083 in	125 °	627 nm
Lumileds LXM2-PH01-0070	8 °C/W	25 °C	Red-Orange	SMD	2.1 V	72 lm	Surface Mount	350 mA	0.177 in	4.49 mm	3.05 mm	0.12 in	1812 (4532 Metric)	700 mA	98 lm/W	2.1 mm	0.083 in	125 °	617 nm
