333-054 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 54 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Gender	Read Out	Card Type	Contact Finish	Number of Positions/Bay/Row	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Number of Positions	Pitch	Pitch	Number of Rows [custom]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 333-054-541-202	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Through Hole	-40 C	105 ░C	Green	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Wire Wrap	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin

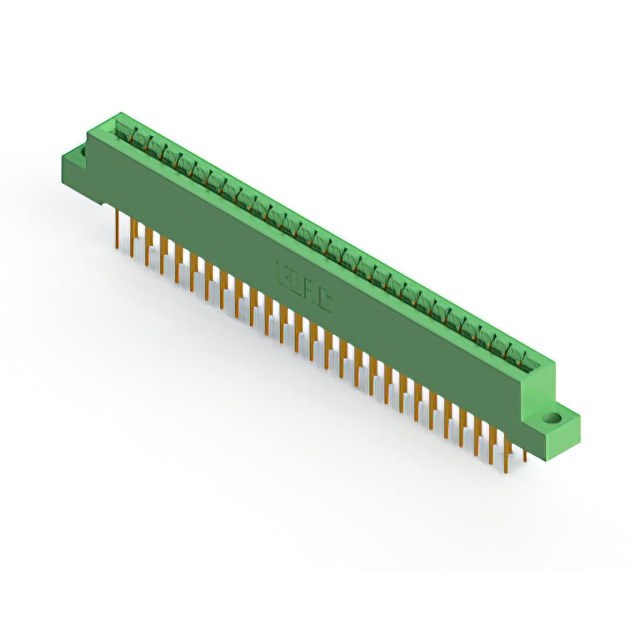

EDAC Inc. 333-054-541-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Through Hole	-40 C	105 ░C	Green	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Wire Wrap	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin
EDAC Inc. 333-054-500-804	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Through Hole	-40 C	105 ░C	Green		3.96 mm	0.156 "	Solder Eyelet(s)	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin
EDAC Inc. 333-054-540-804	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Through Hole	-40 C	105 ░C	Green		3.96 mm	0.156 "	Wire Wrap	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin

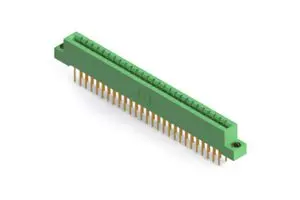

EDAC Inc. 333-054-542-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Through Hole	-40 C	105 ░C	Green	Flush Mount M3 Threaded Insert Top Opening			Wire Wrap	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin
EDAC Inc. 333-054-555-803	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Board Edge Straddle Mount	-40 C	105 ░C	Green	Floating Bobbin Top Mount Opening	2.95 mm	0.116 "	Solder Eyelet(s)	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin	Card Extender
EDAC Inc. 333-054-541-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Through Hole	-40 C	105 ░C	Green	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Wire Wrap	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin
EDAC Inc. 333-054-555-812	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Board Edge Straddle Mount	-40 C	105 ░C	Green	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Solder Eyelet(s)	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin	Card Extender
EDAC Inc. 333-054-555-804	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Board Edge Straddle Mount	-40 C	105 ░C	Green		3.96 mm	0.156 "	Solder Eyelet(s)	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin	Card Extender

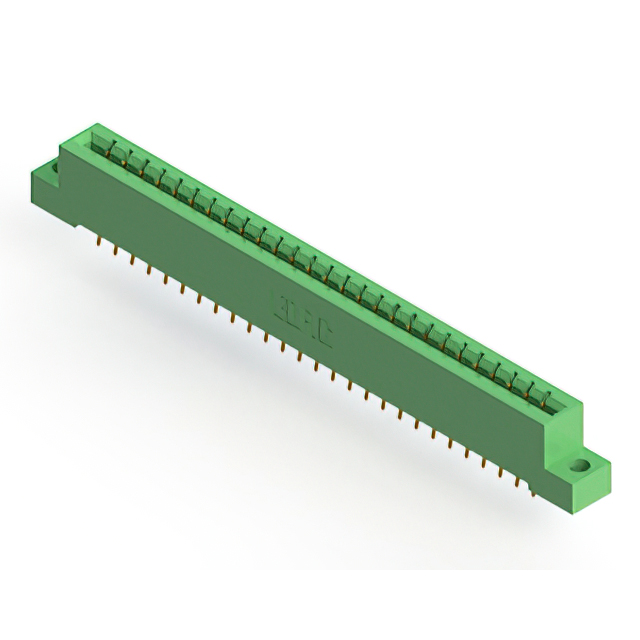

EDAC Inc. 333-054-556-204	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Female	Dual	Non Specified - Dual Edge	Gold	27	Board Edge Straddle Mount	-40 C	105 ░C	Green	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Solder	54	3.96 mm	0.156 in	2	Cantilever	0.25 Ám	10 Áin	Card Extender
