746-010 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 10POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Read Out	Number of Rows [custom]	Card Type	Color	Number of Positions	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch	Pitch	Termination	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows

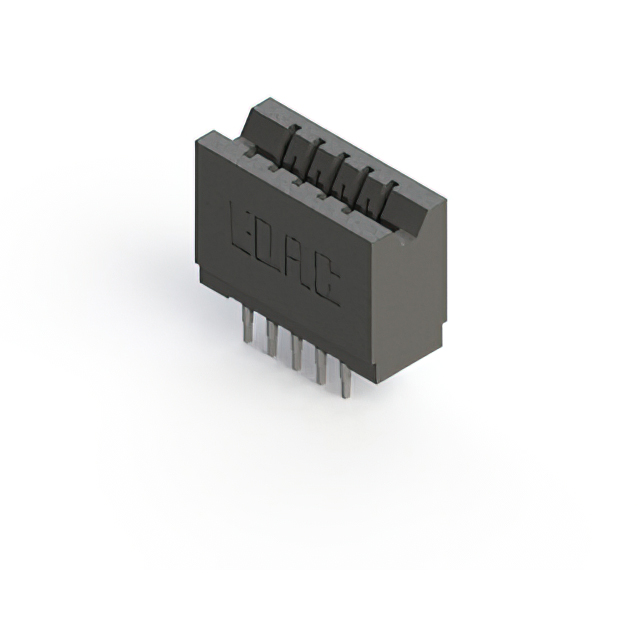

EDAC Inc. 746-010-553-206	Polyester Thermoplastic	2	Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Dual	2	Non Specified - Dual Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit Wire Wrap	5	0.07 in 1.78 mm	0.054 in 1.37 mm

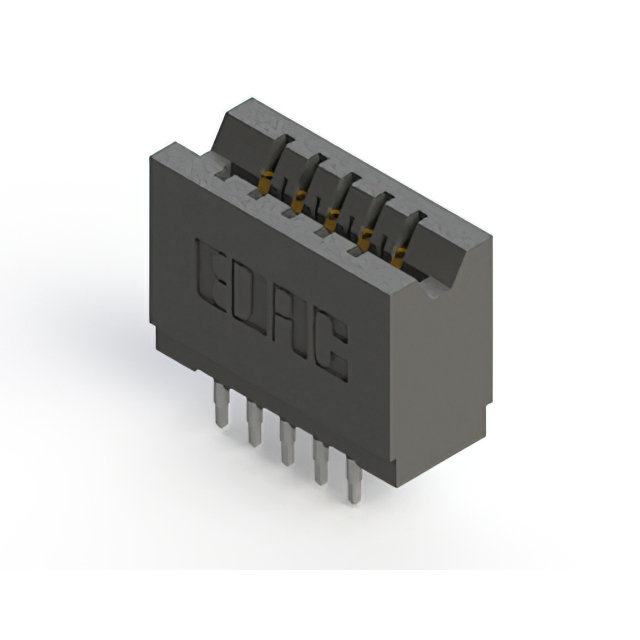

EDAC Inc. 746-010-560-206	Polyester Thermoplastic	2	Gold	Copper Alloy	-40 C	105 ░C	Cantilever Make Before Break	Dual	2	Non Specified - Dual Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	5	0.07 in 1.78 mm	0.054 in 1.37 mm

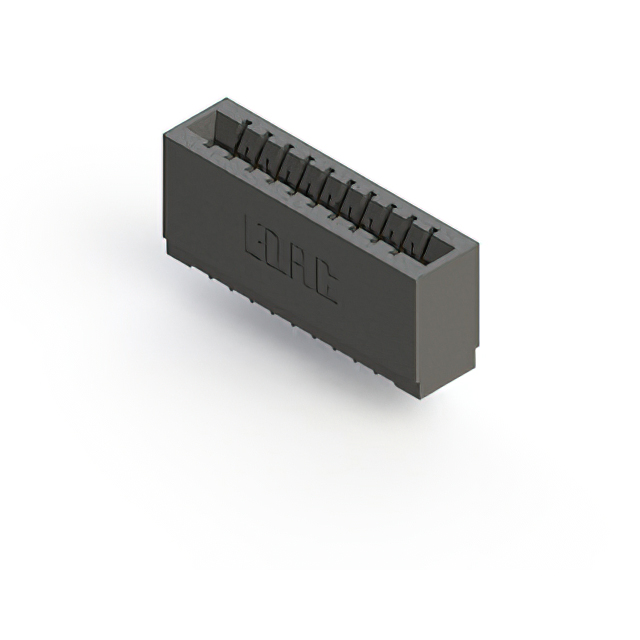

EDAC Inc. 746-010-541-501	Polyester Thermoplastic		Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Single		Non Specified - Single Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit Wire Wrap	10	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

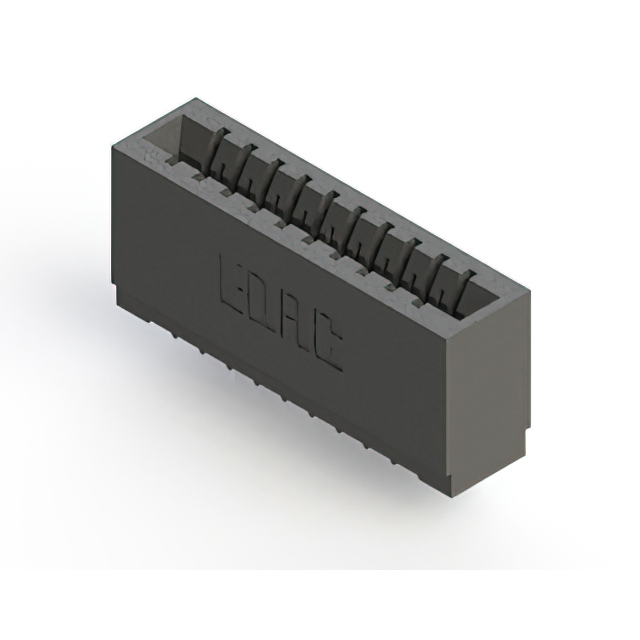

EDAC Inc. 746-010-520-101	Polyester Thermoplastic		Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Single		Non Specified - Single Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	10	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

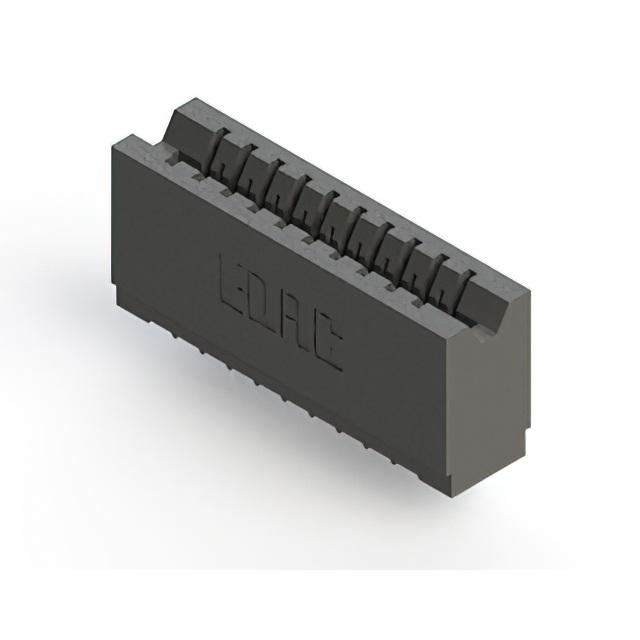

EDAC Inc. 746-010-520-106	Polyester Thermoplastic		Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Single		Non Specified - Single Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	10	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 746-010-525-501	Polyester Thermoplastic		Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Single		Non Specified - Single Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	10	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

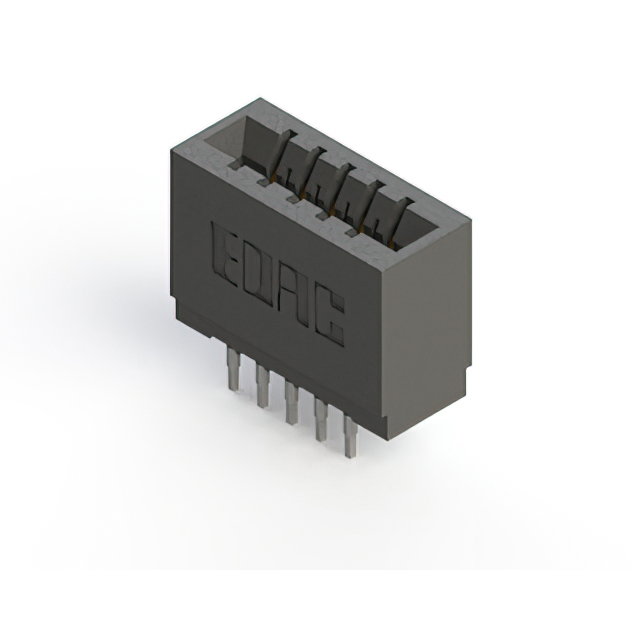

EDAC Inc. 746-010-527-201	Polyester Thermoplastic	2	Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Dual	2	Non Specified - Dual Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	5	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-010-527-506	Polyester Thermoplastic		Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Single		Non Specified - Single Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	10	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

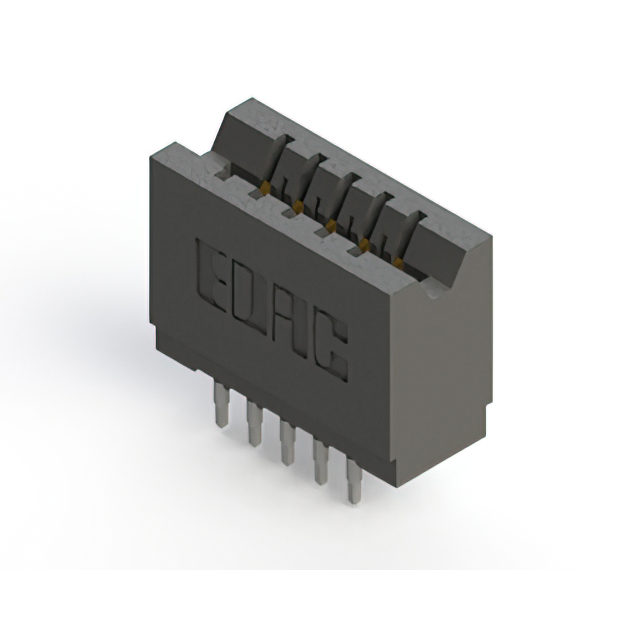

EDAC Inc. 746-010-525-206	Polyester Thermoplastic	2	Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Dual	2	Non Specified - Dual Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit	5	0.07 in 1.78 mm	0.054 in 1.37 mm

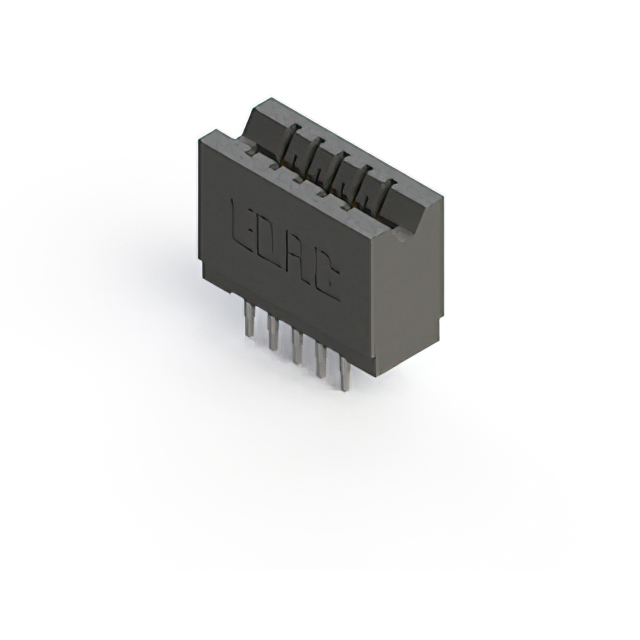

EDAC Inc. 746-010-541-606	Polyester Thermoplastic	2	Gold	Copper Alloy	-40 C	105 ░C	Cantilever	Dual	2	Non Specified - Dual Edge	Black	10	Female	30 Áin	0.76 Ám	Through Hole	3.18 mm	0.125 in	Press-Fit Wire Wrap	5	0.07 in 1.78 mm	0.054 in 1.37 mm
