XW5G-P2 Series

Catalog

DIN RAIL TERMINAL BLOCKS GRD TB PUSHIN 2.5MM 1:1 2TIER

Part	Material Flammability Rating	Material - Insulation	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Stripping Length	Voltage - UL	Type	Number of Levels	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Terminal - Width [y]	Termination Style	Voltage - IEC	Number of Positions	Color

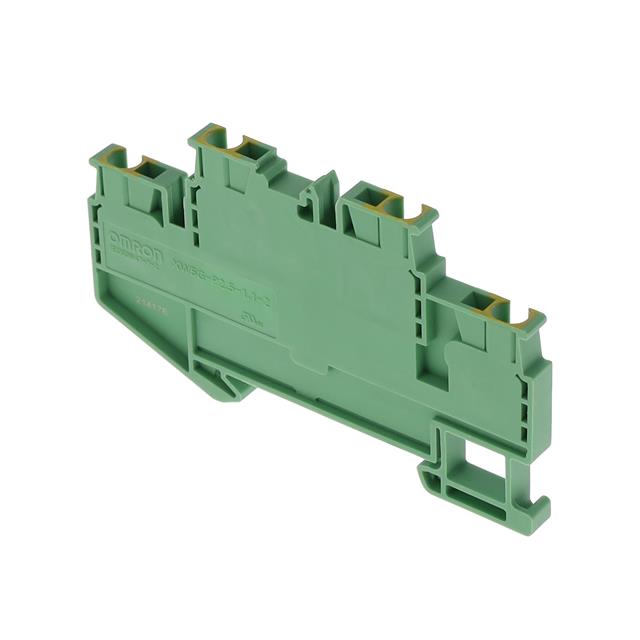

Omron Automation and Safety XW5G-P2.5-1.1-2	UL94 V-0	Nylon Polyamide (PA)	4 mm˛	0.14 mm˛	10 mm	600 V	Ground Earth	2	Connected	12 AWG	26 AWG	0.14 mm²	4 mm²	5.2 mm	Push In	500 V	4	Green Yellow

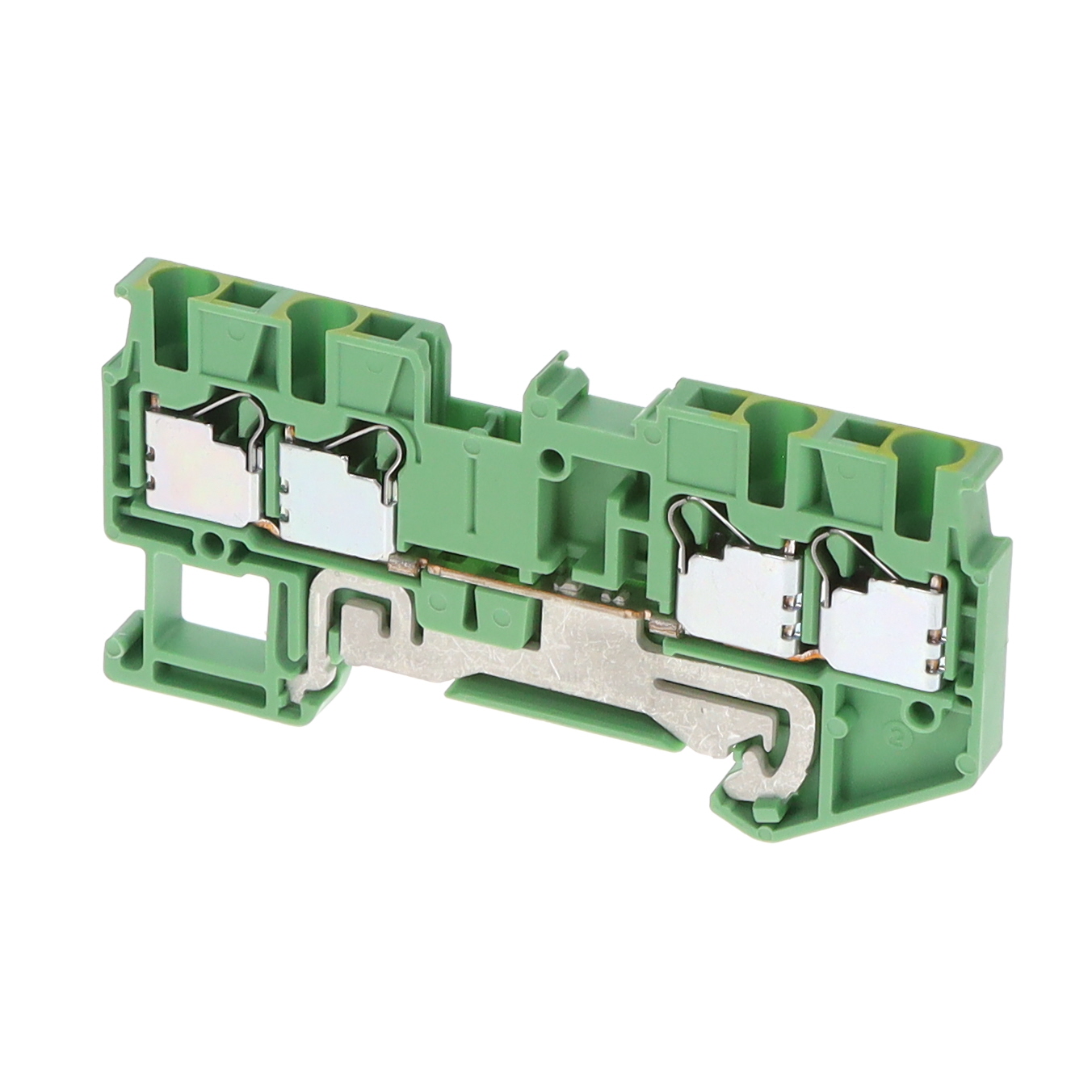

Omron Automation and Safety XW5G-P2.5-2.2-1	UL94 V-0	Nylon Polyamide (PA)	4 mm˛	0.14 mm˛	10 mm	600 V	Ground Earth	1		12 AWG	26 AWG	0.14 mm²	4 mm²	5.2 mm	Push In	800 V	4	Green Yellow
