EAPL2835 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED COOL WHITE 5700K 2PLCC

Part	Thermal Resistance of Package	Color	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Mounting Type	Viewing Angle	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CCT (K)	Supplier Device Package	Lumens/Watt @ Current - Test	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	CRI (Color Rendering Index)	Temperature - Test	Luminous Flux @ Current/Temperature	Flux @ 25°C, Current - Test
Everlight Electronics Co Ltd EAPL2835WB1	21 °C/W	Cool White	3.15 V	70 lm	50 lm	Surface Mount	120 °	180 mA	0.033 in	0.85 mm	5700 K	2-PLCC	127 lm/W	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80
Everlight Electronics Co Ltd EAPL2835WA1	21 °C/W	Warm White	3.15 V	60 lm	40 lm	Surface Mount	120 °	180 mA	0.033 in	0.85 mm	2700 K	2-PLCC	106 lm/W	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80

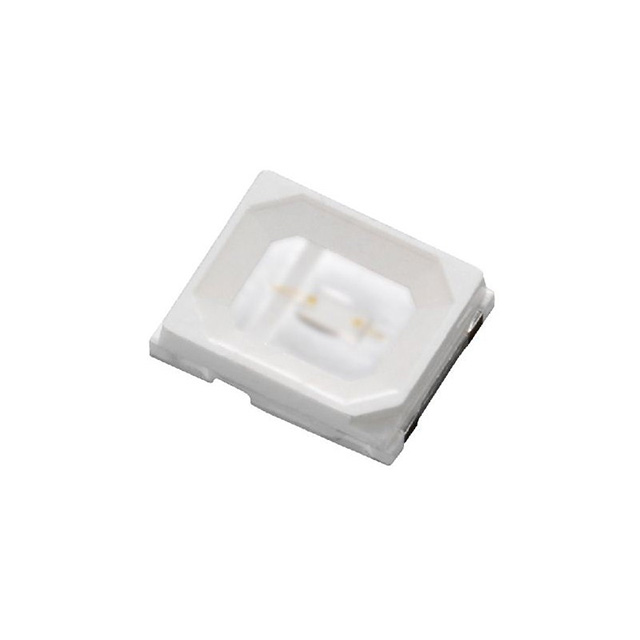

Everlight Electronics Co Ltd EAPL2835BA3	21 °C/W	Blue	3.15 V			Surface Mount	120 °	150 mA	0.033 in	0.85 mm		2-PLCC	21 lm/W	60 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411		25 °C	4 lm
Everlight Electronics Co Ltd EAPL2835WA2	50 °C/W	Warm White	3.25 V			Surface Mount	120 °	75 mA	0.033 in	0.85 mm	3000 K	2-PLCC	138 lm/W	60 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80			27 lm
Everlight Electronics Co Ltd EAPL2835WA8	21 °C/W	Cool White	3.15 V	70 lm	50 lm	Surface Mount	120 °	180 mA	0.033 in	0.85 mm	5000 K	2-PLCC	127 lm/W	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80
Everlight Electronics Co Ltd EAPL2835WA4	50 °C/W	Warm White	3.25 V			Surface Mount	120 °	75 mA	0.033 in	0.85 mm	3500 K	2-PLCC	138 lm/W	60 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80			27 lm
Everlight Electronics Co Ltd EAPL2835WA3	21 °C/W	Warm White	3.15 V	65 lm	45 lm	Surface Mount	120 °	180 mA	0.033 in	0.85 mm	3000 K	2-PLCC	116 lm/W	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80
Everlight Electronics Co Ltd EAPL2835WA6	21 °C/W	Neutral White	3.15 V	65 lm	45 lm	Surface Mount	120 °	180 mA	0.033 in	0.85 mm	4000 K	2-PLCC	116 lm/W	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80

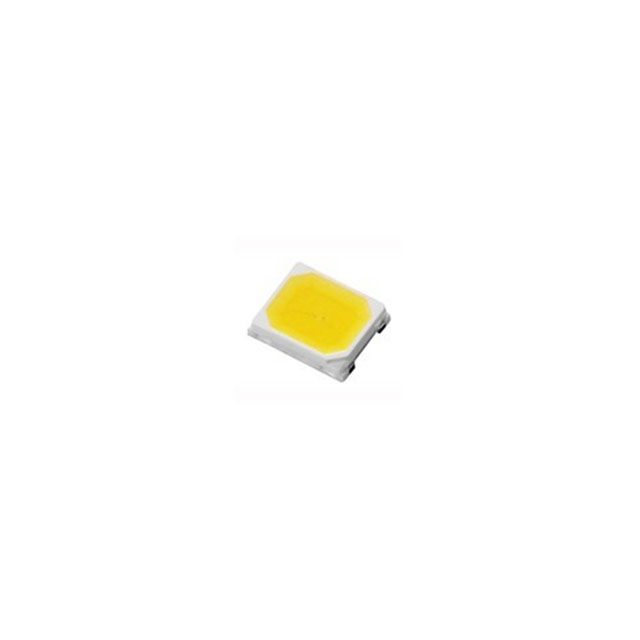

Everlight Electronics Co Ltd EAPL2835WA5	50 °C/W	Neutral White	3.25 V			Surface Mount	120 °	75 mA	0.033 in	0.85 mm	4000 K	2-PLCC	138 lm/W	60 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80			27 lm
Everlight Electronics Co Ltd EAPL2835WB4	21 °C/W	Cool White	3.15 V	70 lm	50 lm	Surface Mount	120 °	180 mA	0.033 in	0.85 mm	6500 K	2-PLCC	127 lm/W	150 mA	3.5 mm	0.11 "	2.8 mm	0.138 in	3528 Metric	1411	80
