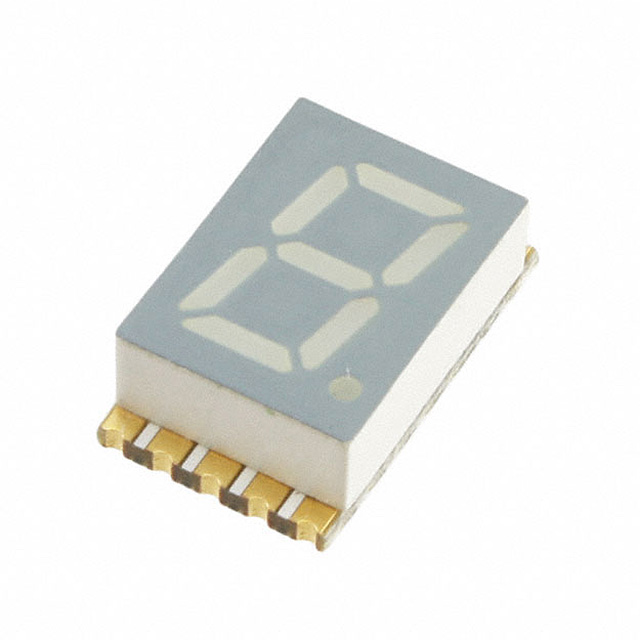

ACSA03 Series

Catalog

DISPLAY 7-SEG 0.3" SGL ORG 10SMD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Display Type	Number of Characters	Wavelength - Peak	Package / Case	Millicandela Rating	Color
Kingbright ACSA03-41SEKWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	2.1 V	75 mw	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1	610 nm	10-SMD No Lead	46 mcd
Kingbright ACSA03-41SURKWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	1.95 V	75 mw	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1	650 nm	10-SMD No Lead	27 mcd	Red

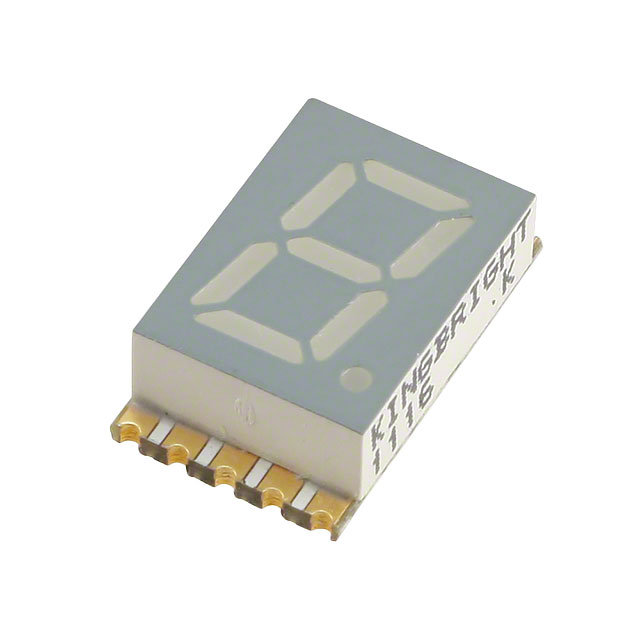

Kingbright ACSA03-41EWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	2 V	75 mw	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1	627 nm	10-SMD No Lead	4.21 mcd	Red
Kingbright ACSA03-41SRWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	1.85 V	75 mw	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1	660 nm	10-SMD No Lead	9.8 mcd	Red
Kingbright ACSA03-41CGKWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	2.1 V	75 mw	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1		10-SMD No Lead	12 mcd	Green

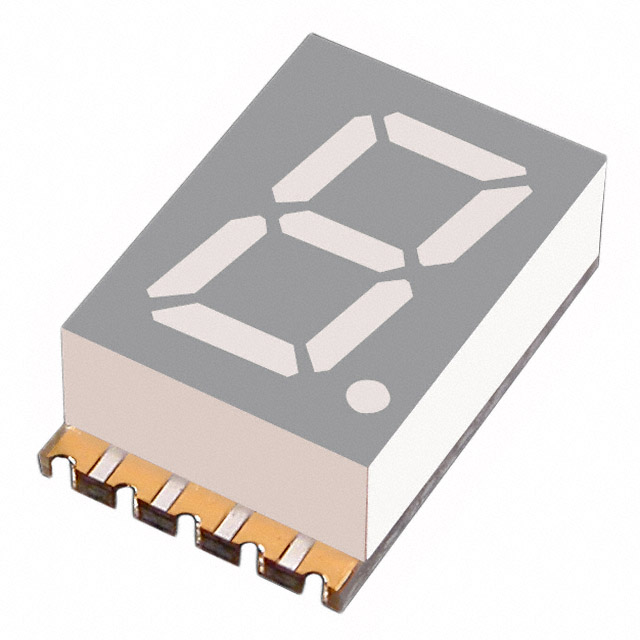

Kingbright ACSA03-41SGWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	2.2 V	62.5 mW	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1	565 nm	10-SMD No Lead	3.5 mcd	Green
Kingbright ACSA03-41SYKWA-F01	7.3 mm	0.287 in	10 mm	3.75 mm	0.394 in	0.148 in	2 V	75 mw	Common Anode	7.62 mm	0.3 in	20 mA	7-Segment	1	590 nm	10-SMD No Lead	36 mcd	Yellow
