TPS54425 Series
Manufacturer: Texas Instruments
Beta
⌘K
4.5V TO 18V INPUT, 4A SYNCHRONOUS STEP-DOWN CONVERTER
| Part | Voltage - Input (Max) [Max] | Mounting Type | Package / Case | Package / Case [y] | Package / Case [x] | Voltage - Output (Min/Fixed) | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Output Configuration | Topology | Synchronous Rectifier | Function | Supplier Device Package | Frequency - Switching | Current - Output | Number of Outputs | Voltage - Output | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Main Purpose | Regulator Topology | Board Type | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 18 V | Surface Mount | 14-PowerTSSOP | 4.4 mm | 0.173 in | 0.76 V | 4.5 V | 5.5 V | 85 °C | -40 °C | Adjustable | Positive | Buck | Step-Down | 14-HTSSOP | 700 kHz | 4 A | 1 | |||||||||||

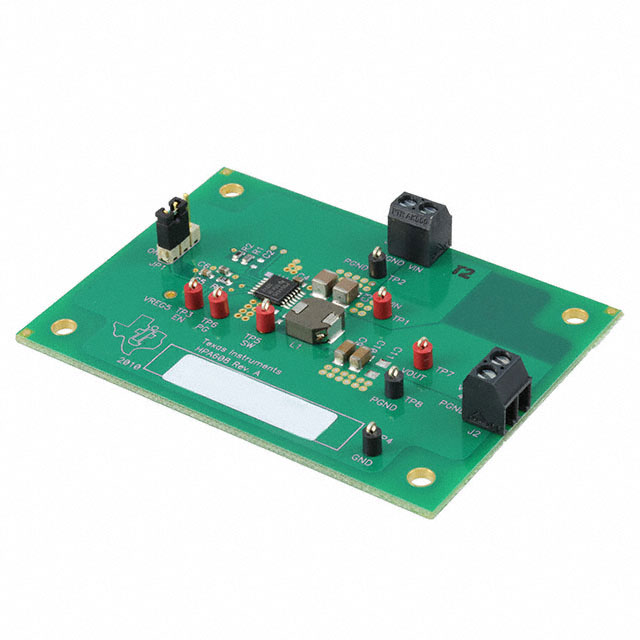

 Texas Instruments | 675 kHz | 4 A | 1.05 V | Board(s) | 18 V | 4.5 V | TPS54425 | DC/DC Step Down | Buck | Fully Populated | Non-Isolated | 1 | |||||||||||||||||
Texas Instruments | 18 V | Surface Mount | 14-PowerTSSOP | 4.4 mm | 0.173 in | 0.76 V | 4.5 V | 5.5 V | 85 °C | -40 °C | Adjustable | Positive | Buck | Step-Down | 14-HTSSOP | 700 kHz | 4 A | 1 |
