325-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K

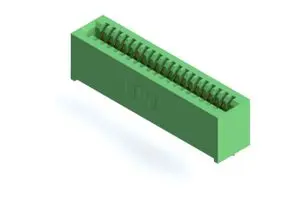

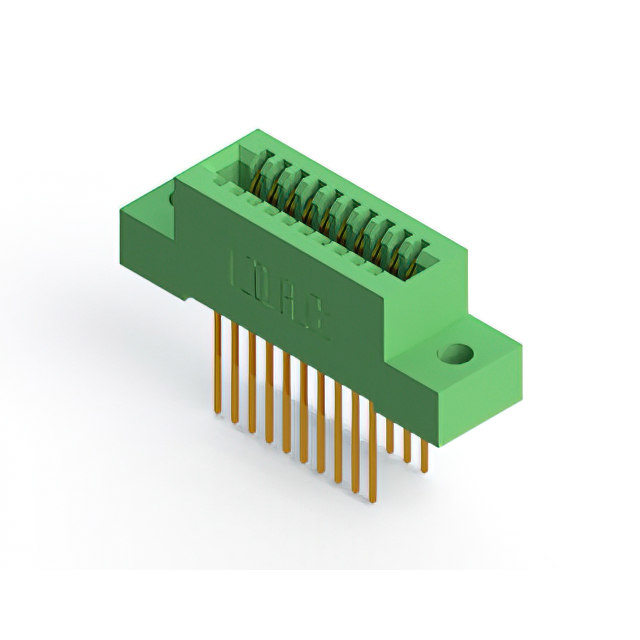

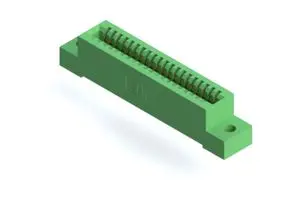

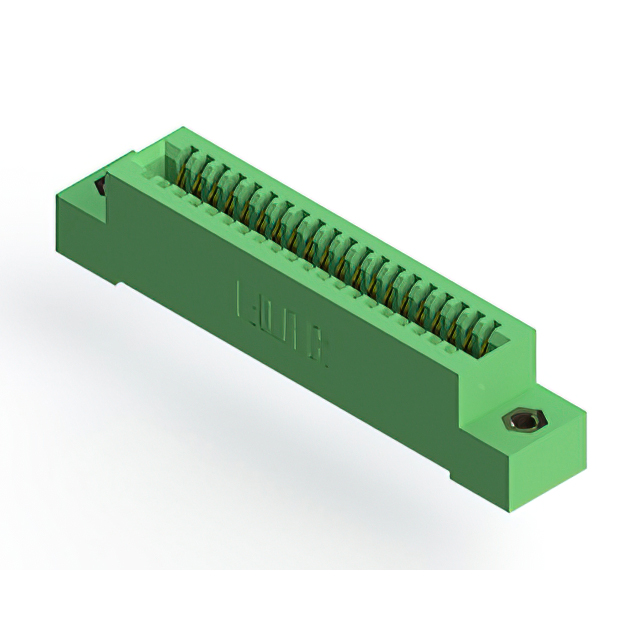

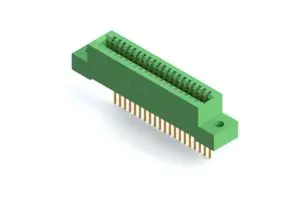

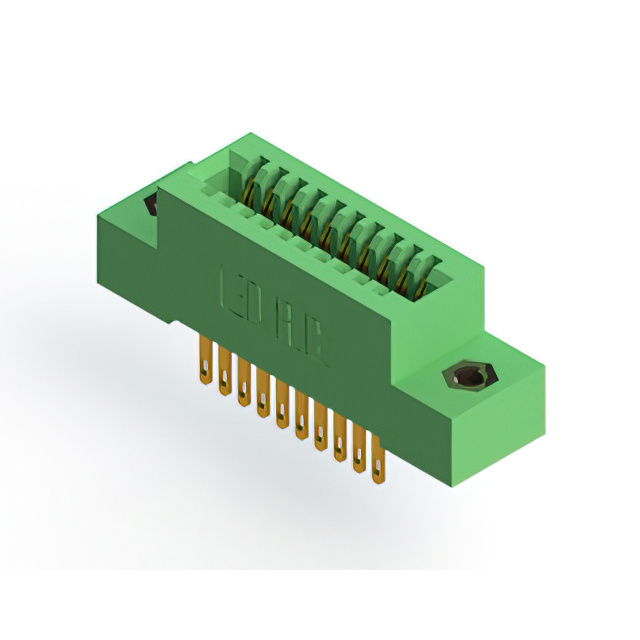

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 20 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Termination | Card Thickness | Card Thickness | Read Out | Color | Number of Positions/Bay/Row | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish | Mounting Type | Contact Material | Card Type | Pitch | Pitch | Number of Rows [custom] | Termination Rows | Number of Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | 20 | Wire Wrap | 3.18 mm | 0.125 in | Dual | Green | 10 | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 2 | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 20 | Solder | 3.18 mm | 0.125 in | Single | Green | 20 Bay/Row | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | 20 | Solder | 3.18 mm | 0.125 in | Dual | Green | 10 | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 2 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 20 | Solder | 3.18 mm | 0.125 in | Single | Green | 20 Bay/Row | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | Flush Mount M3 Threaded Insert Top Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 20 | Wire Wrap | 3.18 mm | 0.125 in | Single | Green | 20 Bay/Row | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 20 | Solder | 3.18 mm | 0.125 in | Single | Green | 20 Bay/Row | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | 20 | Wire Wrap | 3.18 mm | 0.125 in | Dual | Green | 10 | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 2 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | 20 | Solder Eyelet(s) | 3.18 mm | 0.125 in | Dual | Green | 10 | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 2 | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 0.25 Ám | 10 Áin | 20 | Solder Eyelet(s) | 3.18 mm | 0.125 in | Dual | Green | 10 | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Dual Edge | 0.1 " | 2.54 mm | 2 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 0.25 Ám | 10 Áin | 20 | Solder | 3.18 mm | 0.125 in | Single | Green | 20 Bay/Row | Female | -65 ░C | 125 °C | Cantilever | Gold | Through Hole | Copper Alloy | Non Specified - Single Edge | 0.1 " | 2.54 mm | 1 | 1 |
