XZMDKCBD55 Series

Manufacturer: SunLED

Catalog

LED BLUE/RED CLEAR 4SMD

Part	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max] [z]	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Size [diameter]	Viewing Angle	Lens Style	Configuration	Wavelength - Dominant	Supplier Device Package	Wavelength - Peak	Color	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Package / Case	Mounting Type	Lens Size [y]	Lens Size [x]	Millicandela Rating

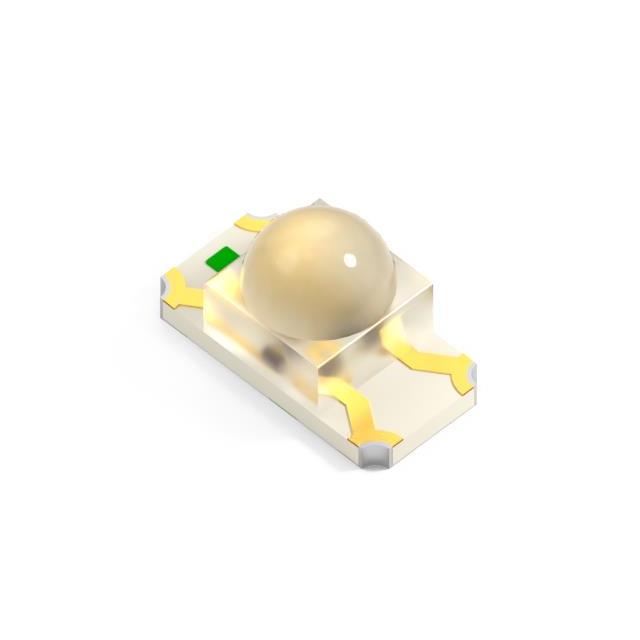

SunLED XZMDKCBD55W-8	397 mcd	248 mcd	1.8 mm	Colorless	1.95 V	3.3 V	1.6 mm	30 °	Round with Domed Top	Independent	465 nm 630 nm	4-SMD	460 nm 645 nm	Blue Red	20mA Blue 20mA Red	1.6 mm	3.2 mm	Clear	1206 (3216 Metric)	Surface Mount

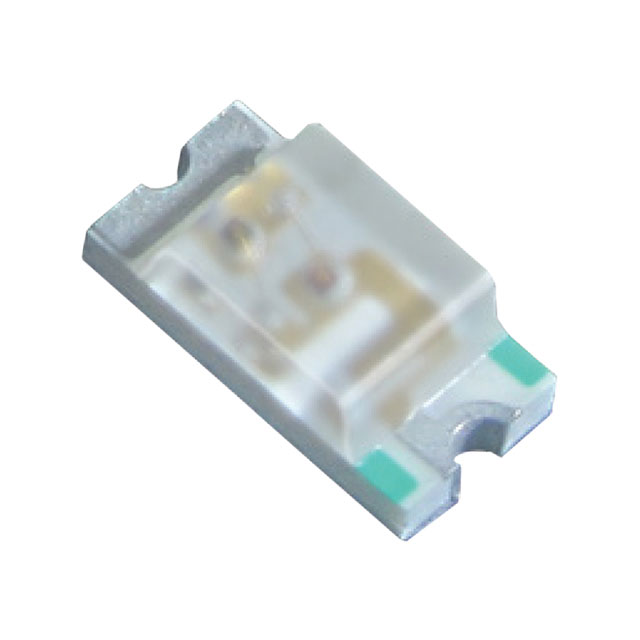

SunLED XZMDKCBD55W-4			1.3 mm	Colorless	1.95 V	3.3 V		140 °	Rectangle with Flat Top	Bidirectional	465 nm 630 nm	2-SMD	460 nm 645 nm	Blue Red	20mA Blue 20mA Red	1.6 mm	3.2 mm	Clear	1206 (3216 Metric)	Surface Mount	1.6 mm	2 mm	69 mcd 98 mcd
