T41100 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PLUG FMALE 8P SILVER SCREW

Part	Shell Size - Insert	Backshell Material, Plating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Color	Contact Finish - Mating	Number of Positions	Shell Finish	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Mounting Type	Insert Material [custom]	Insert Material [custom]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Shell Material	Fastening Type	Termination	Primary Material	Contact Material	Current Rating (Amps)	Connector Type	Voltage Rating	Ingress Protection	Features	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors T4110002082-000	M12-8	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	85 °C	-40 C	Industrial	Black Silver	Silver	8	Nickel	2.03 µm	80 µin	Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.315 in	0.236 in	8 mm	6 mm	Brass	Threaded	Screw	Metal	Bronze	2 A	Plug Female Sockets	30 VDC	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A
TE Connectivity AMP Connectors T4110011021-000	M12-2	Brass Nickel	Shielded	85 °C	-40 C	Industrial	Silver	Gold	2	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.236 in	0.157 in	6 mm	4 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	4 A	Plug Female Sockets	250 V	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110001081-000	M12-8	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	85 °C	-40 C	Industrial	Black Silver	Gold	8	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.236 in	0.157 in	6 mm	4 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	2 A	Plug Female Sockets	30 VDC	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110012081-000	M12-8	Brass Nickel	Shielded	85 °C	-40 C	Industrial	Silver	Gold	8	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.315 in	0.236 in	8 mm	6 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	2 A	Plug Female Sockets	30 VDC	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin

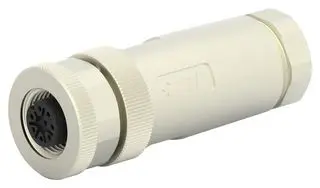

TE Connectivity AMP Connectors T4110011081-000	M12-8	Brass Nickel	Shielded	85 °C	-40 C	Industrial	Silver	Gold	8	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.236 in	0.157 in	6 mm	4 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	2 A	Plug Female Sockets	30 VDC	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110012021-000	M12-2	Brass Nickel	Shielded	85 °C	-40 C	Industrial	Silver	Gold	2	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.315 in	0.236 in	8 mm	6 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	4 A	Plug Female Sockets	250 V	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin

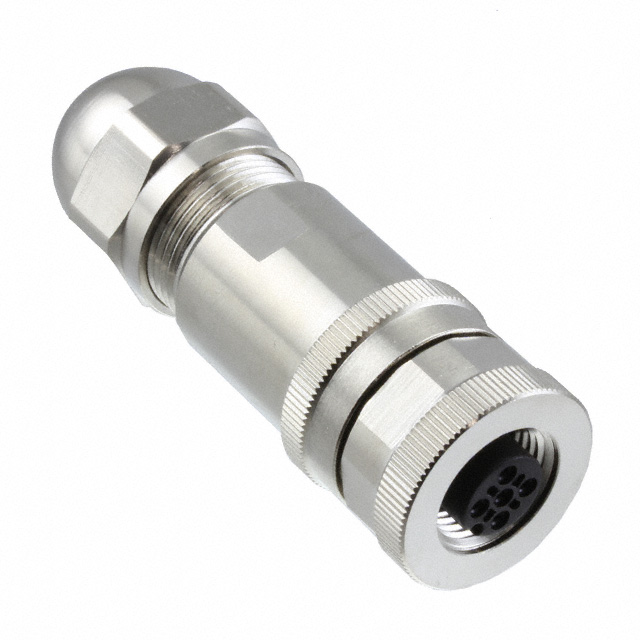

TE Connectivity AMP Connectors T4110012041-000	M12-4	Brass Nickel	Shielded	85 °C	-40 C	Industrial	Silver	Gold	4	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.315 in	0.236 in	8 mm	6 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	4 A	Plug Female Sockets	250 V	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin
TE Connectivity AMP Connectors T4110001041-000	M12-4	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	85 °C	-40 C	Industrial	Black Silver	Gold	4	Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.236 in	0.157 in	6 mm	4 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	4 A	Plug Female Sockets	250 V	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin

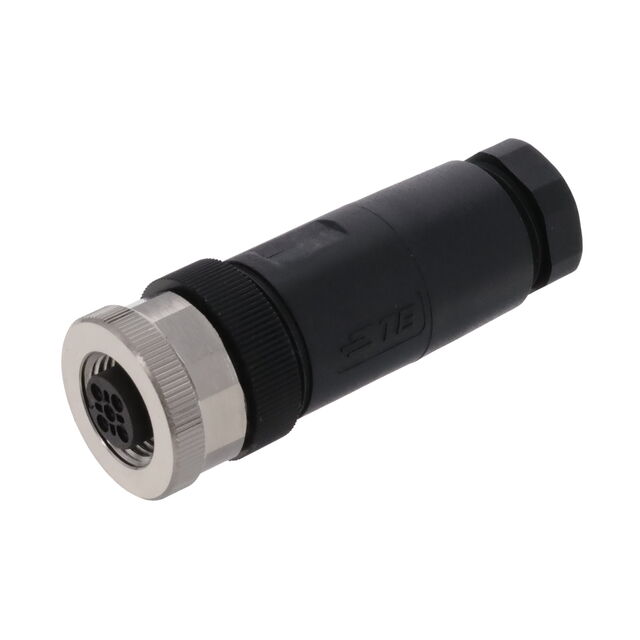

TE Connectivity AMP Connectors T4110002052-000	M12-5	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	85 °C	-40 C	Industrial	Black Silver	Silver	5	Nickel	2.03 µm	80 µin	Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.315 in	0.236 in	8 mm	6 mm	Brass	Threaded	Screw	Metal	Bronze	4 A	Plug Female Sockets	60 VDC	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A

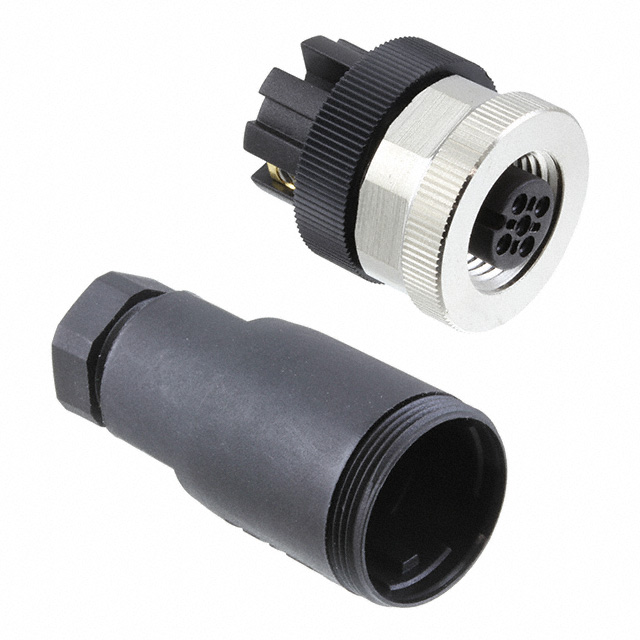

TE Connectivity AMP Connectors T4110001031-000	M12-3	Polybutylene Terephthalate (PBT) Glass Filled	Unshielded	85 °C	-40 C	Industrial	Black Silver	Gold		Nickel			Free Hanging (In-Line)	Nylon	Polyamide (PA)	0.236 in	0.157 in	6 mm	4 mm	Brass	Threaded	Screw	Metal	Zinc Alloy	4 A	Plug Female Sockets	250 V	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	A	0.076 µm	3 µin
