6318 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

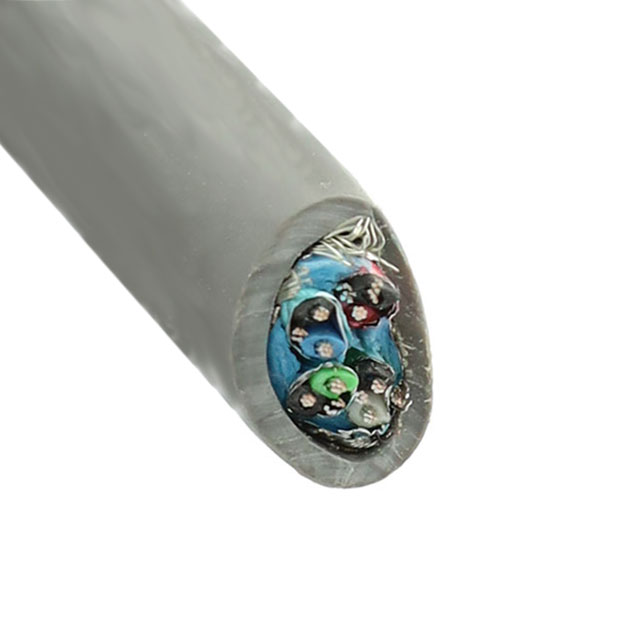

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 4 PAIR, 24 AWG, 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Wire Gauge | Features | Cable Type | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Ratings | Length | Length | Voltage | Conductor Insulation | Jacket Color | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 24 AWG | Drain Wire | Multi-Pair | 8 | 1.219 mm | 0.048 in | 7 | 32 AWG | 10.08 mm | 0.397 in | Braid Foil | UL Style 2493 | 304.8 m | 1000 ft | 300 VDC | Foam Polypropylene (FPP) | Slate | Copper Tinned | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 24 AWG | Drain Wire | Multi-Pair | 8 | 1.219 mm | 0.048 in | 7 | 32 AWG | 10.08 mm | 0.397 in | Braid Foil | UL Style 2493 | 300 VDC | Foam Polypropylene (FPP) | Slate | Copper Tinned | 100 ft | 30.5 m | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Poly-Vinyl Chloride (PVC) | 24 AWG | Drain Wire | Multi-Pair | 8 | 1.219 mm | 0.048 in | 7 | 32 AWG | 10.08 mm | 0.397 in | Braid Foil | UL Style 2493 | 152.4 m | 500 ft | 300 VDC | Foam Polypropylene (FPP) | Slate | Copper Tinned |
