PHBC14 Series

Manufacturer: KEMET

Catalog

CMC 187UH 8A 2LN TH

Part	DC Resistance (DCR) (Max) [Max]	Height (Max) [diameter]	Height (Max) [diameter]	Inductance @ Frequency	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Mounting Type	Package / Case	Package / Case	DC Resistance (DCR)

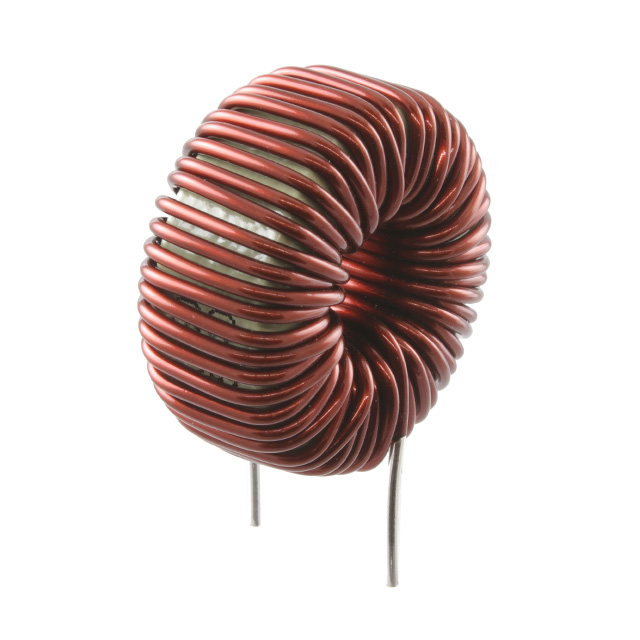

KEMET PHBC14-1R2A0187V	37.6 mOhm	1.339 in	34 mm	100 kHz 187 µH	2	8 A	37.6 mOhm	125 °C	-40 C	1.339 in	34 mm	34 mm	1.339 "	8 A	Through Hole	No Base Vertical	2 Lead
KEMET PHBC14-1R2A0120V	29.9 mOhm	1.339 in	34 mm	100 kHz 120 µH	2	8 A		125 °C	-40 C	1.339 in	34 mm	34 mm	1.339 "	8 A	Through Hole	No Base Vertical	2 Lead	29.9 mOhm
