ASM400S Series

Catalog

AC/DC CONVERTER 15V 200W

Part	Approval Agency	Mounting Type	Voltage - Output 1	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Voltage - Isolation	Applications	Type	Efficiency	Voltage - Output 1 [custom]
Astrodyne TDI ASM400S-15	CB CE cURus UL	Chassis Mount	15 V	401 W	200 Watts	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	13.3 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	90 %
Astrodyne TDI ASM400S-24	CB CE cURus UL	Chassis Mount	24 V	401 W	199 W	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	8.3 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	91 %
Astrodyne TDI ASM400S-36	CB CE cURus UL	Chassis Mount			198 W 400 W	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	5.5 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	91 %	36 V
Astrodyne TDI ASM400S-48	CB CE cURus UL	Chassis Mount	48 V	398 W	250 W	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	5.2 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	91 %
Astrodyne TDI ASM400S-28	CB CE cURus UL	Chassis Mount	28 V		199 W 400 W	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	7.1 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	91 %

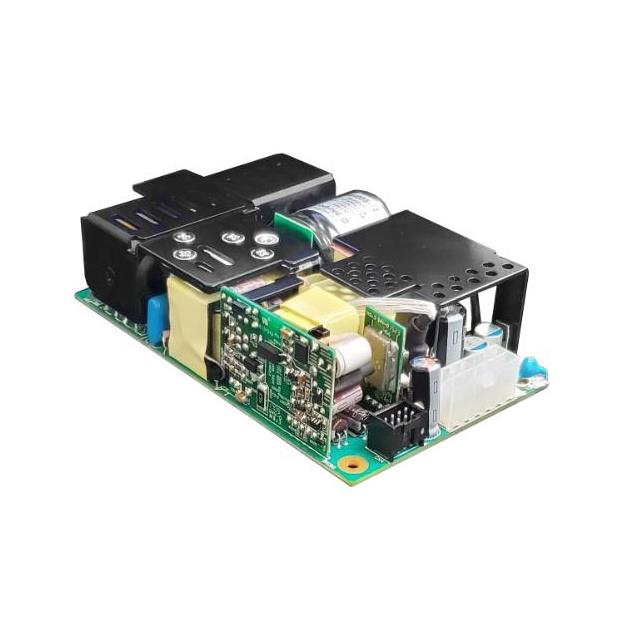

Astrodyne TDI ASM400S-12	CB CE cURus UL	Chassis Mount	12 V		200 W	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	16.7 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	90 %
Astrodyne TDI ASM400S-19	CB CE cURus UL	Chassis Mount	19 V	401 W	200 Watts	40 °C	-20 °C	Standby Output Universal Input	33.5 mm	3 "	76.2 mm	127 mm	1.32 in	5 "	10.5 A	60601-1	264 VAC	90 VAC	1	4000 V	Medical	Open Frame	91 %
