333-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K

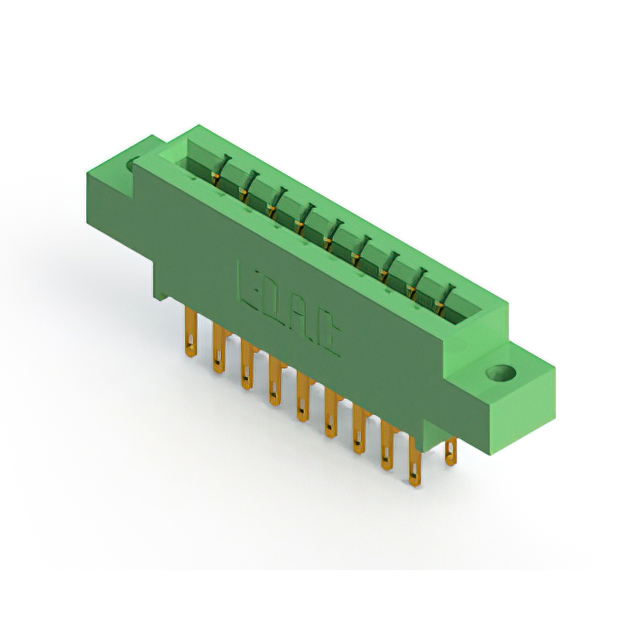

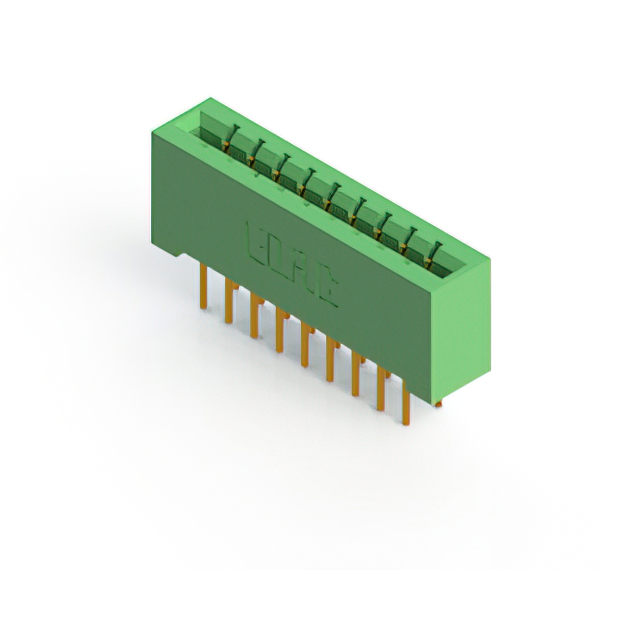

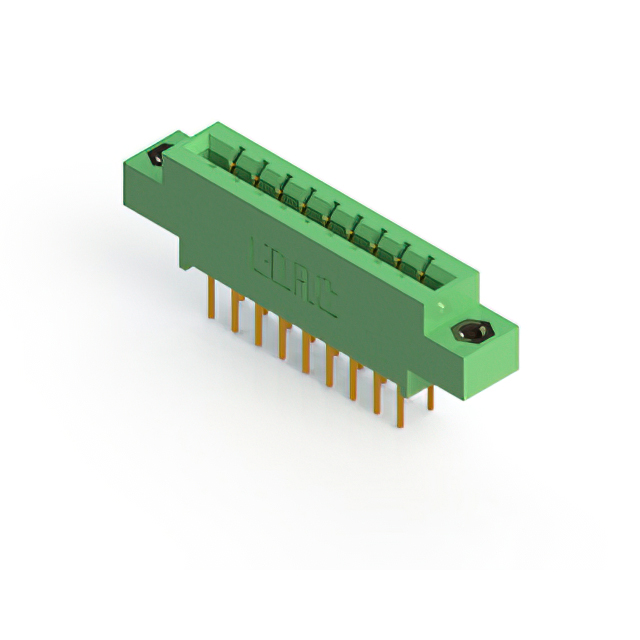

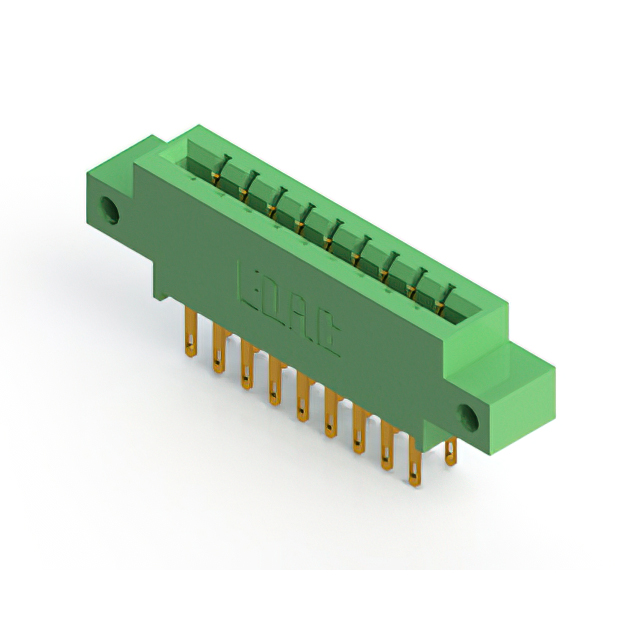

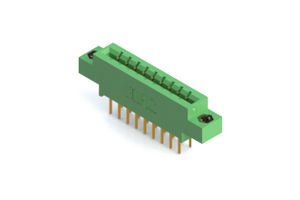

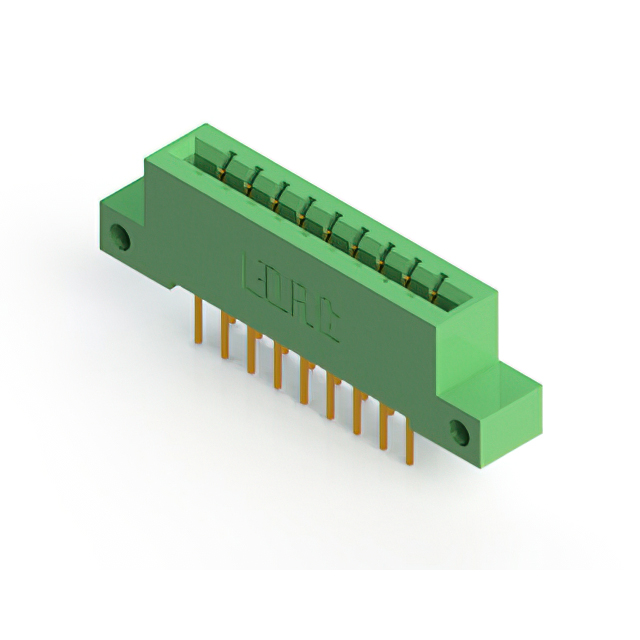

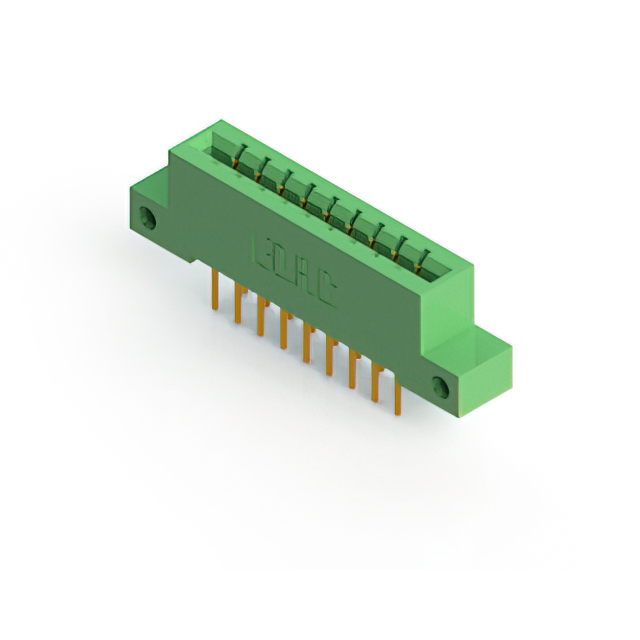

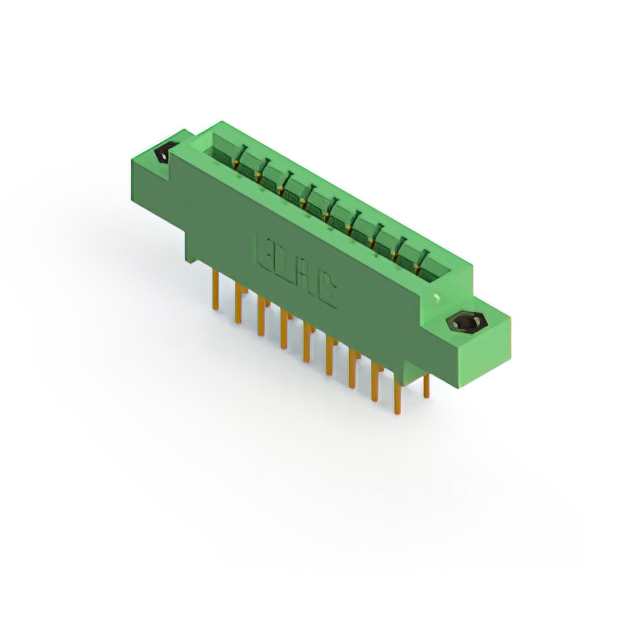

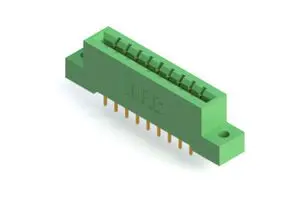

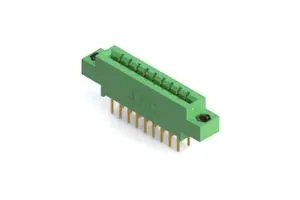

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Color | Read Out | Gender | Number of Rows [custom] | Contact Material | Mounting Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Type | Card Type | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Green | Dual | Female | 2 | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | 9 | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | |||||
 EDAC Inc. | Polyester Thermoplastic | Green | Single | Female | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 18 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Green | Dual | Female | 2 | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | 9 | -40 C | 105 ░C | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 3.25 mm | 0.128 " | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Green | Dual | Female | 2 | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | 9 | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | 3.25 mm | 0.128 " | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Green | Dual | Female | 2 | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | 9 | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | 3.25 mm | 0.128 " | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Green | Dual | Female | 2 | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | 9 | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | |||||
 EDAC Inc. | Polyester Thermoplastic | Green | Single | Female | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | 1 | 18 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Green | Single | Female | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder | 1 | 18 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Green | Dual | Female | 2 | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | 9 | -40 C | 105 ░C | Cantilever | Non Specified - Dual Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Wire Wrap | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Single | Female | Copper Alloy | Through Hole | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 18 | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Cantilever | Non Specified - Single Edge | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | 18 | 1 |
