EZP-E Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 20UF 10% 800VDC RADIAL

Part	Voltage Rating - DC	Features	Tolerance	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Package / Case	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Mounting Type	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EZP-E80206MTA	800 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	41.5 mm	1.181 in	1.634 "	30 mm	7.7 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.039 in	51.8 mm	37.5 mm	1.476 in	Through Hole	20 µF
Panasonic Industrial Automation Sales EZP-E50756MTA	500 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	57.5 mm	1.181 in	2.264 in	30 mm	6 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.028 "	51.5 mm	52.5 mm	2.067 in	Through Hole	75 µF
Panasonic Industrial Automation Sales EZP-E50117MTA	500 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	57.5 mm	1.378 "	2.264 in	35 mm	4.4 mOhm	Radial - 4 Leads	Metallized Polypropylene (PP)			52.5 mm	2.067 in	Through Hole	110 µF	56.5 mm	2.224 in
Panasonic Industrial Automation Sales EZP-E50406MTA	500 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	41.5 mm	1.181 in	1.634 "	30 mm	5.4 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.028 "	51.5 mm	37.5 mm	1.476 in	Through Hole	40 µF
Panasonic Industrial Automation Sales EZP-E80406MTA	800 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	57.5 mm	1.181 in	2.264 in	30 mm	8.3 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.047 in	52 mm	52.5 mm	2.067 in	Through Hole	40 µF

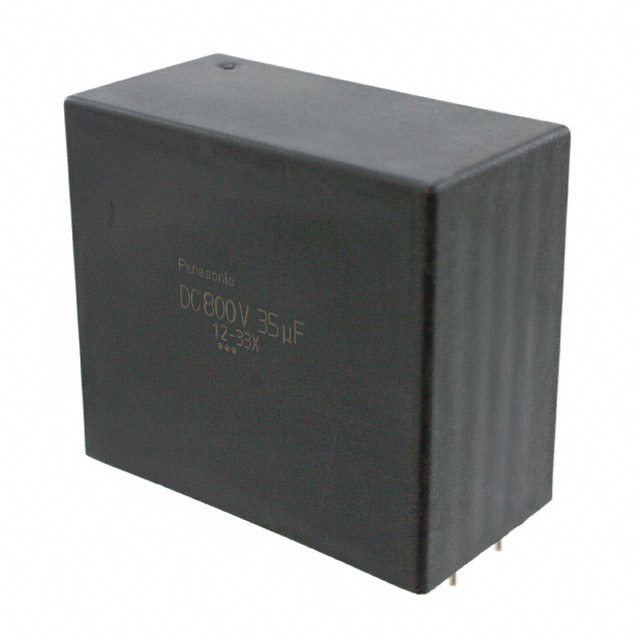

Panasonic Industrial Automation Sales EZP-E80356MTA	800 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	57.5 mm	1.181 in	2.264 in	30 mm	9.7 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.039 in	51.8 mm	52.5 mm	2.067 in	Through Hole	35 µF
Panasonic Industrial Automation Sales EZP-E80256MTA	800 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	41.5 mm	1.181 in	1.634 "	30 mm	6.4 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.039 in	51.8 mm	37.5 mm	1.476 in	Through Hole	25 µF
Panasonic Industrial Automation Sales EZP-E50456MTA	500 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	41.5 mm	1.181 in	1.634 "	30 mm	4.9 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.028 "	51.5 mm	37.5 mm	1.476 in	Through Hole	45 µF
Panasonic Industrial Automation Sales EZP-E50856MTA	500 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	57.5 mm	1.378 "	2.264 in	35 mm	5.4 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)			52.5 mm	2.067 in	Through Hole	85 µF	56.5 mm	2.224 in
Panasonic Industrial Automation Sales EZP-E80606MTA	800 V	Low ESR	10 %	PC Pins	85 °C	-40 °C	DC Filtering DC Link	57.5 mm	1.378 "	2.264 in	35 mm	5.6 mOhms	Radial - 4 Leads	Metallized Polypropylene (PP)	2.244 "	57 mm	52.5 mm	2.067 in	Through Hole	60 µF
