9G0812 Series

Catalog

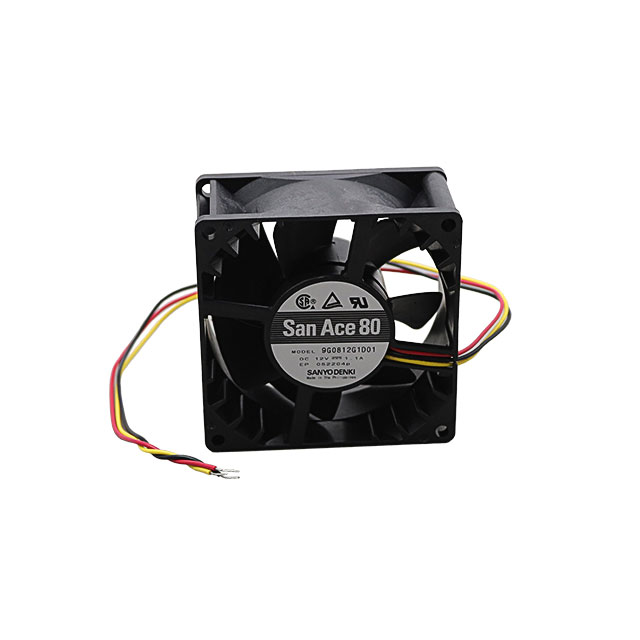

AXIAL FAN, 80MM, 12VDC, 90CFM, 51DBA

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Air Flow	Air Flow	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	RPM	Approval Agency	Noise	Width [y]	Termination	Weight [custom]	Weight [custom]	Fan Type	Static Pressure	Static Pressure	Features	Voltage - Rated	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 9G0812G101	13.8 VDC	7 V	Plastic	90 CFM	2.52 m³/min	1.1 A	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	6300 RPM	CSA TUV UL	51 dB(A)	38 mm	3 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.847 in H2O	211 Pa	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	13.2 W
Sanyo Denki America Inc. 9G0812H102	13.8 VDC	7 V	Plastic	80 CFM	2.24 m³/min	900 mA	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	5700 RPM	CSA TUV UL	49 dB	38 mm	2 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.687 in H2O	171.1 Pa		12 VDC	10.8 W
Sanyo Denki America Inc. 9G0812P1G081	13.8 VDC	7 V	Plastic	90 CFM	2.52 m³/min	1.1 A	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	6300 RPM	CSA TUV UL	51 dB(A)	38 mm	4 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.847 in H2O	211 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	13.2 W
Sanyo Denki America Inc. 9G0812P1H051	13.8 VDC	7 V	Plastic	80 CFM	2.24 m³/min	900 mA	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	5700 RPM	CSA TUV UL	49 dB	38 mm	4 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.687 in H2O	171.1 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	10.8 W
Sanyo Denki America Inc. 9G0812H1D011	13.8 VDC	7 V	Plastic	80 CFM	2.24 m³/min	900 mA	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	5700 RPM	CSA TUV UL	49 dB	38 mm	3 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.687 in H2O	171.1 Pa	Locked Rotor Sensor	12 VDC	10.8 W
Sanyo Denki America Inc. 9G0812H1D01	13.8 VDC	7 V	Plastic	80 CFM	2.24 m³/min	900 mA	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	5700 RPM	CSA TUV UL	49 dB	38 mm	3 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.687 in H2O	171.1 Pa	Locked Rotor Sensor	12 VDC	10.8 W
Sanyo Denki America Inc. 9G0812G1021	13.8 VDC	7 V	Plastic	90 CFM	2.52 m³/min	1.1 A	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	6300 RPM	CSA TUV UL	51 dB(A)	38 mm	2 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.847 in H2O	211 Pa		12 VDC	13.2 W
Sanyo Denki America Inc. 9G0812P1G04	13.8 VDC	7 V	Plastic	90 CFM	2.52 m³/min	1.1 A	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	6300 RPM	CSA TUV UL	51 dB(A)	38 mm	4 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.847 in H2O	211 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	13.2 W
Sanyo Denki America Inc. 9G0812H101	13.8 VDC	7 V	Plastic	80 CFM	2.24 m³/min	900 mA	40000 Hrs	Plastic	-20 ░C	70 °C	Ball	80 mm	80 mm	5700 RPM	CSA TUV UL	49 dB	38 mm	3 Wire Leads	0.375 lb	170.1 g	Tubeaxial	0.687 in H2O	171.1 Pa	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	10.8 W
Sanyo Denki America Inc. 9G0812K1011	13.2 VDC	10.8 VDC	Plastic	107.3 CFM	3 m³/min	1.8 A	40000 Hrs	Plastic	-20 ░C	60 °C	Ball	80 mm	80 mm	7800 RPM	CSA TUV UL	58 dB(A)	38 mm	3 Wire Leads	0.375 lb	170.1 g	Tubeaxial	1.285 in H2O	320 Pa	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	21.6 W	60 °C	-4 °F
