MAX77827 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

5.5V INPUT, 1.8A/3.1A SWITCH BUCK-BOOST CONVERTER WITH 6ΜA IQ

Part	Voltage - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Current - Output	Voltage - Input (Min) [Min]	Output Type	Frequency - Switching	Mounting Type	Topology	Package / Case	Function	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Input (Max) [Max]	Number of Outputs	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Utilized IC / Part	Voltage - Output	Main Purpose	Contents	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]

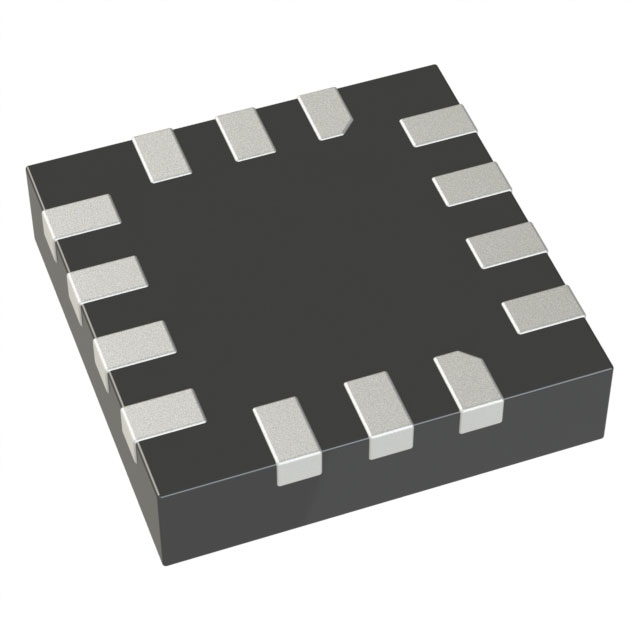

Analog Devices Inc./Maxim Integrated MAX77827BEFD+T	5.3 V	-40 C	125 °C	14-FC2QFN	2.5	2.5	900 mA	2.6 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	14-PowerUFQFN	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1

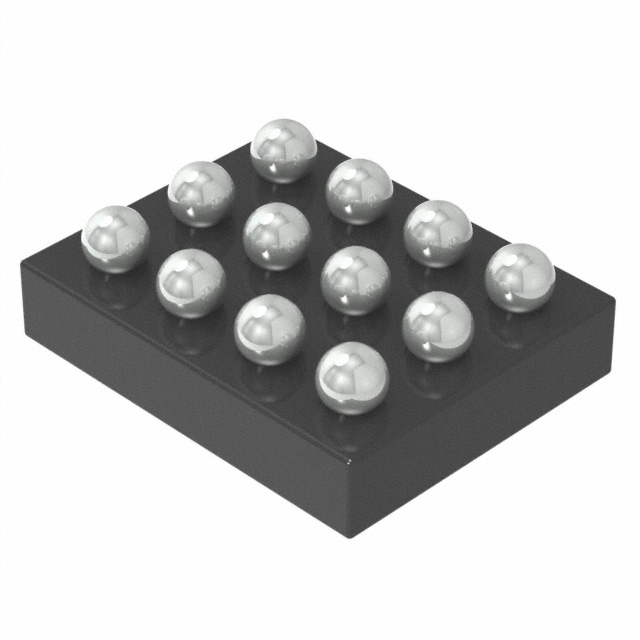

Analog Devices Inc./Maxim Integrated MAX77827AEWC+T	5.3 V	-40 C	125 °C	12-WLP	2.01	1.61	1.6 A	1.8 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	12-WFBGA WLBGA	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77827CEFD+	5.3 V	-40 C	125 °C	14-FC2QFN	2.5	2.5	1.6 A	2.6 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	14-PowerUFQFN	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77827CEFD+T	5.3 V	-40 C	125 °C	14-FC2QFN	2.5	2.5	1.6 A	2.6 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	14-PowerUFQFN	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77827DEWC+T	5.3 V	-40 C	125 °C	12-WLP	2.01	1.61	1.8 A	1.8 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	12-WFBGA WLBGA	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77827AEFD+	5.3 V	-40 C	125 °C	14-FC2QFN	2.5	2.5	1.6 A	1.8 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	14-PowerUFQFN	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1

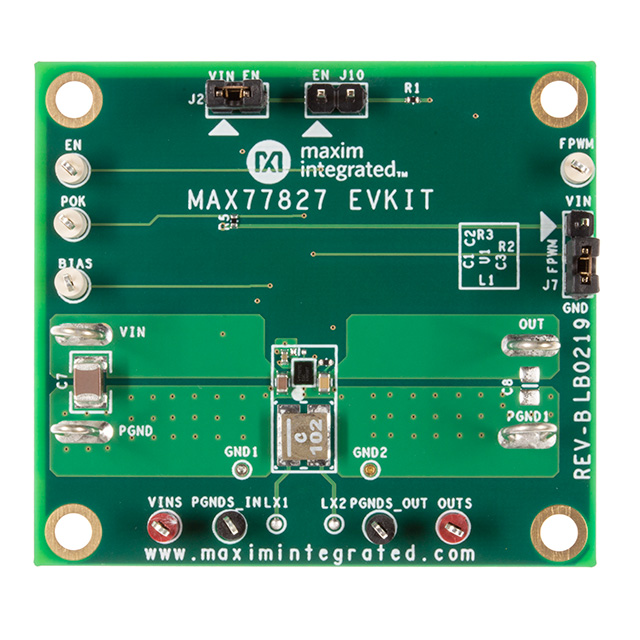

Analog Devices Inc./Maxim Integrated MAX77827EVKIT#							1.6 A			2.5 MHz									1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	MAX77827	3.3 V	DC/DC Step Up or Down	Board(s)	Buck-Boost	1.8 V	5.5 V
Analog Devices Inc./Maxim Integrated MAX77827CEWC+T	5.3 V	-40 C	125 °C	12-WLP	2.01	1.61	1.8 A	2.6 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	12-WFBGA WLBGA	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77827BEFD+	5.3 V	-40 C	125 °C	14-FC2QFN	2.5	2.5	900 mA	2.6 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	14-PowerUFQFN	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
Analog Devices Inc./Maxim Integrated MAX77827DEFD+	5.3 V	-40 C	125 °C	14-FC2QFN	2.5	2.5	1.6 A	1.8 V	Adjustable	2.5 MHz	Surface Mount	Buck-Boost	14-PowerUFQFN	Step-Up/Step-Down	2.3 V	Positive	5.5 V	1
