140-514 Series
Manufacturer: EDAC Inc.
Beta
⌘K
2.0MM PITCH CONNECTOR WITH 14 SU
| Part | Contact Shape | Insulation Color | Number of Positions | Voltage Rating | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Fastening Type | Connector Type | Contact Material | Number of Rows | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions Loaded | Termination | Contact Finish - Post | Current Rating (Amps) | Style | Shrouding | Insulation Material | Material Flammability Rating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

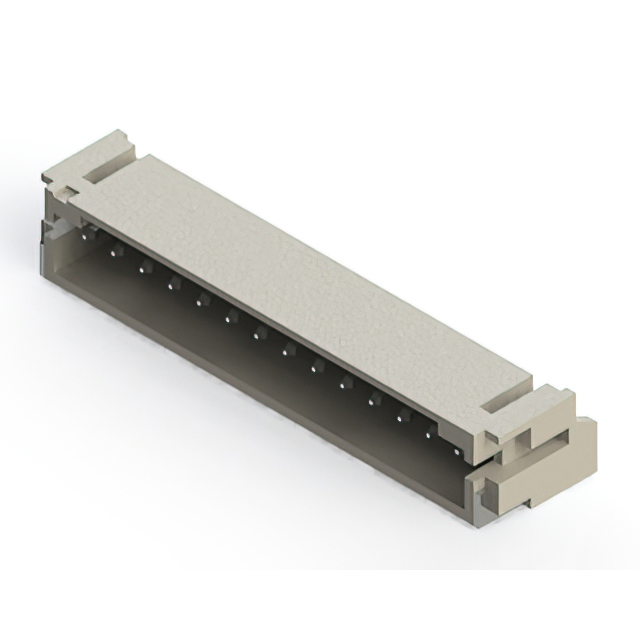

 EDAC Inc. | Square | Natural | 14 | 100 VAC | Male Pin | 85 °C | -25 °C | Solder Retention | Detent Lock | Header | Brass | 1 | 0.079 " | 2 mm | Right Angle Surface Mount | All | Solder | Tin | 2 A | Board to Cable/Wire | Shrouded - 4 Wall | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 0.217 in | 5.51 mm |

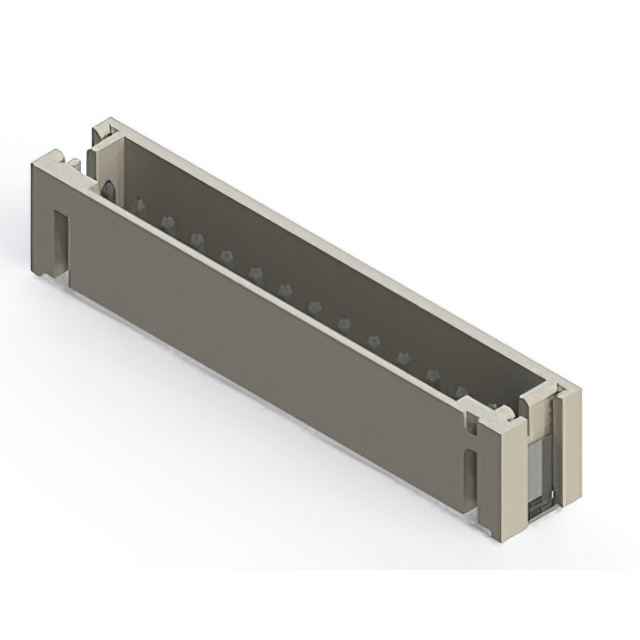

 EDAC Inc. | Square | Natural | 14 | 100 VAC | Male Pin | 105 ░C | -40 C | Solder Retention | Detent Lock | Header | Brass | 1 | 0.079 " | 2 mm | Surface Mount | All | Solder | Tin | 2 A | Board to Cable/Wire | Shrouded - 4 Wall | Liquid Crystal Polymer (LCP) | UL94 V-0 | 0.217 in | 5.51 mm |
