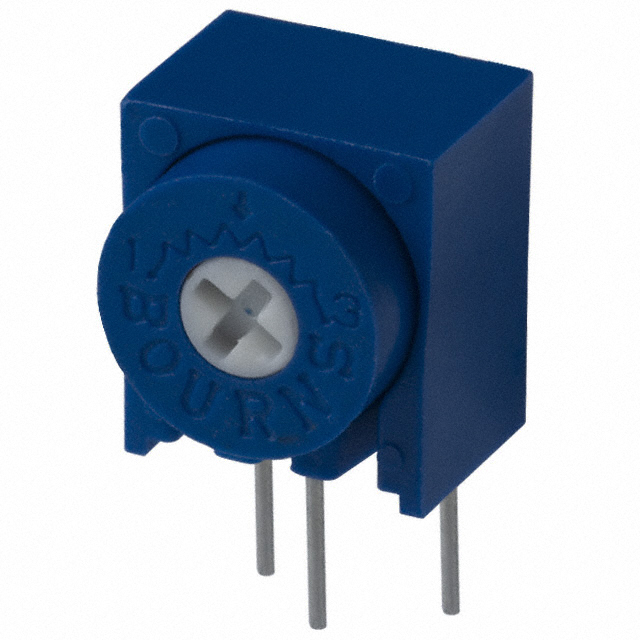

3339W Series
Manufacturer: Bourns Inc.
Beta
⌘K

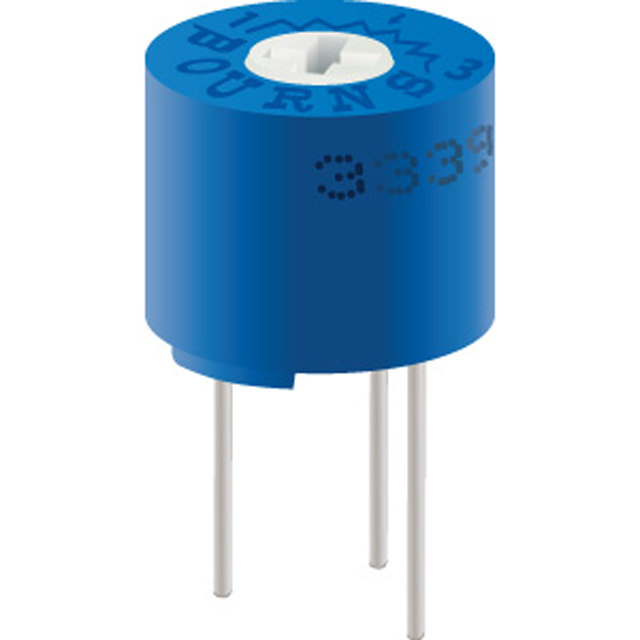

TRIMMER RESISTORS - THROUGH HOLE 5/16" TRIMPOT 10UH RND 4-TURN CERMET
| Part | Adjustment Type | Number of Turns | Termination Style | Temperature Coefficient | Mounting Type | Resistance | Resistive Material | Power (Watts) | Power (Watts) | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 10 Ohms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 20 Ohms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 100 Ohms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 200000 Ohms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 200 Ohms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
 Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 25 kOhms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 2 kOhms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
 Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 20 kOhms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 10000 Ohms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
Bourns Inc. | Side Adjustment | 4 | PC Pins | 100 ppm/°C | Through Hole | 0.5 kOhms | Cermet | 0.5 W | 0.5 W | 10 % | 0.32 " | 0.375 in | 8.13 mm | 9.53 mm |
