19410240 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, NYLON (POLYAMIDE), FIBREGLASS REINFORCED, 2 LEVER
| Part | Size | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Ingress Protection | Housing Material | Style | Housing Color | Lock Location | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

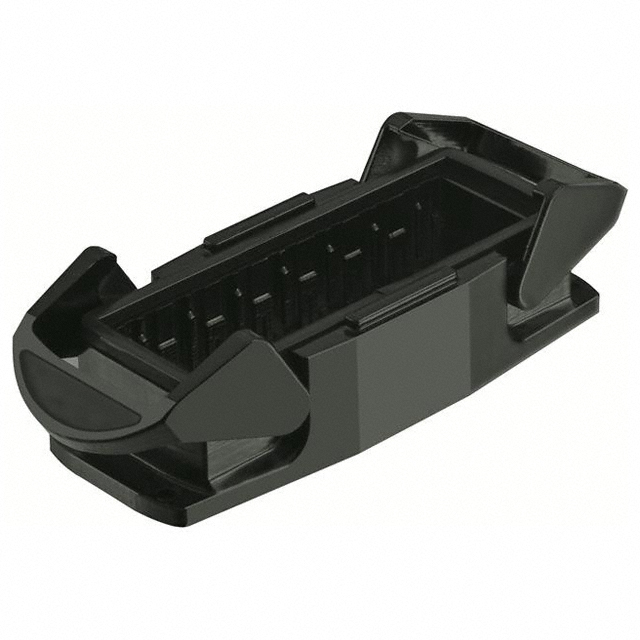

 HARTING | 24 B | 125 °C | -40 C | Base - Panel Mount | IP65 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Bottom Entry | Black | Locking Clip (2) on Base Bottom | 140 mm | 1.346 in | 5.512 " | 57 mm | 34.2 mm | 2.244 " | ||||

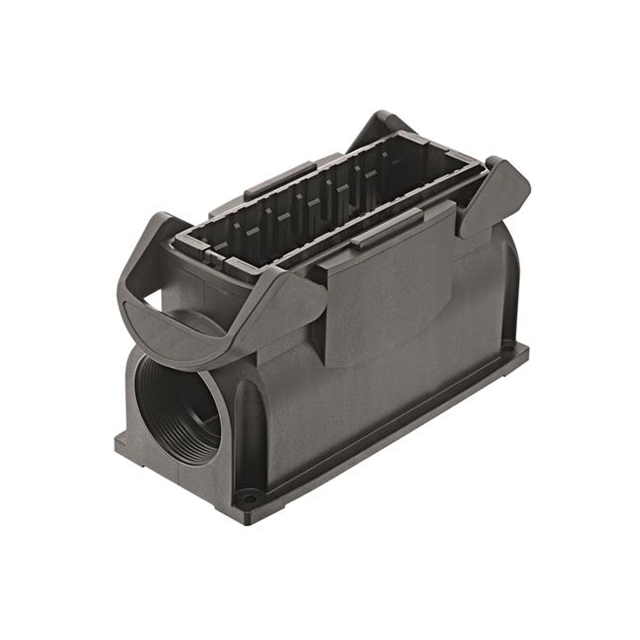

 HARTING | 24 B | 125 °C | -40 C | Base - Box Mount | IP65 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Side Entry | Black | Locking Clip (2) on Base Bottom | 146 mm | 3.079 in | 5.748 in | 68 mm | 78.2 mm | 2.677 " | ||||
HARTING | 24 B | 125 °C | -40 C | Base - Box Mount | IP65 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Side Entry | Black | Locking Clip (2) on Base Bottom | 146 mm | 3.079 in | 5.748 in | 68 mm | 78.2 mm | 2.677 " | Feed Through | |||

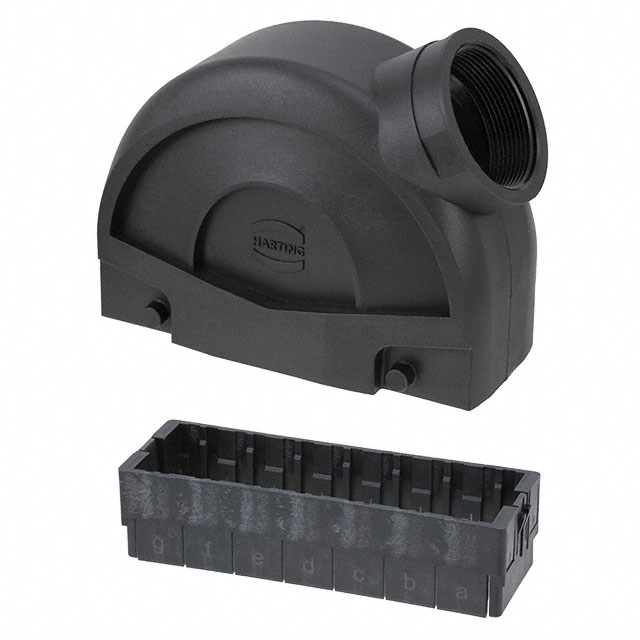

 HARTING | 24 B | 125 °C | -40 C | Hood | IP65 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Side Entry | Black | Locking Clip (2) on Base Bottom | 121 mm | 3.5 " | 4.764 " | 57 mm | 88.9 mm | 2.244 " | ||||

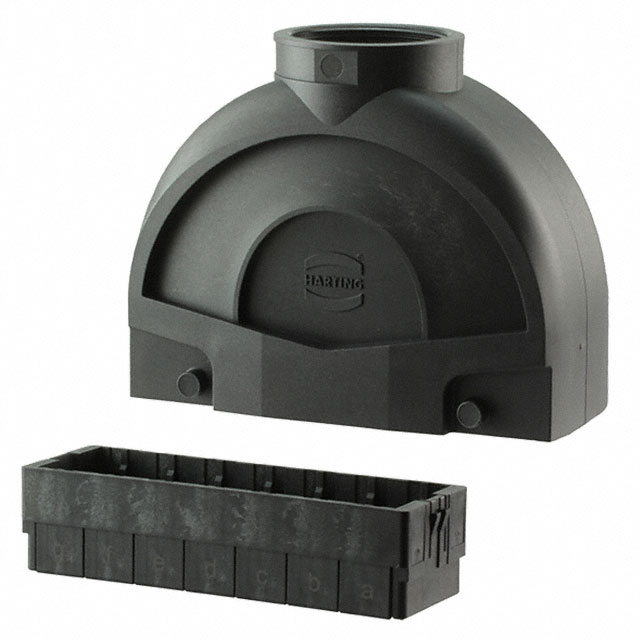

 HARTING | 24 B | 125 °C | -40 C | Hood | IP65 - Dust Tight Water Resistant | Glass Filled Nylon Polyamide (PA) | Top Entry | Black | Locking Clip (2) on Base Bottom | 4.764 " | 2.244 in | 3.815 in | 96.9 mm | 57 mm | 121 mm |
