3SU1130 Series

Manufacturer: Siemens

Catalog

SWITCH JOYSTICK DGTL 10A 500V

Part	Electrical Life	Mechanical Life	Contact Material	Current Rating (Amps)	Type	Output	Ingress Protection	Voltage Rating - AC	Actuator Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Switch Function	Mounting Type	Panel Cutout Dimensions [diameter]	Depth Behind Flange	Approval Agency	Circuit	Illumination	Number of Positions	Color - Actuator/Cap
Siemens 3SU11307AF101QA0	10000000 Cycles	500000 Cycles	Silver Alloy	10 A	Joystick 2 - Axis	Digital (Mechanical Switch)	IP65 IP67	500 V	Joystick	Screw Terminal	-25 °C	70 °C	500 V	360° Directional	Panel Mount	22.3 mm

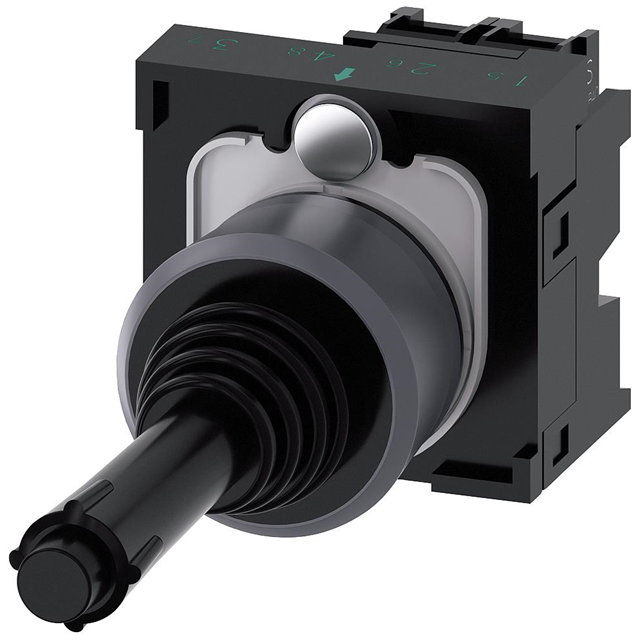

Siemens 3SU11307BB101NA0	10000000 Cycles	100000 Cycles	Silver Alloy	10 A	Joystick 2 - Axis	Digital (Mechanical Switch)	IP65 IP67	500 V	Joystick	Screw Terminal	-25 °C	70 °C	500 V	360° Directional	Panel Mount	22.3 mm

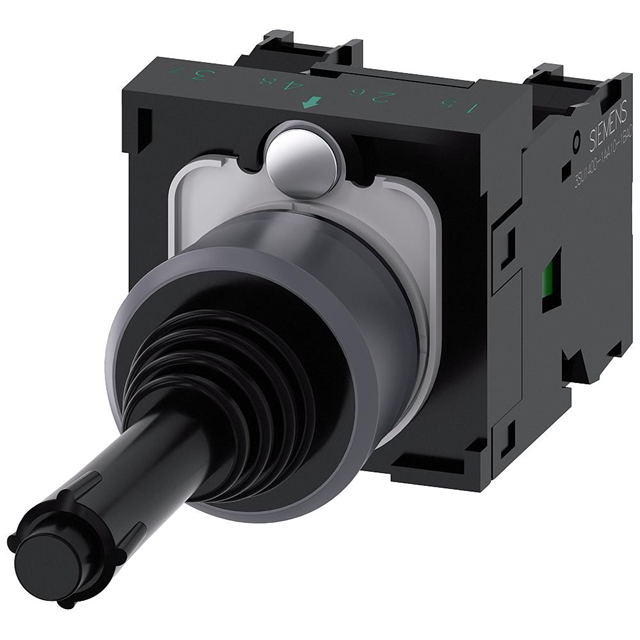

Siemens 3SU11307BA101NA0	10000000 Cycles	100000 Cycles	Silver Alloy	10 A	Joystick 2 - Axis	Digital (Mechanical Switch)	IP65 IP67	500 V	Joystick	Screw Terminal	-25 °C	70 °C	500 V	360° Directional	Panel Mount	22.3 mm
Siemens 3SU11302BF601BA0	10000000 Cycles	1000000 Cycles		10 A	Standard		IP66 IP67 IP69K	500 V		Screw Terminal	-25 °C	70 °C	500 V	Off-On	Panel Mount	22.3 mm	49.7 mm	CCC CE CSA EAC UL	SPST-NO	Non-Illuminated	2
Siemens 3SU11307BD101NA0	10000000 Cycles	500000 Cycles	Silver Alloy	10 A	Joystick 2 - Axis	Digital (Mechanical Switch)	IP65 IP67	500 V	Joystick	Screw Terminal	-25 °C	70 °C	500 V	360° Directional	Panel Mount	22.3 mm
Siemens 3SU11301BA201CA0	10000000 Cycles	500000 Cycles		10 A	Standard		IP66 IP67 IP69K	500 V	Button Mushroom Round	Screw Terminal	-25 °C	70 °C	500 V	On-Off	Panel Mount Front	22.3 mm			SPST-NC			Red
Siemens 3SU11307AE101QA0	10000000 Cycles	100000 Cycles	Silver Alloy	10 A	Joystick 2 - Axis	Digital (Mechanical Switch)	IP65 IP67	500 V	Joystick	Screw Terminal	-25 °C	70 °C	500 V	360° Directional	Panel Mount	22.3 mm

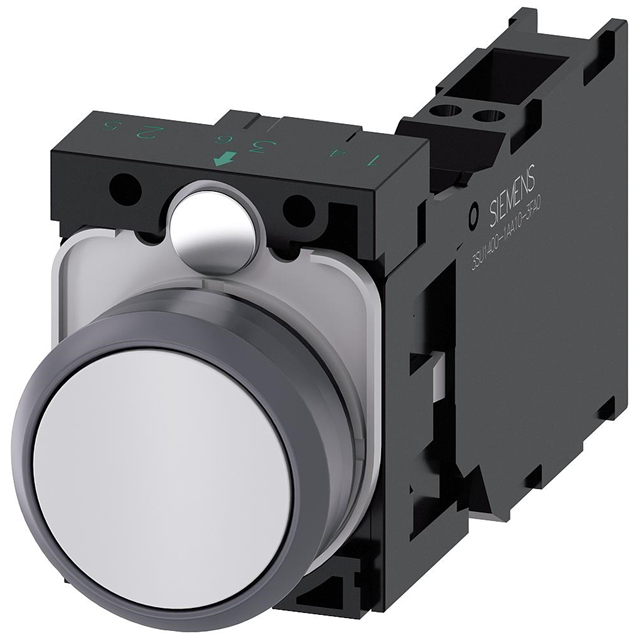

Siemens 3SU11300AB603FA0	10000000 Cycles	10000000 Cycles		10 A	Standard		IP66 IP67 IP69K	500 V	Button Round	Spring Terminal	-25 °C	70 °C	500 V	Off-Mom On-Mom	Panel Mount Front	22.3 mm			DPST-NO/NC			White
Siemens 3SU11307AC101NA0	10000000 Cycles	500000 Cycles	Silver Alloy	10 A	Joystick 2 - Axis	Digital (Mechanical Switch)	IP65 IP67	500 V	Joystick	Screw Terminal	-25 °C	70 °C	500 V	360° Directional	Panel Mount	22.3 mm
Siemens 3SU11302BM601NA0	10000000 Cycles	1000000 Cycles		10 A	Standard		IP66 IP67 IP69K	500 V		Screw Terminal	-25 °C	70 °C	500 V	Off-Mom	Panel Mount	22.3 mm	49.7 mm	CCC CE CSA EAC UL	DPST-NO	Non-Illuminated
