SML-S13 Series

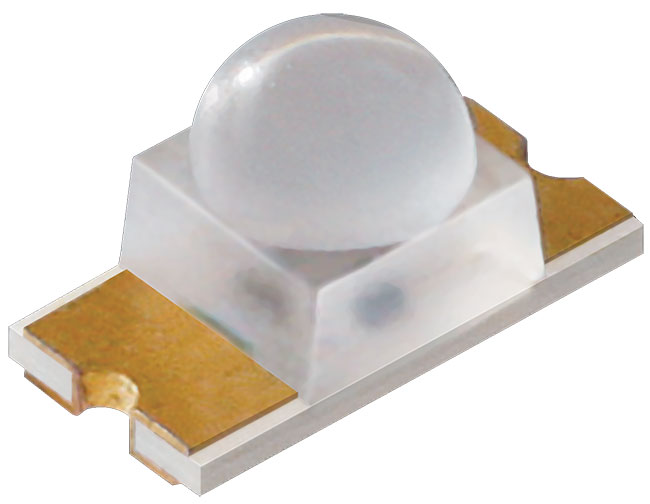

Rear mounting available, with lens Top view type 850nm NIR (Near Infrared) LED

Catalog

Rear mounting available, with lens Top view type 850nm NIR (Near Infrared) LED

Part	Lens Style	Wavelength - Dominant	Supplier Device Package	Supplier Device Package	Millicandela Rating	Mounting Type	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Lens Size [diameter]	Configuration	Height (Max) [Max] [z]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)	Wavelength	Orientation	Radiant Intensity (Ie) Min @ If [Min]
Rohm Semiconductor SML-S13VTT68	Round with Domed Top	630 nm	3216	1206	450 mcd	Surface Mount	1206 (3216 Metric)	Red	1.6 mm	3.2 mm	20 mA	1.95 mm	1.9 V	1.6 mm	Standard
Rohm Semiconductor SML-S13DTT68	Round with Domed Top	605 nm	3216	1206	1400 mcd	Surface Mount	1206 (3216 Metric)		1.6 mm	3.2 mm	20 mA	1.95 mm	1.9 V	1.6 mm	Standard
Rohm Semiconductor SML-S13UTT68	Round with Domed Top	620 nm	1206		700 mcd	Surface Mount	1206 (3216 Metric)	Red	1.6 mm	3.2 mm	20 mA		1.9 V	1.6 mm		2.05 mm
Rohm Semiconductor SML-S13VTT86	Round with Domed Top	630 nm	3216	1206	450 mcd	Surface Mount	1206 (3216 Metric)	Red	1.6 mm	3.2 mm	20 mA	1.95 mm	1.9 V	1.6 mm	Standard
Rohm Semiconductor SML-S13YTT68	Round with Domed Top	590 nm	1206		1400 mcd	Surface Mount	1206 (3216 Metric)	Yellow	1.6 mm	3.2 mm	20 mA		2 V	1.6 mm		2.05 mm
Rohm Semiconductor SML-S13PTT68	Round with Domed Top	560 nm	1206		300 mcd	Surface Mount	1206 (3216 Metric)	Green	1.6 mm	3.2 mm	20 mA		2 V	1.6 mm		2.05 mm

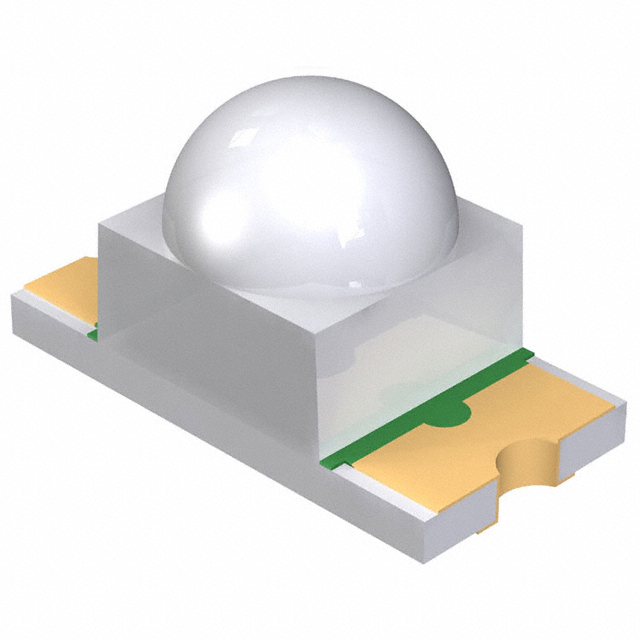

Rohm Semiconductor SML-S13RTT86						Surface Mount	1206 (3216 Metric)						1.4 V				Infrared (IR)	85 °C	-30 °C	30 mA	850 nm	Top View	1.5 mW/sr

Rear mounting available, with lens Top view type 850nm NIR (Near Infrared) LED

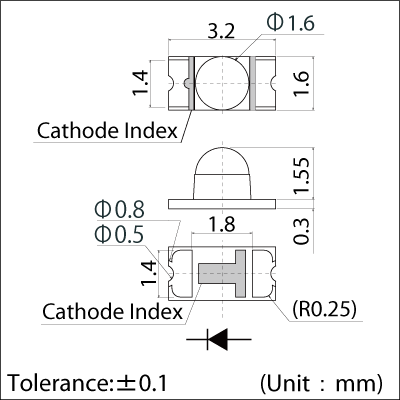

SML-S1 series is a lens-equipped tip LED that can be mounted on both the front and back sides.
