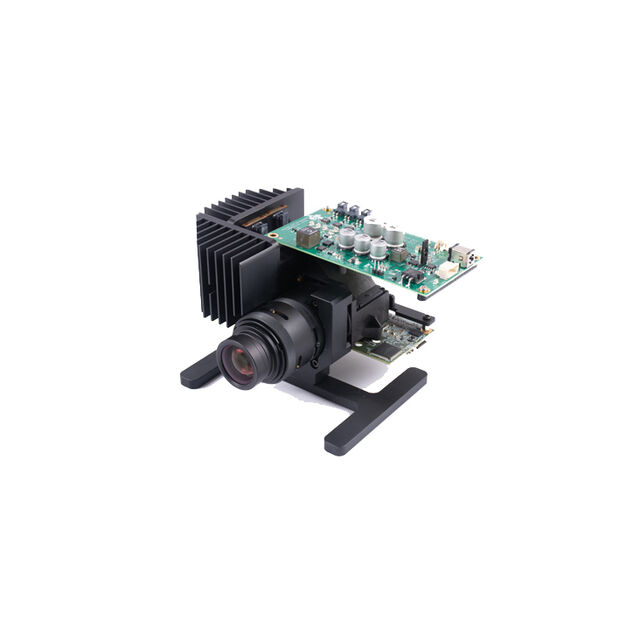

DLP5530S-Q1 Series
DLP® automotive functional safety 0.55-inch digital micromirror device (DMD)
Manufacturer: Texas Instruments
Catalog
DLP® automotive functional safety 0.55-inch digital micromirror device (DMD)
Key Features
• Qualified for automotive applications–40°C to 105°C operating DMD array temperature rangeFunctional Safety Quality-ManagedDocumentation available to aid ISO 26262 functional safety system design up to ASIL-BThe DLP5530S-Q1 automotive chipset includes:DLP5530S-Q1 DMDDLPC230S-Q1TPS99000S-Q1 system management and illumination controller0.55-inch diagonal micromirror array7.6-µm micromirror pitch±12° micromirror tilt angle (relative to flat state)Bottom illumination for optimal efficiency and optical engine sizeSupports 1152 × 576 input resolutionUp to 2304 x 1152 resolution with external GPU based diamond pre-processingCompatible with LED or laser illumination600-MHz sub-LVDS DMD interface for low power and emission10-kHz DMD refresh rate over temperature extremesBuilt-in self test of DMD memory cellsQualified for automotive applications–40°C to 105°C operating DMD array temperature rangeFunctional Safety Quality-ManagedDocumentation available to aid ISO 26262 functional safety system design up to ASIL-BThe DLP5530S-Q1 automotive chipset includes:DLP5530S-Q1 DMDDLPC230S-Q1TPS99000S-Q1 system management and illumination controller0.55-inch diagonal micromirror array7.6-µm micromirror pitch±12° micromirror tilt angle (relative to flat state)Bottom illumination for optimal efficiency and optical engine sizeSupports 1152 × 576 input resolutionUp to 2304 x 1152 resolution with external GPU based diamond pre-processingCompatible with LED or laser illumination600-MHz sub-LVDS DMD interface for low power and emission10-kHz DMD refresh rate over temperature extremesBuilt-in self test of DMD memory cells
Description
AI
The DLP5530S-Q1 automotive DMD, combined with the DLPC230S-Q1 DMD controller and TPS99000S-Q1 system management and illumination controller, provides the capability to achieve a high performance augmented reality HUD. The 2:1 aspect ratio supports very wide aspect ratio designs, and the 1.3-MP resolution enables retinal limited displays to be achieved in HUD applications. The DLP5530S-Q1 has more than 3 times the optical throughput of the preceding DLP3030-Q1 automotive DMD enabling wider field of view and larger driver eye box for enhanced user experience. This chipset, coupled with LEDs and an optical system, enables deep saturated colors of 125% NTSC, extremely high brightness of more than 15,000 cd/m2, high dynamic dimming ratio more than 5000:1, and high solar load tolerance. The DLP5530S-Q1 automotive DMD micromirror array is configured for bottom illumination which enables highly efficient and more compact optical engine designs. The S450 package has low thermal resistance to the DMD array to enable more efficient thermal solutions.
The DLP5530S-Q1 automotive DMD, combined with the DLPC230S-Q1 DMD controller and TPS99000S-Q1 system management and illumination controller, provides the capability to achieve a high performance augmented reality HUD. The 2:1 aspect ratio supports very wide aspect ratio designs, and the 1.3-MP resolution enables retinal limited displays to be achieved in HUD applications. The DLP5530S-Q1 has more than 3 times the optical throughput of the preceding DLP3030-Q1 automotive DMD enabling wider field of view and larger driver eye box for enhanced user experience. This chipset, coupled with LEDs and an optical system, enables deep saturated colors of 125% NTSC, extremely high brightness of more than 15,000 cd/m2, high dynamic dimming ratio more than 5000:1, and high solar load tolerance. The DLP5530S-Q1 automotive DMD micromirror array is configured for bottom illumination which enables highly efficient and more compact optical engine designs. The S450 package has low thermal resistance to the DMD array to enable more efficient thermal solutions.
