3131441 Series

Catalog

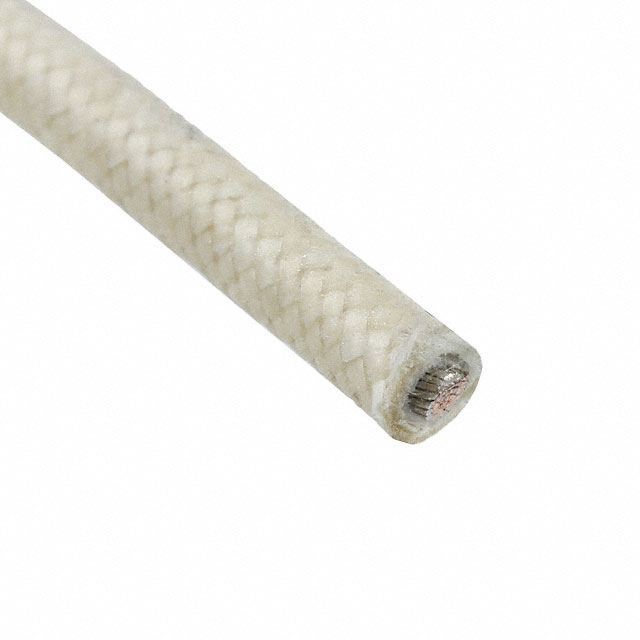

CBL 1 COND 14AWG TAN 100=100FT

Part	Conductor Material	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Voltage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
ALPHA WIRE 3131441 TN199	Copper Nickel Coated	UL Style 5196	0.136 in	3.45 mm	30.5 m	100 ft	-55 °C	250 °C	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	0.005 in	0.13 mm	Hook-Up Shielded	Tan	600 V	13.5 AWG	41	30 AWG
ALPHA WIRE 3131441 TN001	Copper Nickel Coated	UL Style 5196	0.136 in	3.45 mm			-55 °C	250 °C	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	0.005 in	0.13 mm	Hook-Up Shielded	Tan	600 V	13.5 AWG	41	30 AWG	1000 ft	304.8 m
ALPHA WIRE 3131441 TN002	Copper Nickel Coated	UL Style 5196	0.136 in	3.45 mm	152.4 m	500 '	-55 °C	250 °C	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	0.005 in	0.13 mm	Hook-Up Shielded	Tan	600 V	13.5 AWG	41	30 AWG
