LFB21 Series

Manufacturer: Murata Power Solutions Inc.

Catalog

FILTER CER BANDPASS 5.12GHZ SMD

Part	Bandwidth	Filter Type	Height (Max)	Height (Max) [Max]	Package / Case	Package / Case	Insertion Loss	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency	Height (Max) [Max] [z]	Height (Max) [Max] [z]

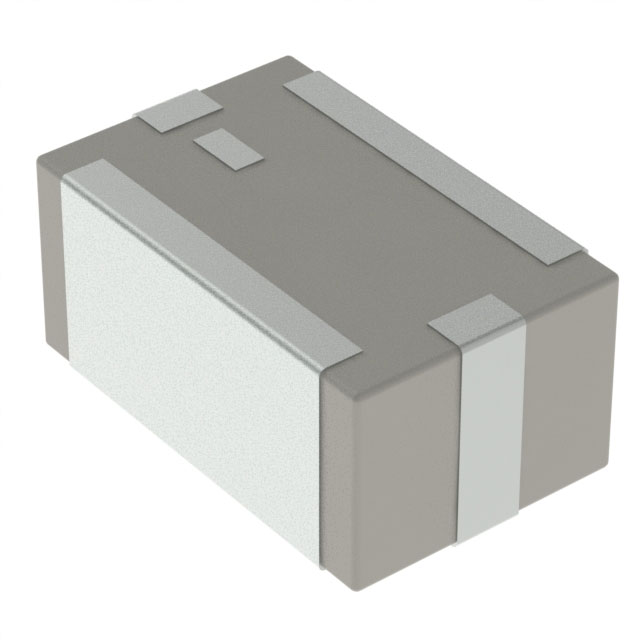

Murata Power Solutions Inc. LFB215G12SG8A178	225 MHz	Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead	1.5 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	5.12 GHz
Murata Power Solutions Inc. LFB212G45SG8A143	50 MHz	Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead	2.7 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.45 GHz
Murata Power Solutions Inc. LFB215G12SG8A183	225 MHz	Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead	1.5 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	5.12 GHz

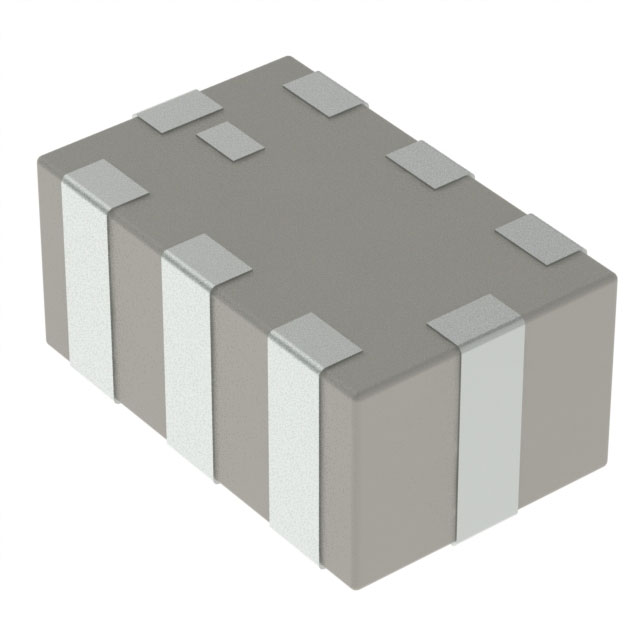

Murata Power Solutions Inc. LFB212G45BA1B763	50 MHz	Band Pass			0805 (2012 Metric)	8 Leads	3.5 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.45 GHz	1 mm	0.039 in
Murata Power Solutions Inc. LFB213G60SG8B831	300 MHz	Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead	1.5 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	3.6 GHz
Murata Power Solutions Inc. LFB212G45SG8A131		Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead		Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.45 GHz
Murata Power Solutions Inc. LFB212G45BA1A234	50 MHz	Band Pass			0805 (2012 Metric)	8 Leads	3.5 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.45 GHz	1 mm	0.039 in
Murata Power Solutions Inc. LFB212G45SG8A125		Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead		Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.45 GHz
Murata Power Solutions Inc. LFB212G45BA1B759	50 MHz	Band Pass			0805 (2012 Metric)	8 Leads	3.5 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.45 GHz	1 mm	0.039 in
Murata Power Solutions Inc. LFB212G49SG8B830	195 MHz	Band Pass	1.05 mm	0.041 in	0805 (2012 Metric)	4 Lead	2.4 dB	Surface Mount	2 mm	0.079 in	0.049 in	1.25 mm	2.49 GHz
