EX-13 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

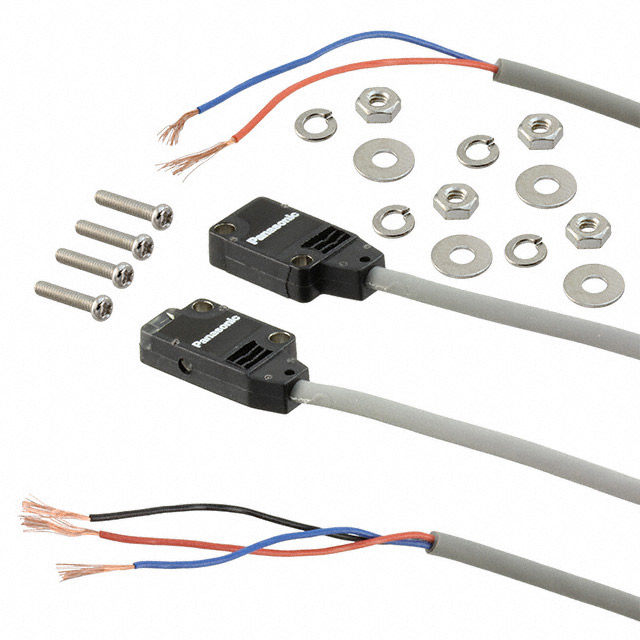

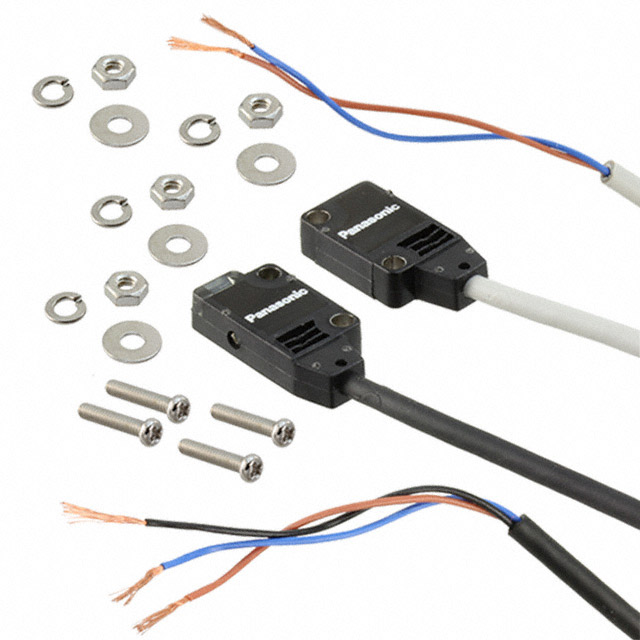

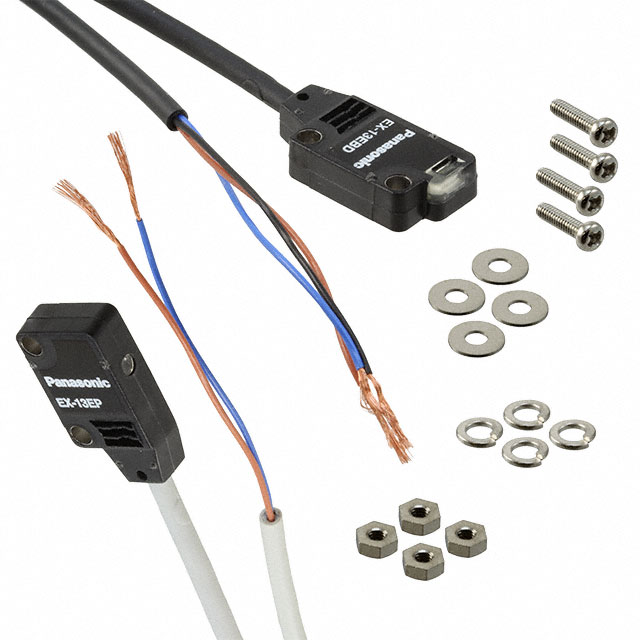

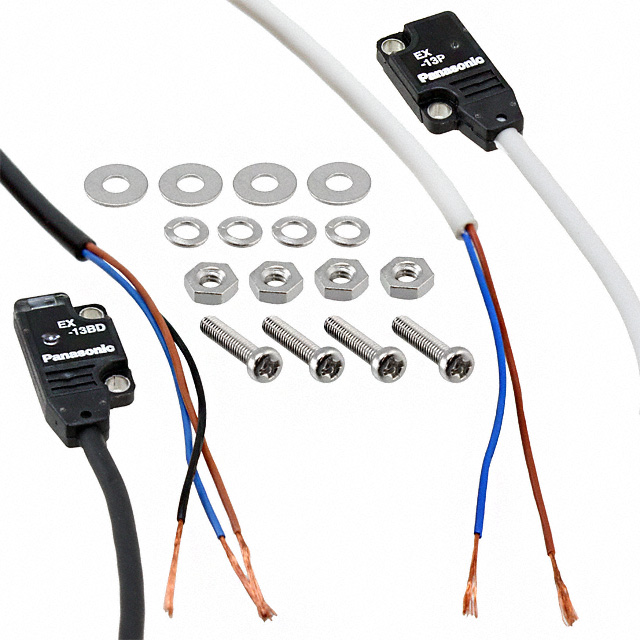

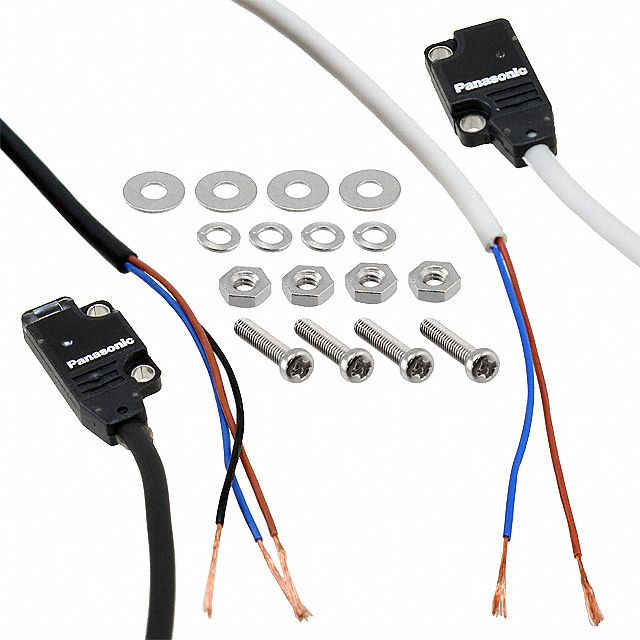

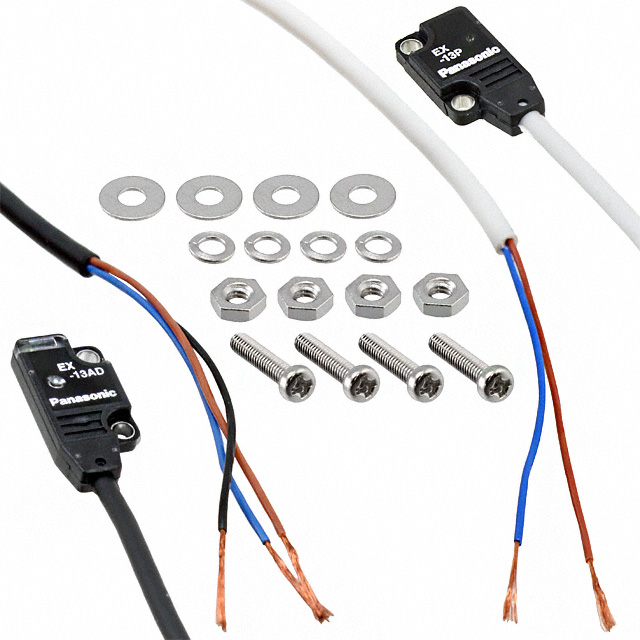

SENSOR THROUGH-BEAM 500MM NPN
| Part | Connection Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Cable Length | Cable Length | Operating Temperature [Max] | Operating Temperature [Min] | Sensing Distance | Sensing Distance | Ingress Protection | Response Time | Sensing Method | Light Source | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Light-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Dark-ON |
Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Light-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | PNP - Open Collector/Light-ON |
Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 118.1 in | 3000 mm | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Light-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 196.85 in | 5 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Light-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Dark-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Light-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Dark-ON |
 Panasonic Industrial Automation Sales | Cable | 12 V | 24 V | 78.74 in | 2 m | 55 °C | -25 °C | 19.685 in | 50 cm | IP67 | 500 µs | Through-Beam | Red LED | NPN - Open Collector/Light-ON |
