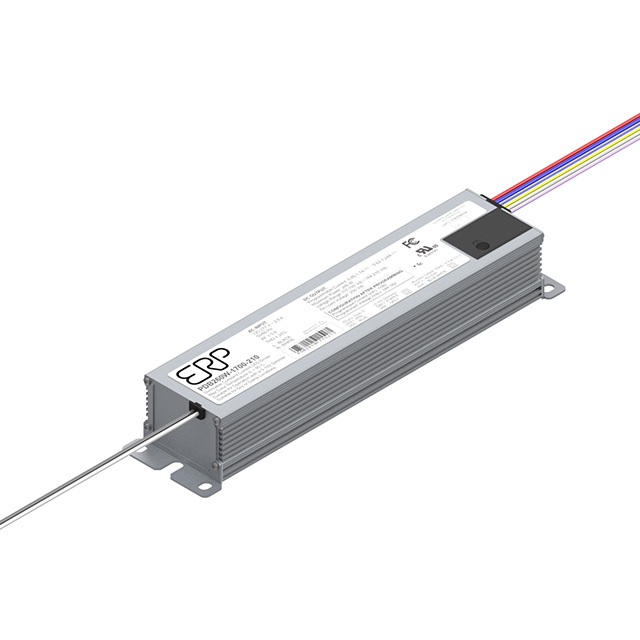

PDB260W Series

Catalog

LED DRIVER CC AC/DC 120-277V 430

Part	Mounting Type	Termination Style	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Operating Temperature	Features	Voltage - Input (Max) [Max]	Efficiency	Ratings	Power (Watts)	Topology	Number of Outputs	Voltage - Output [Min]	Voltage - Output [Max]	Current - Output (Max)	Current - Output (Max)	Dimming	Approval Agency	Current - Output (Max)
ERP Power, LLC PDB260W-0860-400	Chassis Mount	Wire Leads	120 VAC	1.52 in	2 in	38.6 mm	240.5 mm	50.8 mm	9.47 in	Constant Current	194 °F	OCP OTP SCP	277 VAC	93 %	IP66	260 Watts	AC DC Converter	2	228 V 304 V	300 V 400 V	650 mA	860 mA	Analog	CB CE cULus
ERP Power, LLC PDB260W-1300-280	Chassis Mount	Wire Leads	120 VAC	1.52 in	2 in	38.6 mm	240.5 mm	50.8 mm	9.47 in	Constant Current	194 °F	OCP OTP SCP	277 VAC	93 %	IP66	260 Watts	AC DC Converter	2	152 V 213 V	200 VDC 280 V		930 mA	Analog	CB CE cULus	1.3 A
ERP Power, LLC PDB260W-1700-210	Chassis Mount	Wire Leads	120 VAC	1.52 in	2 in	38.6 mm	240.5 mm	50.8 mm	9.47 in	Constant Current		OCP OTP SCP	277 VAC	93 %	IP66	260 Watts	AC DC Converter	1	114 V 160 V	150 V 210 V			Analog	CB CE cULus	1.24 A 1.7 A
