G52LFC-P Series
Manufacturer: ODU
Beta
⌘K

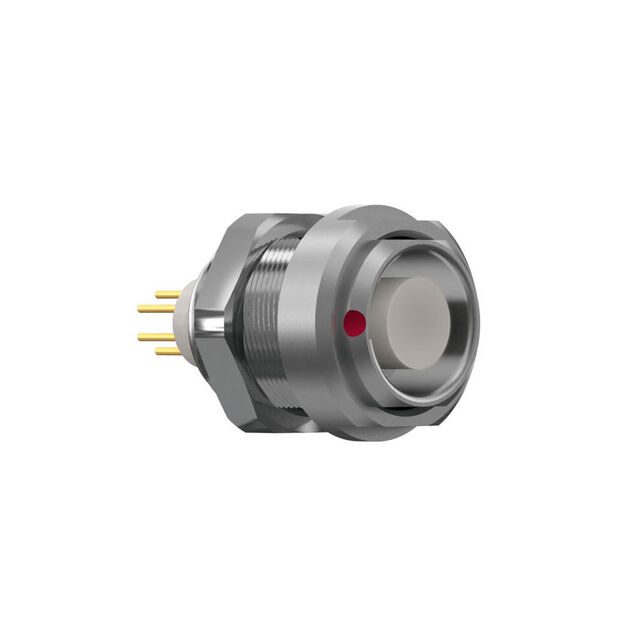

ODU MINI-SNAP RECEPT, STY 5, SZ
| Part | Primary Material | Number of Positions | Contact Material | Applications | Voltage Rating | Features | Shell Material | Shell Finish | Contact Finish - Mating | Color | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Connector Type | Shielding | Orientation | Shell Size - Insert [custom] | Ingress Protection | Fastening Type | Insert Material | Mounting Feature | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | 12 | Brass | Industrial Medical Military Testing Equipment & Measurement | 400 V | Ground | Brass | Chrome over Nickel | Gold | Silver | 120 °C | -40 C | 7.5 A | Receptacle Female Sockets | Unshielded | F | 2 | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Bulkhead - Front or Rear Side Nut | Panel Mount | ||
Metal | 4 | Brass | Industrial Medical Military Testing Equipment & Measurement | 650 V | Ground | Brass | Chrome over Nickel | Gold | Silver | 120 °C | -40 C | 12 Amps | Receptacle Female Sockets | Unshielded | F | 2 | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Bulkhead - Front or Rear Side Nut | Panel Mount Through Hole | Solder | |
Metal | 14 | Brass | Industrial Medical Military Testing Equipment & Measurement | 400 V | Ground | Brass | Chrome over Nickel | Gold | Silver | 120 °C | -40 C | 6 A | Receptacle Female Sockets | Unshielded | F | 2 | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Bulkhead - Front or Rear Side Nut | Panel Mount Through Hole | Solder | |
Metal | 12 | Brass | Industrial Medical Military Testing Equipment & Measurement | 450 V | Ground | Brass | Chrome over Nickel | Gold | Silver | 120 °C | -40 C | 6 A | Receptacle Female Sockets | Unshielded | F | 2 | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Bulkhead - Front or Rear Side Nut | Panel Mount Through Hole | Solder | |
Metal | 12 | Brass | Industrial Medical Military Testing Equipment & Measurement | 450 V | Ground | Brass | Chrome over Nickel | Gold | Silver | 120 °C | -40 C | 6 A | Receptacle Female Sockets | Unshielded | F | 2 | IP50 - Dust Protected | Push-Pull | Polyetheretherketone (PEEK) | Bulkhead - Front or Rear Side Nut | Panel Mount Through Hole | Solder |
