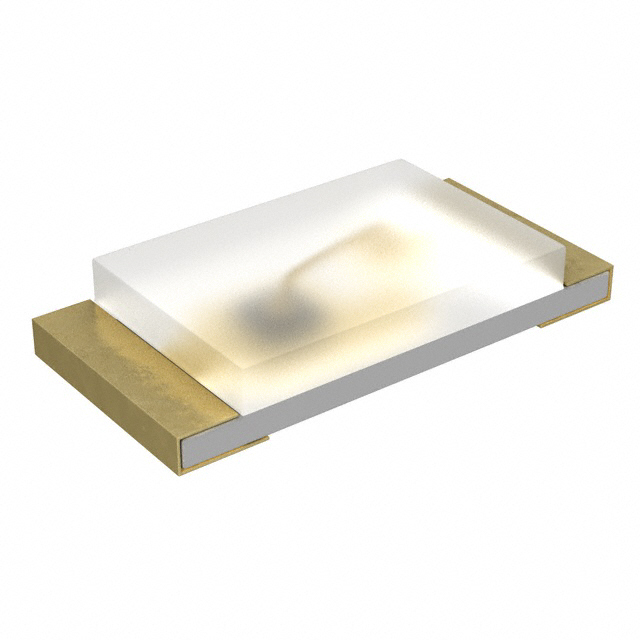

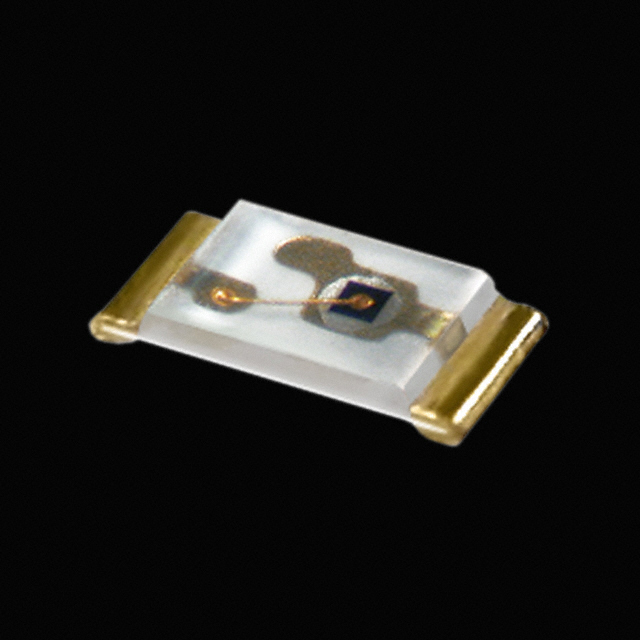

APG1608 Series

Catalog

LED GREEN CLEAR CHIP SMD

Part	Package / Case	Package / Case	Wavelength - Peak	Lens Transparency	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Current - Test	Lens Size [y]	Lens Size [x]	Lens Color	Millicandela Rating	Height (Max) [Max] [z]	Color	Mounting Type	Viewing Angle	Lens Style	Supplier Device Package	Configuration
Kingbright APG1608ZGC	1608 Metric	0603	515 nm	Clear	3.3 V	1.6 mm	0.8 mm	525 nm	20 mA	0.8 mm	1.2 mm	Colorless	400 mcd	0.28 mm	Green	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608SURKC/T	1608 Metric	0603	645 nm	Clear	2 V	1.6 mm	0.8 mm	630 nm	20 mA	0.8 mm	1.2 mm	Colorless	110 mcd	0.28 mm	Red	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608QBC/E	1608 Metric	0603	468 nm	Clear	3.3 V	1.6 mm	0.8 mm	470 nm	20 mA	0.8 mm	1.2 mm	Colorless	120 mcd	0.28 mm	Blue	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608VGC/A	1608 Metric	0603	520 nm	Clear	3.2 V	1.6 mm	0.8 mm	525 nm	20 mA	0.8 mm	1.2 mm	Colorless	200 mcd	0.28 mm	Green	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608SYKC/T	1608 Metric	0603	590 nm	Clear	2.05 V	1.6 mm	0.8 mm	590 nm	20 mA	0.8 mm	1.2 mm	Colorless	120 mcd	0.28 mm	Yellow	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608SEKC/T	1608 Metric	0603	610 nm	Clear	2.05 V	1.6 mm	0.8 mm	601 nm	20 mA	0.8 mm	1.2 mm	Colorless	100 mcd	0.28 mm		Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608PBC/A	1608 Metric	0603	468 nm	Clear	3.2 V	1.6 mm	0.8 mm	470 nm	20 mA	0.8 mm	1.2 mm	Colorless	35 mcd	0.28 mm	Blue	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard

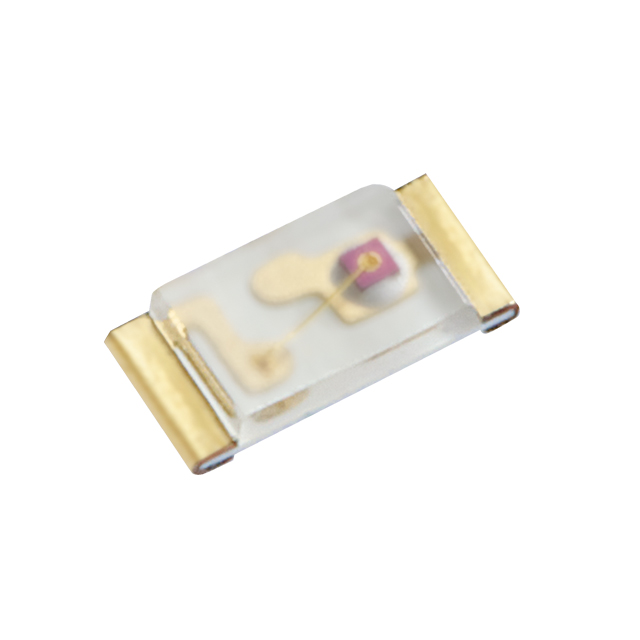

Kingbright APG1608ZGCK	1608 Metric	0603	515 nm	Clear	3.3 V	1.6 mm	0.8 mm	525 nm	20 mA	0.8 mm	1.2 mm	Colorless	400 mcd	0.28 mm	Green	Surface Mount	130 °	Rectangle with Flat Top		Independent
Kingbright APG1608CGKC/T	1608 Metric	0603		Clear	2.1 V	1.6 mm	0.8 mm	570 nm	20 mA	0.8 mm	1.2 mm	Colorless	50 mcd	0.28 mm	Green	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
Kingbright APG1608QBC/D	1608 Metric	0603	460 nm	Clear	3.3 V	1.6 mm	0.8 mm	465 nm	20 mA	0.8 mm	1.2 mm	Colorless	100 mcd	0.28 mm	Blue	Surface Mount	120 °	Rectangle with Flat Top	Chip LED	Standard
