SC-03 Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 500UH, THD

Part	Height (Max) [diameter]	Height (Max) [diameter]	Number of Lines	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Filter Type	Inductance @ Frequency	Voltage Rating - AC	Package / Case	Mounting Type	Voltage Rating - DC	Height (Max) [Max] [z]	Height (Max)	Size / Dimension [x]	DC Resistance (DCR) (Max)	Height (Max) [z]	Height (Max) [z]

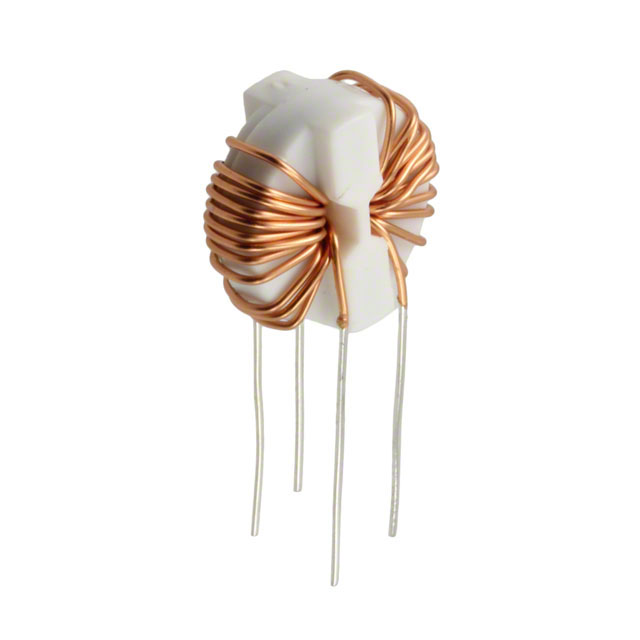

KEMET SC-03-05GS	0.591 in	15 mm	2	3 A	45 mOhm	8.5 mm	0.591 in	0.335 in	15 mm	-40 C	105 ░C	Power Line	100 kHz 500 µH	250 V	Vertical No Base 4 PC Pin	Through Hole	250 V
KEMET SC-03-10GJ			2	3 A				0.669 " 17 mm		-40 C	120 °C	Power Line	1 mH	250 V	Vertical 4 PC Pin	Through Hole	250 V	0.787 in	20 mm	0.689 in 17.5 mm	40 mOhm

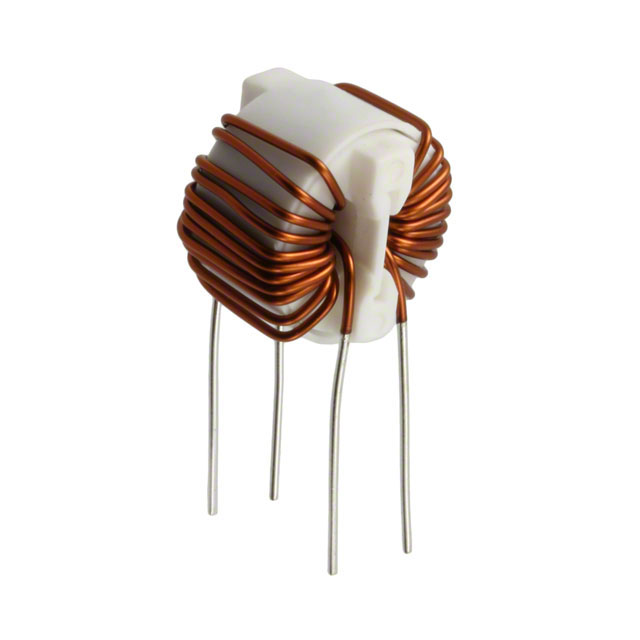

KEMET SC-03-06G			2	3 A	30 mOhm	14 mm	0.689 in	0.551 in	17.5 mm	-40 C	105 ░C	Power Line	600 µH	250 V	Vertical No Base 4 PC Pin	Through Hole	250 V					17.5 mm	0.689 in
KEMET SC-03-E900			2	3 A	130 mOhm		0.925 in		23.5 mm	-40 C	120 °C	Power Line	9 mH	250 V	Vertical No Base 4 PC Pin	Through Hole	250 V	0.925 in				23.5 mm
