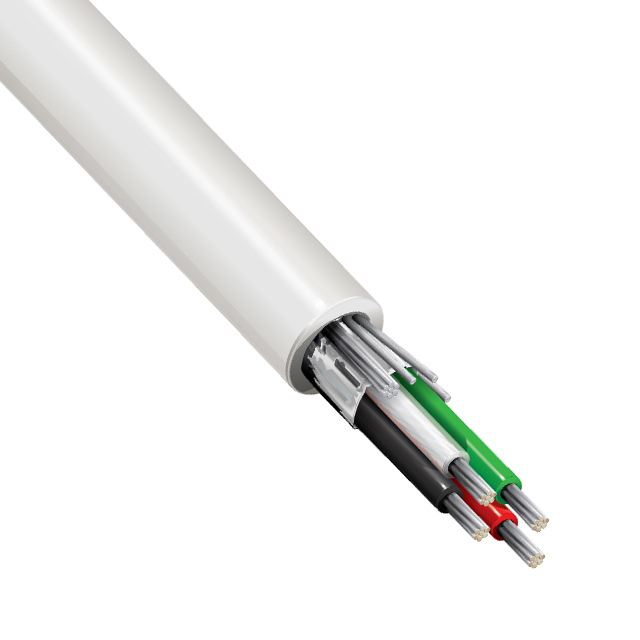

8729 Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 4CON 22AWG WHT SHLD 500'
| Part | Shield Coverage | Shield Material | Conductor Material | Voltage | Number of Conductors | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Features | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Jacket (Insulation) Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Tinned | 300 VDC | 4 | White | 34 AWG | 19 | Audio Control Instrumentation | Drain Wire | Foil | 1.295 mm | 0.051 " | Polyethylene (PE) | Multi-Conductor | -40 C | 75 ░C | 152.4 m | 500 ft | 6.53 mm | 0.257 in | 22 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2094 |
Belden Inc. | 100 % | Aluminum | Copper Tinned | 300 VDC | 4 | White | 34 AWG | 19 | Audio Control Instrumentation | Drain Wire | Foil | 1.295 mm | 0.051 " | Polyethylene (PE) | Multi-Conductor | -40 C | 75 ░C | 152.4 m | 500 ft | 6.53 mm | 0.257 in | 22 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2094 |
Belden Inc. | 100 % | Aluminum | Copper Tinned | 300 VDC | 4 | White | 34 AWG | 19 | Audio Control Instrumentation | Drain Wire | Foil | 1.295 mm | 0.051 " | Polyethylene (PE) | Multi-Conductor | -40 C | 75 ░C | 304.8 m | 1000 ft | 6.53 mm | 0.257 in | 22 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2094 |
