B3S Series

Catalog

SWITCH, 6X6X4.3MM, SEALED, 1.57N

Part	Mechanical Life	Switch Travel	Actuator Height off PCB, Vertical [z]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Actuator Orientation	Mounting Type	Operating Force	Actuator Type	Illumination	Ingress Protection	Switch Function	Contact Rating @ Voltage	Circuit

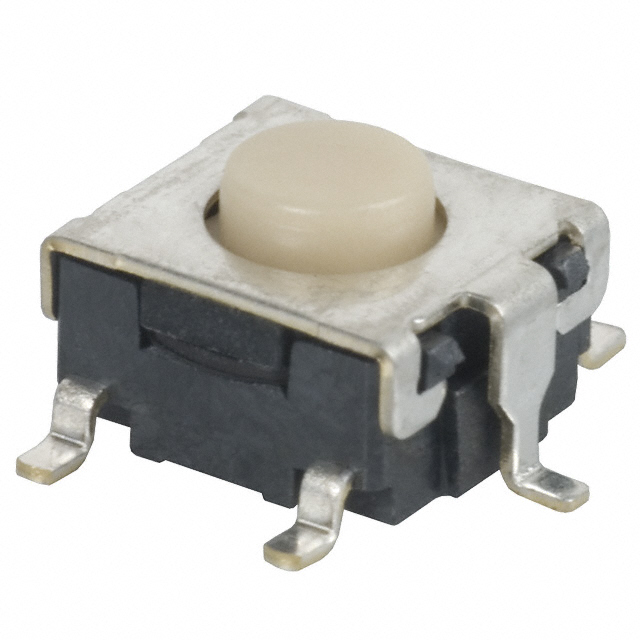

Omron Electronics Inc-EMC Div B3S-1100	500000 Cycles	0.25 mm	4.3 mm	Gull Wing	-25 °C	70 °C	Grounding Pin Sealed - Fully	Top Actuated	Surface Mount	160 gf	Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	0.05 A 24 VDC	SPST-NO

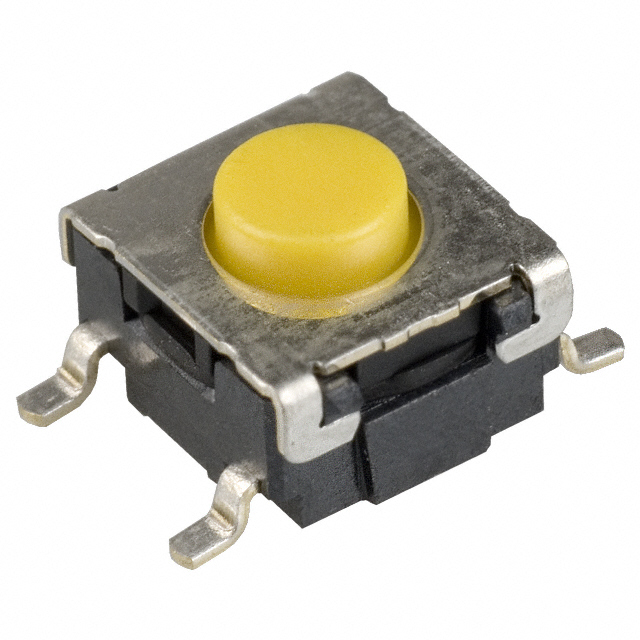

Omron Electronics Inc-EMC Div B3S-1002	300000 Cycles	0.25 mm	4.3 mm	Gull Wing	-25 °C	70 °C	Sealed - Fully	Top Actuated	Surface Mount		Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	0.05 A 24 VDC	SPST-NO

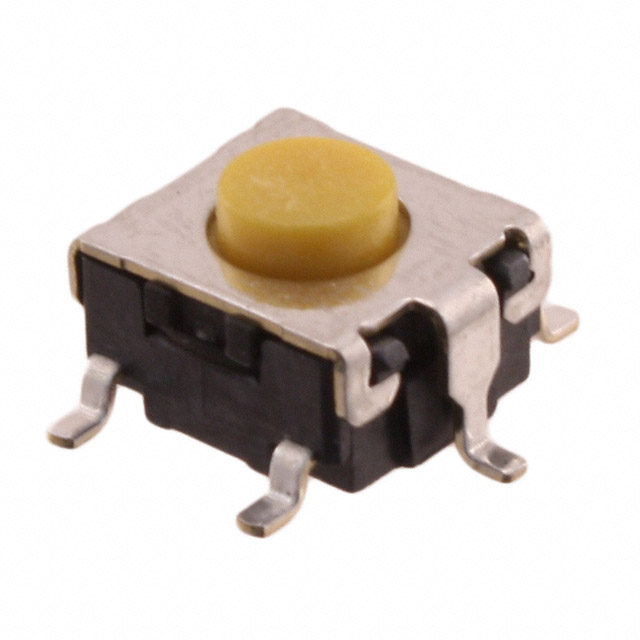

Omron Electronics Inc-EMC Div B3S-1102P	300000 Cycles	0.25 mm	4.3 mm	Gull Wing	-25 °C	70 °C	Grounding Pin Sealed - Fully	Top Actuated	Surface Mount		Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	0.05 A 24 VDC	SPST-NO
Omron Electronics Inc-EMC Div B3S-1102	300000 Cycles	0.25 mm	4.3 mm	Gull Wing	-25 °C	70 °C	Grounding Pin Sealed - Fully	Top Actuated	Surface Mount		Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	0.05 A 24 VDC	SPST-NO

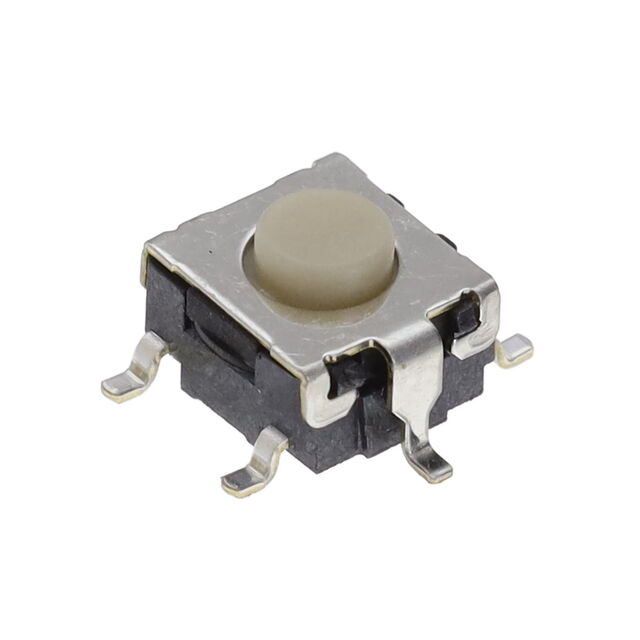

Omron Electronics Inc-EMC Div B3S-1100P	500000 Cycles	0.25 mm	4.3 mm	Gull Wing	-25 °C	70 °C	Grounding Pin Sealed - Fully	Top Actuated	Surface Mount	160 gf	Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	Off-Mom	0.05 A 24 VDC	SPST-NO
