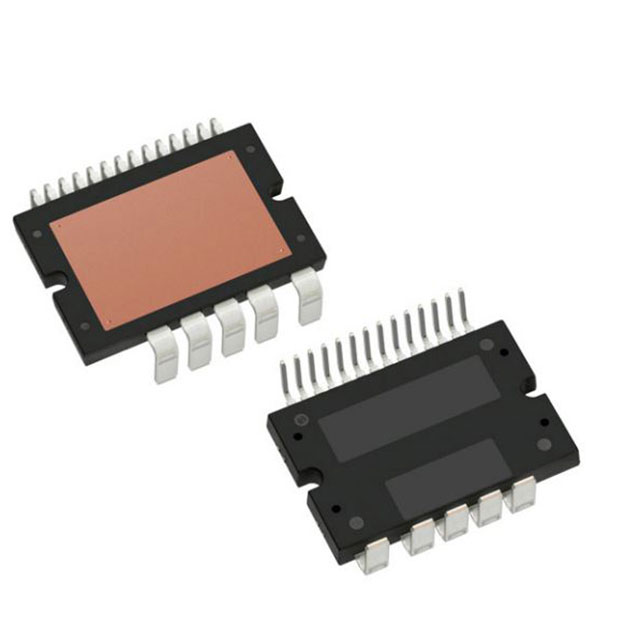

3-Phase Inverter Automotive Power Module, APM19
Key Features
• Three−Phase Inverter Bridge for Variable Speed Motor Drive
• RC Snubber for Low EMI
• Current Sensing and Temperature Sensing
• Electrically Isolated DBC Substrate for Low Thermal Resistance
• Compact Design for Low Total Module Resistance
• Module Serialization for Full Traceability
• This Device is Pb−free, RoHS and UL94V-0 Compliant
• PPAP Capable
• AEC Qualified − AQG324
Description
AI
The NXV08V080DB1 is an 80 V low Rds(on) automotive qualified power integrated module featuring a 3-phase MOSFET bridge optimized for Automotive 48V Motor inverter system, It includes a precision shunt resistor for current sensing, an NTC for temperature sensing, and an RC snubber circuit. The module utilizes ON’s trench MOSFET technology and it is designed to provide a very compact solution for the system. The Power module is 100% lead free, RoHs and UL compliant.
