KX14-80K Series

Catalog

CONN RCPT 80POS SMD GOLD

Part	Number of Rows [custom]	Mounting Type	Number of Positions	Connector Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
JAE Electronics KX14-80K8D-E650E	2	Surface Mount	80	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	0.1 Ám	4 Áin	Gold	Board Guide Solder Retention	0.376 in	9.55 mm
JAE Electronics KX14-80K2D-E1000E	2	Surface Mount	80	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	0.1 Ám	4 Áin	Gold	Board Guide Solder Retention	0.14 in	3.55 mm	4 mm 5 mm 6 mm

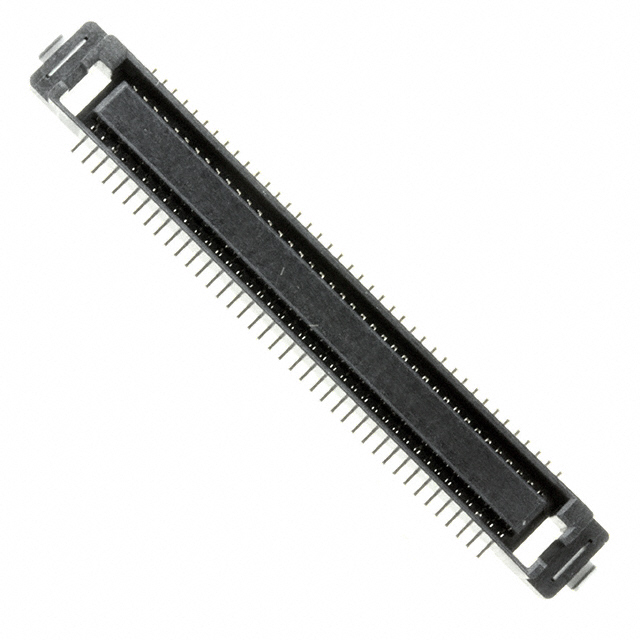

JAE Electronics KX14-80K2DE	2	Surface Mount	80	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	0.1 Ám	4 Áin	Gold	Board Guide Solder Retention	0.14 in	3.55 mm	4 mm 5 mm 6 mm

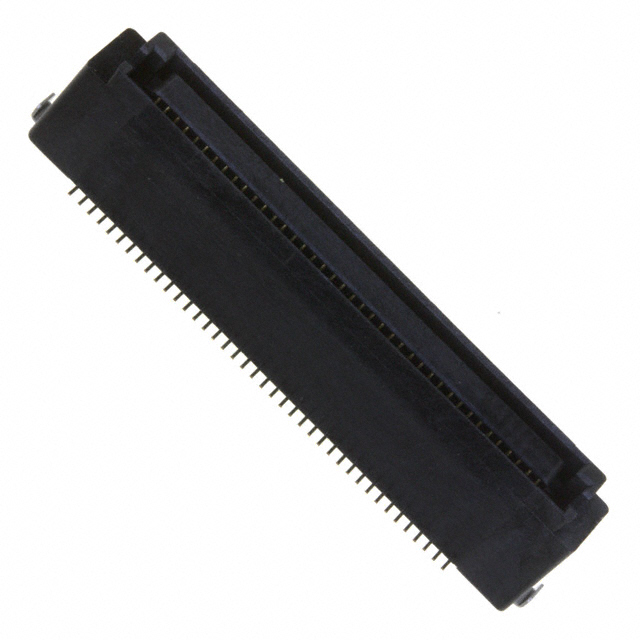

JAE Electronics KX14-80K8DE	2	Surface Mount	80	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	0.1 Ám	4 Áin	Gold	Board Guide Solder Retention	0.376 in	9.55 mm

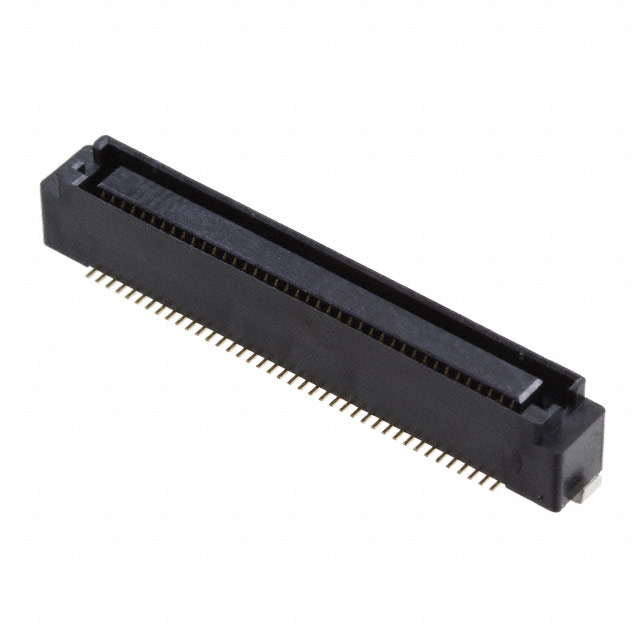

JAE Electronics KX14-80K5DE	2	Surface Mount	80	Receptacle Outer Shroud Contacts	0.8 mm	0.031 in	0.1 Ám	4 Áin	Gold	Board Guide Solder Retention	0.258 in	6.55 mm	7 mm 8 mm 9 mm
