LRG6SP Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

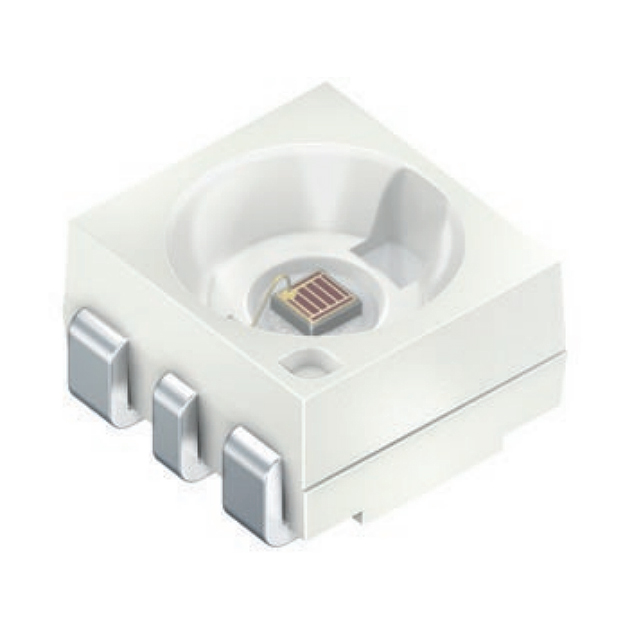

LED TOPLED RED 623NM SMD
| Part | Thermal Resistance of Package | Luminous Flux @ Current/Temperature | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Mounting Type | Temperature - Test | Color | Wavelength | Viewing Angle | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Test | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 50 °C/W | 23 lm | 2.1 mm | 0.083 in | 6-SMD | Surface Mount | 25 °C | Red | 623 nm | 120 ° | 2.2 V | 75 lm/W | 140 mA | 200 mA | 0.118 in | 0.13 " | 3.3 mm | 3 mm |
