CT1102S2 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Switch Function	Actuator Type	Mounting Type	Circuit	Actuator Orientation	Termination Style	Actuator Height off PCB, Vertical	Operating Force	Contact Rating @ Voltage	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]
CIT Relay and Switch CT1102S2.8F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Plunger for Cap	Through Hole	SPST-NO	Top Actuated	PC Pin	7.5 mm	100 gf	0.05 A 50 VDC	Non-Illuminated	85 °C	-40 C	6 mm	6 mm
CIT Relay and Switch CT1102S2.4F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Plunger for Cap	Through Hole	SPST-NO	Top Actuated	PC Pin	7.5 mm	260 gf	0.05 A 50 VDC	Non-Illuminated	85 °C	-40 C	6 mm	6 mm
CIT Relay and Switch CT1102S2.8F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Plunger for Cap	Through Hole	SPST-NO	Top Actuated	PC Pin	7.5 mm	260 gf	0.05 A 50 VDC	Non-Illuminated	85 °C	-40 C	6 mm	6 mm
CIT Relay and Switch CT1102S2.4F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Plunger for Cap	Through Hole	SPST-NO	Top Actuated	PC Pin	7.5 mm	100 gf	0.05 A 50 VDC	Non-Illuminated	85 °C	-40 C	6 mm	6 mm

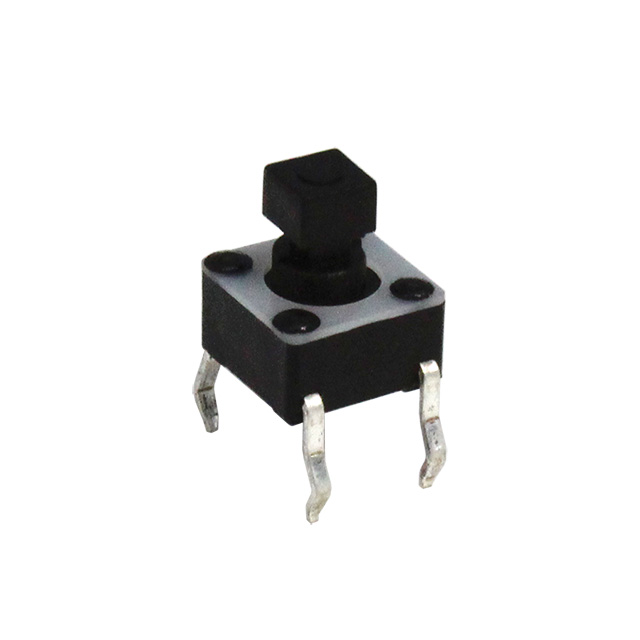

CIT Relay and Switch CT1102S2.8F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Plunger for Cap	Through Hole	SPST-NO	Top Actuated	PC Pin	7.5 mm	160 gf	0.05 A 50 VDC	Non-Illuminated	85 °C	-40 C	6 mm	6 mm

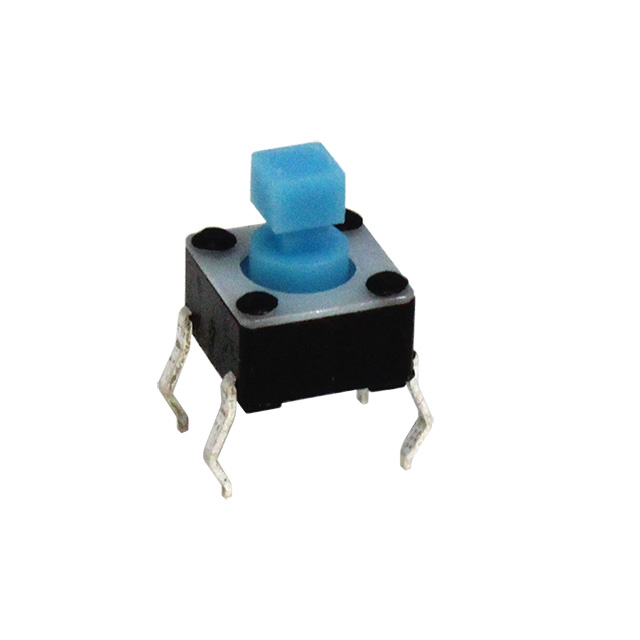

CIT Relay and Switch CT1102S2.4F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Plunger for Cap	Through Hole	SPST-NO	Top Actuated	PC Pin	7.5 mm	160 gf	0.05 A 50 VDC	Non-Illuminated	85 °C	-40 C	6 mm	6 mm
