AUB0924 Series
Manufacturer: Delta Electronics
Beta
⌘K

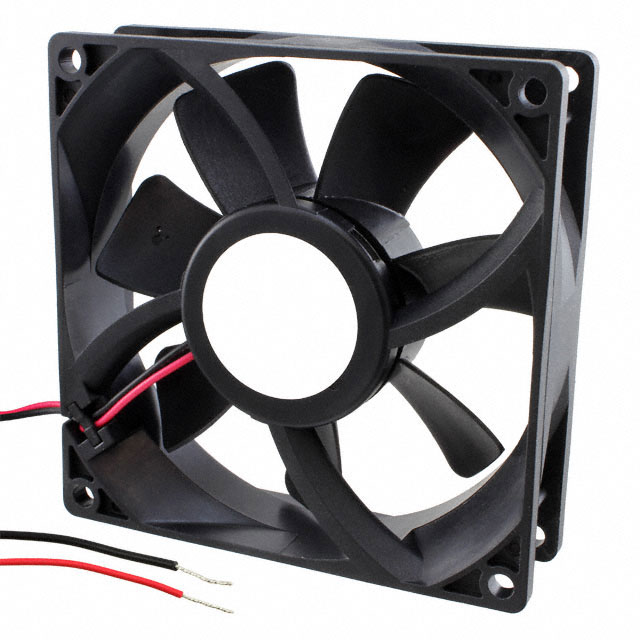

FAN AXIAL 92X25.4MM 24VDC
| Part | Lifetime @ Temp. | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Fan Type | Termination | Weight | Weight | Bearing Type | Air Flow | Air Flow | Noise | Voltage - Rated | Approval Agency | Width [y] | Power (Watts) | Static Pressure | Static Pressure | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 40 °C 50000 Hrs | Plastic | 14 VDC | 26.4 VDC | Plastic | 0.25 A | -10 °C | 60 °C | 92 mm | 92 mm | Tubeaxial | 2 Wire Leads | 121.11 g | 0.267 lb | Superflo | 81.5 CFM | 2.28 m³/min | 46 dB(A) | 24 VDC | CE CSA UL VDE | 25.4 mm | 6 W | 0.345 in H2O | 85.9 Pa | 3800 RPM |
